Shimano FD-M770 (-2695D) Deore XT Umwerfer

FD-M770 (-2695D) Deore XT Umwerfer FD Front Derailleur - Umwerfer

Shimano FD Front Derailleur - Umwerfer FD-M770 (-2695D) Deore XT Umwerfer

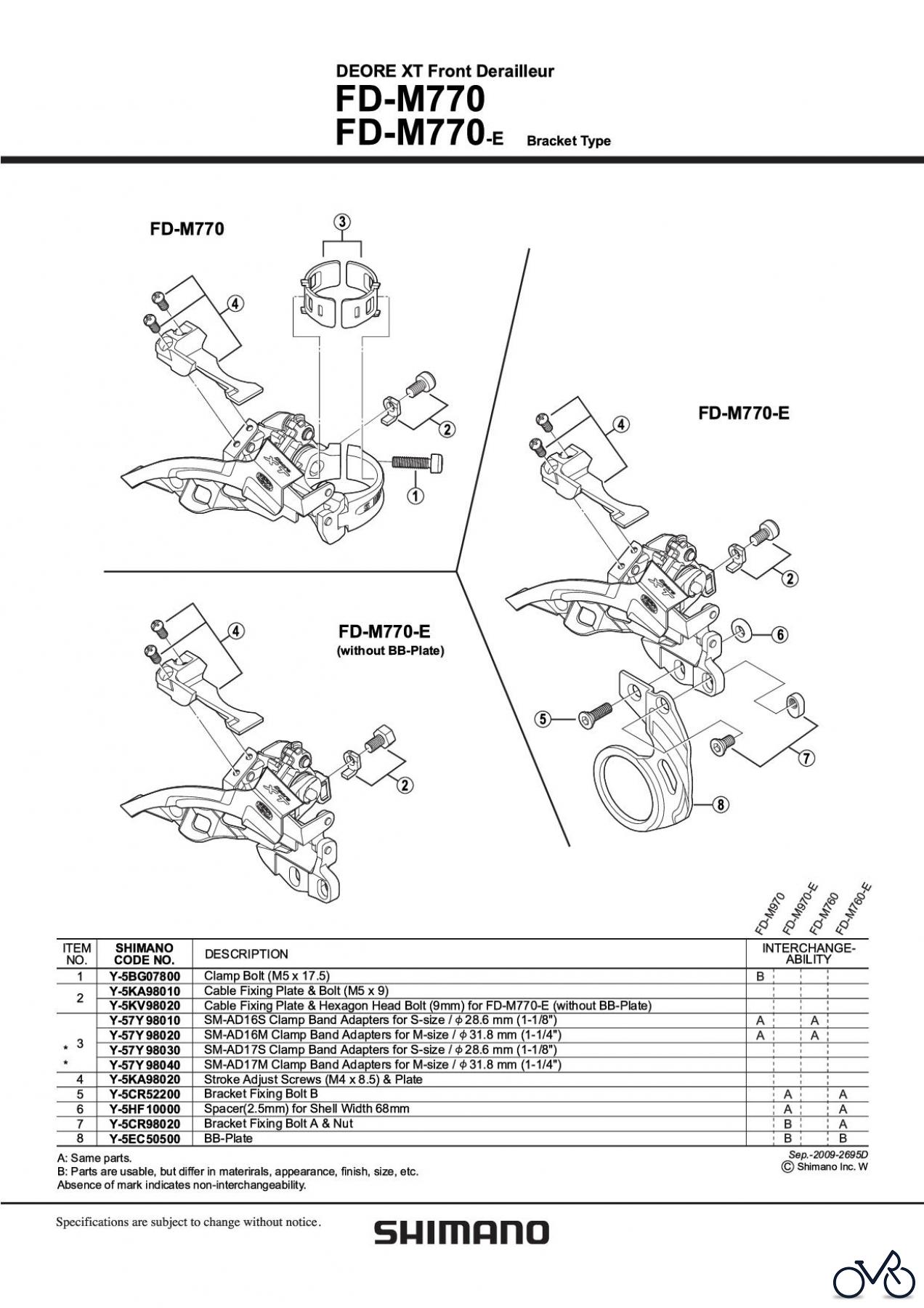

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-M770 (-2695D) Deore XT Umwerfer. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-5BG07800Klemmschraube FD-M770 M5x 17,5 mm Y5BG07800
2 Y-5KA98010Einstellschraube FD-M770 M4x 8,5 mm Y5KA98010
2 Y-5KV98020Befestigungsschraube 9 mm FD-M770-E Y5KV98020
3 Y-57Y98010SM-AD16S Clamp Band Adapters for S-size / 28.6 mm (1-1/8") Y57Y98010
3 Y-57Y98020SM-AD16M Clamp Band Adapters for M-size / 31.8 mm (1-1/4") Y57Y98020
3 Y-57Y98030SM-AD17S Clamp Band Adapters for S-size / 28.6 mm (1-1/8") Y57Y98030
3 Y-57Y98040SM-AD17M Clamp Band Adapters for M-size / 31.8 mm (1-1/4") Y57Y98040
4 Y-5KA98020Einstellschraube FD-M770 M4x 8,5 mm Y5KA98020
5 Y-5CR52200Bracket Fixing Bolt B Y5CR52200
6 Shimano Distanzring (2.5mm)Y-5HF10000Distanzring (2.5mm) Y5HF10000
7 Shimano Befestigungsschraube FD-M770, FD-M739-E,FD-M567-E,FD-M750-E,FD-MC36-EY-5CR98020Befestigungsschraube FD-M770, FD-M739-E,FD-M567-E,FD-M750-E,FD-MC36-E Y5CR98020
8 Shimano Halter für TretlagerbefestigungY-5EC50500Halter für Tretlagerbefestigung Y5EC50500
