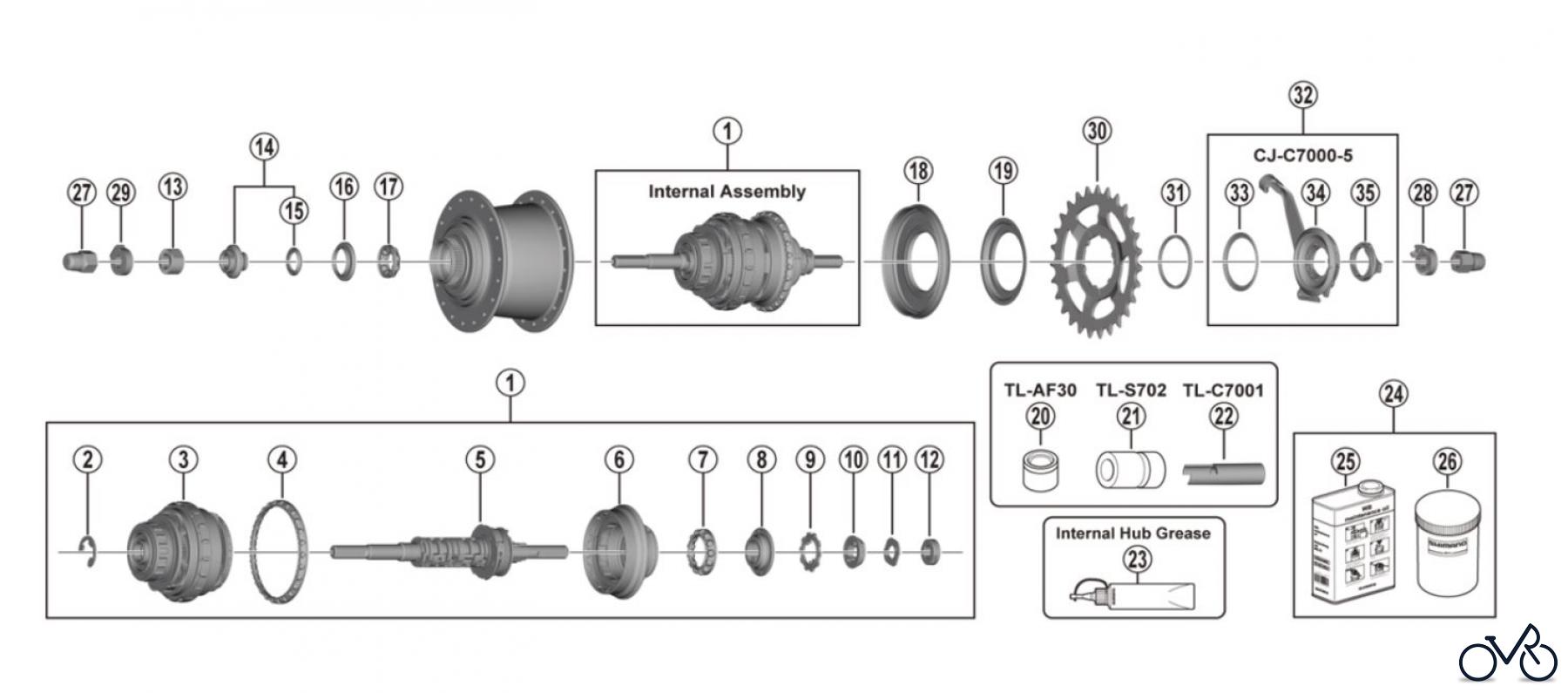

Here you will find the spare parts drawing for Shimano SG Getriebenabe /Nabenschaltung SG-C7000-5D (-4450B) Shimano NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3FJ98010	Internal Assembly (Axle Length 187 mm) Y3FJ98010
2	Y-3FF49000	Stop Ring Diameter (12 mm / 1.3 mm) A Y3FF49000
3	Y-3FF98020	Carrier Unit A Y3FF98020
4	Y-38X98050	Ball Retainer O (3/16" x 26) A A Y38X98050
5	Y-3FJ98020	Hub Axle Unit (Axle Length 187 mm) Y3FJ98020
6	Y-3FF98040	Driver Unit A Y3FF98040
7	Y-3FF98050	Ball Retainer A (7/32" x 13) A Y3FF98050
8	Y-3FJ98030	Right Hand Cone w/Seal Y3FJ98030
9	Y-31L04000	Drive Plate Y31L04000
10	Y-31L98030	Lock Washer Y31L98030
11	Y-34R09000	Joint Nut Stop Washer A Y34R09000
12	Y-35Z11000	Right Hand Serated Lock Nut (5.4 mm) A Y35Z11000
13	Y-35Z19000	Left Hand Serated Lock Nut (10.7 mm) A A Y35Z19000
14	Y-31L98040	Left Hand Cone w/Dust Cap & Seal Ring A A Y31L98040
15	Y-37710000	Seal Ring A A Y37710000
16	Y-32T08100	Left Hand Inner Dust Cap A A Y32T08100
17	Y-36U98030	Ball Retainer (7/32" x 9) A A Y36U98030
18	Y-37G98080	Right Hand Dust Cap A w/Seal A B Y37G98080
19	Y-3FF47000	Right Hand Dust Cap C A Y3FF47000
20	Y-70811000	TL-AF30 Left Hand Inner Dust Cap Installation Tool A A Y70811000
21	Y-13098022	TL-S702 Right Hand Cone Installation Tool A Y13098022
22	Y-70821000	TL-C7001 Right Hand Cone Removal Tool A Y70821000
23	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
24	Y-00298010	WB maintenance oil set A A Y00298010
25	Y-00201000	WB maintenance oil (1L) A A Y00201000
26	Y-00201100	Bottle A A Y00201100
27	Y-31414010	Cap Nut (3/8") Y31414010
28	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
28	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
28	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
28	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
29	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
29	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
29	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
29	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
30	Y-0FM24000	Sprocket Wheel 24T (CS-C7000) Y0FM24000
30	Y-0FM01000	Sprocket Wheel 27T (CS-C7000) Y0FM01000
30	Y-0FM30000	Sprocket Wheel 30T (CS-C7000) Y0FM30000
31	Y-7ZP04000	Snap Ring Y7ZP04000
32	Y-7ZP98010	CJ-C7000-5 Cassette Joint Unit Y7ZP98010
32	Y-7ZP98030	CJ-C7000-5 Cassette Joint Unit for Belt drive system Y7ZP98030
33	Y-7ZP05000	Driver Cap Y7ZP05000
34	Y-7ZP98020	CJ-C7000-5 Cassette Joint Y7ZP98020
34	Y-7ZP98040	CJ-C7000-5 Cassette Joint for Belt drive system Y7ZP98040
35	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
