Shimano FH-TY500 Freehub 7-speed

FH-TY500 Freehub 7-speed FH Free Hub - Freilaufnabe

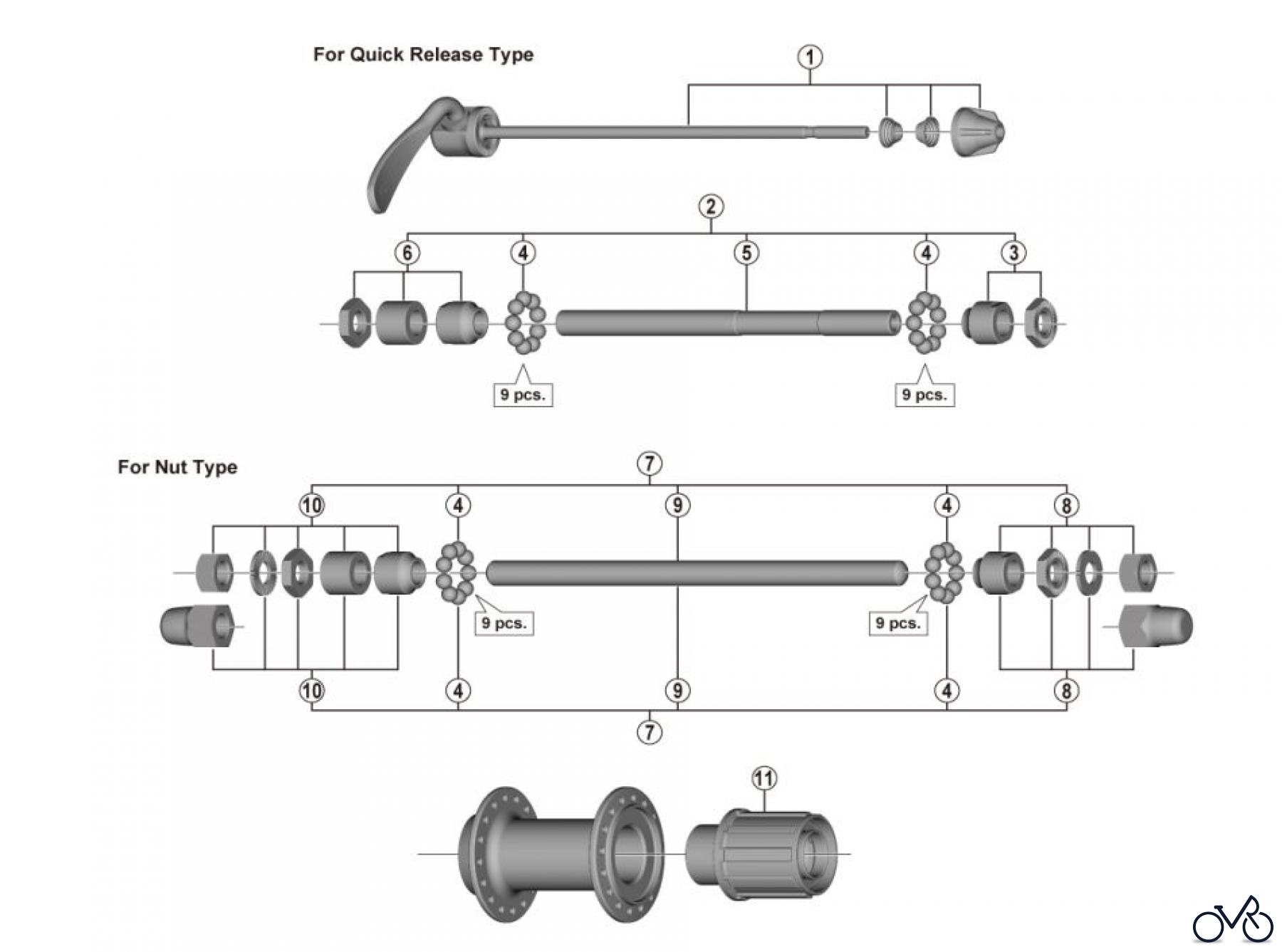

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-TY500 Freehub 7-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3F698010	Complete Quick Release 161 mm (6-11/32") Black Y3F698010
1	Y-31U98010	Complete Quick Release 166 mm (6-17/32") Black Y31U98010
1	Y-31U98020	Complete Quick Release 170 mm (6-11/16") Black Y31U98020
2	Y-3F698020	Complete Hub Axle 146 mm (5-3/4") for Quick Release Type Y3F698020
2	Y-3F698030	Complete Hub Axle 141 mm (5-9/16") for Quick Release Type Y3F698030
3	Y-3E698020	Right Hand Lock Nut Unit for Quick Release Type Y3E698020
4	Y-34T98030	Steel Ball (1/4") 18 pcs Y34T98030
5	Y-31S00010	Hub Axle M10 x 146 mm (5-3/4") for Quick Release Type Y31S00010
5	Y-3F607000	Hub Axle M10 x 141 mm (5-1/2") for Quick Release Type Y3F607000
6	Y-3F698040	Left Hand Lock Nut Unit for Quick Release Type (T=13) Y3F698040
6	Y-3F698050	Left Hand Lock Nut Unit for Quick Release Type (T=8) Y3F698050
7	Y-3F698060	Complete Hub Axle 185 mm (7-9/32") Y3F698060
7	Y-3F698070	Complete Hub Axle 180 mm (7-1/16" Y3F698070
7	Y-3F798010	Complete Hub Axle 185 mm (7-9/32") for Cap Nut Type Y3F798010
8	Y-3F698080	Right Hand Lock Nut Unit Y3F698080
8	Y-3F798020	Right Hand Lock Nut Unit for Cap Nut Type Y3F798020
9	Y-3E750000	Hub Axle M10 x 185 mm (7-9/32") Y3E750000
9	Y-3F704000	Hub Axle M10 x 180 mm (7-1/16") Y3F704000
10	Y-3F698090	Left Hand Lock Nut Unit (T=13) Y3F698090
10	Y-3F698100	Left Hand Lock Nut Unit (T=8) Y3F698100
10	Y-3F798030	Left Hand Lock Nut Unit for Cap Nut Type(T=13) Y3F798030
11	Y-3F698110	Freewheel Body Unit Y3F698110
