Shimano HB-MT200 For Disc Brake

HB-MT200 For Disc Brake HB Hub - Vordere Nabe

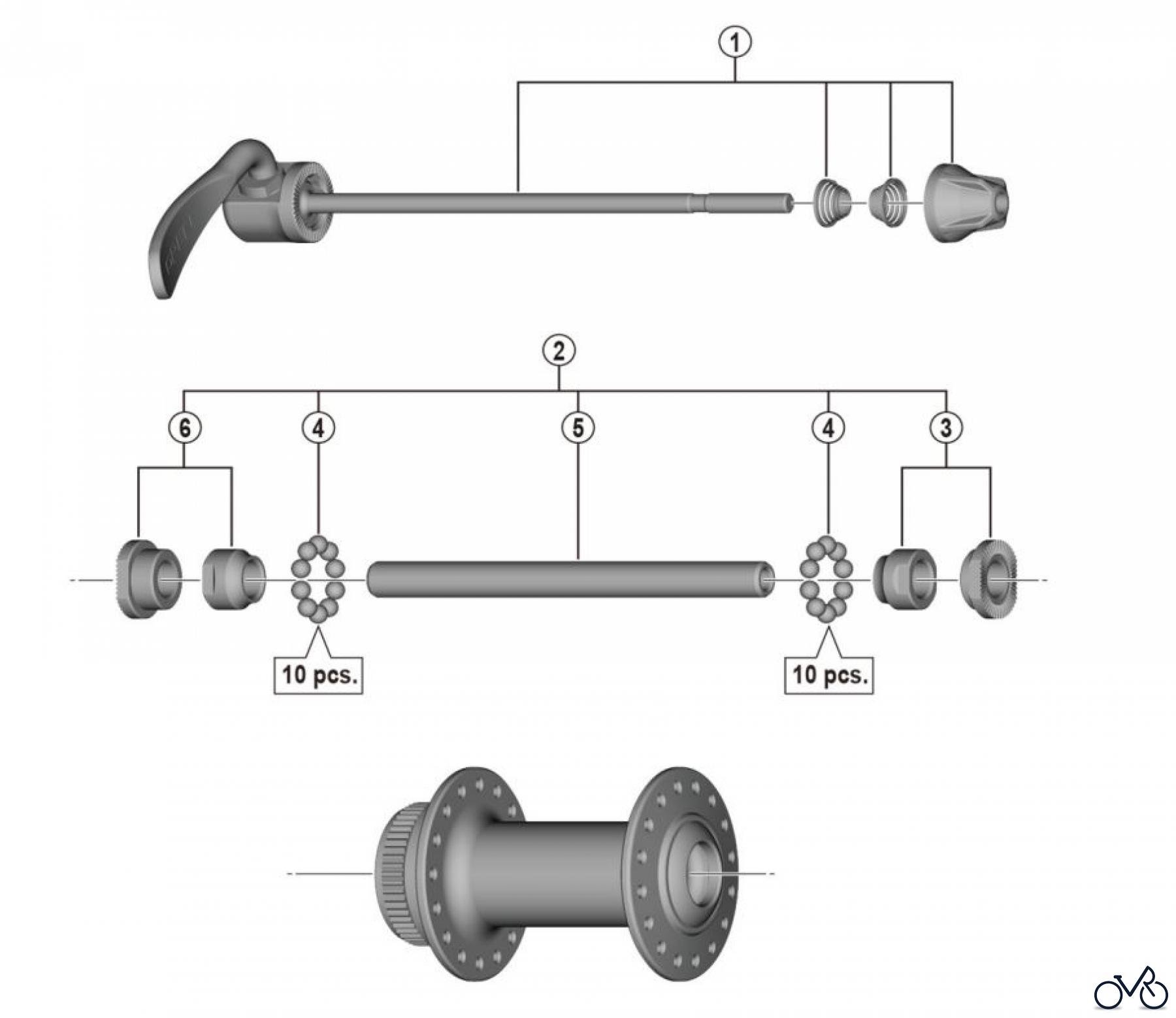

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-MT200 For Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2A398010	Complete Quick Release 133 mm (5-1/4") Y2A398010
2	Y-2A198010	Complete Hub Axle 108 mm (4-1/4") Y2A198010
3	Y-2A198020	Right Hand Lock Nut Unit Y2A198020
4	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
5	Y-25W03000	Hub Axle M10 x 108 mm (4-1/4") Y25W03000
6	Y-2A198030	Left Hand Lock Nut Unit Y2A198030
