Shimano HB-MT400-B (-436) DEORE Front Hub (For Disc Brake)

HB-MT400-B (-436) DEORE Front Hub (For Disc Brake) HB Hub - Vordere Nabe

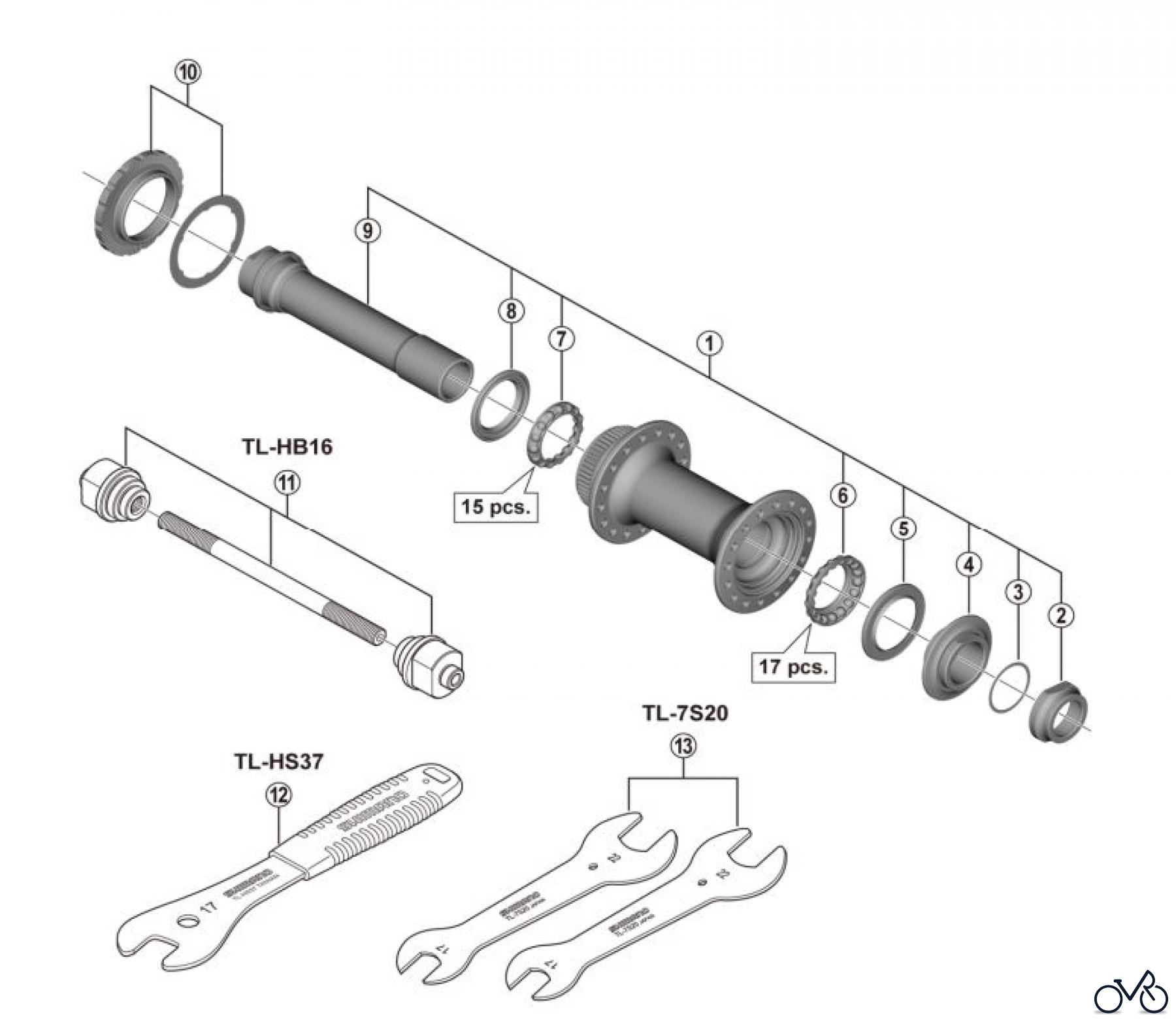

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-MT400-B (-436) DEORE Front Hub (For Disc Brake). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2CR98010	Hohlachse komplett HB-MT400-B Y2CR98010
2	Y-24612000	Achsmutter rechts Y24612000
3	Y-24613000	Justierscheibe Y24613000
4	Y-2CR98020	Konus rechts Mit Staubkappe HB-MT400 Y2CR98020
5	Y-27X15000	Dichtring für Hohlachse rechts Y27X15000
6	Y-2CR98030	Right Hand Ball Retainer (5/32" x 17) Y2CR98030
7	Y-2CR98040	Kugelring links 5/32"X15 HB-MT400 Y2CR98040
8	Y-27X14000	Dichtring für Hohlachse links Y27X14000
9	Y-2CR98050	Hohlachse ohne Zubehör HB-MT400-B Y2CR98050
10	Y-24698030	Verschlussring inkl. Dichtung Y24698030
11	Y-20W98020	Zentrierhilfe TL-HB16 Y20W98020
12	Y-23098030	Konusschlüssel TL-HS37 17 mm Y23098030
13	Y-13098900	NABENSCHLÜSSEL 17MM X 22MM 2ST Y13098900
