Shimano HB-M4050 ALIVIO Front Hub

HB-M4050 ALIVIO Front Hub HB Hub - Vordere Nabe

Shimano HB Hub - Vordere Nabe HB-M4050 ALIVIO Front Hub

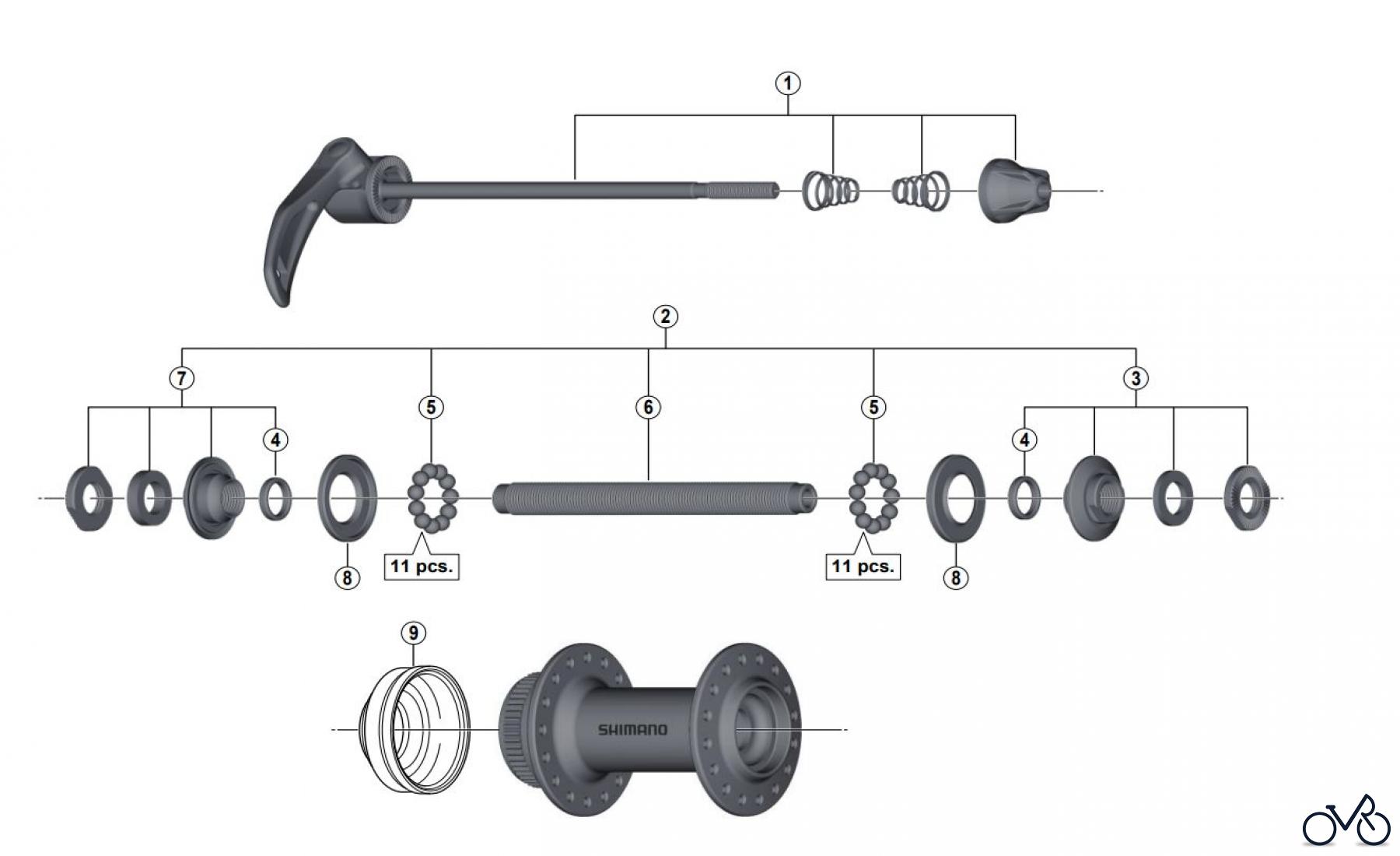

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M4050 ALIVIO Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Schnellspanner 133 mm WH-R501-FY-4SK98100Schnellspanner 133 mm WH-R501-F Y4SK98100
2 Y-29D98010Hohlachse 108 mm HB-M4050 Y29D98010
3 Shimano ACHSMUTTER-EINHEIT MIT KONUS LINKY-2TE98040ACHSMUTTER-EINHEIT MIT KONUS LINK Y2TE98040
4 Y-2T804000O-Ring Y2T804000
5 Shimano Kugel 22 StückY-4BB98030Kugel 22 Stück Y4BB98030
6 Y-25W03000Hohlachse 108 mm Y25W03000
7 Y-29D98020Achsmutterneinheit Links Y29D98020
8 Y-2TA06000Staubkappe Y2TA06000
9 Y-25Y06000Staubkappe Y25Y06000
