Shimano HB-M640 ZEE Front Hub

HB-M640 ZEE Front Hub HB Hub - Vordere Nabe

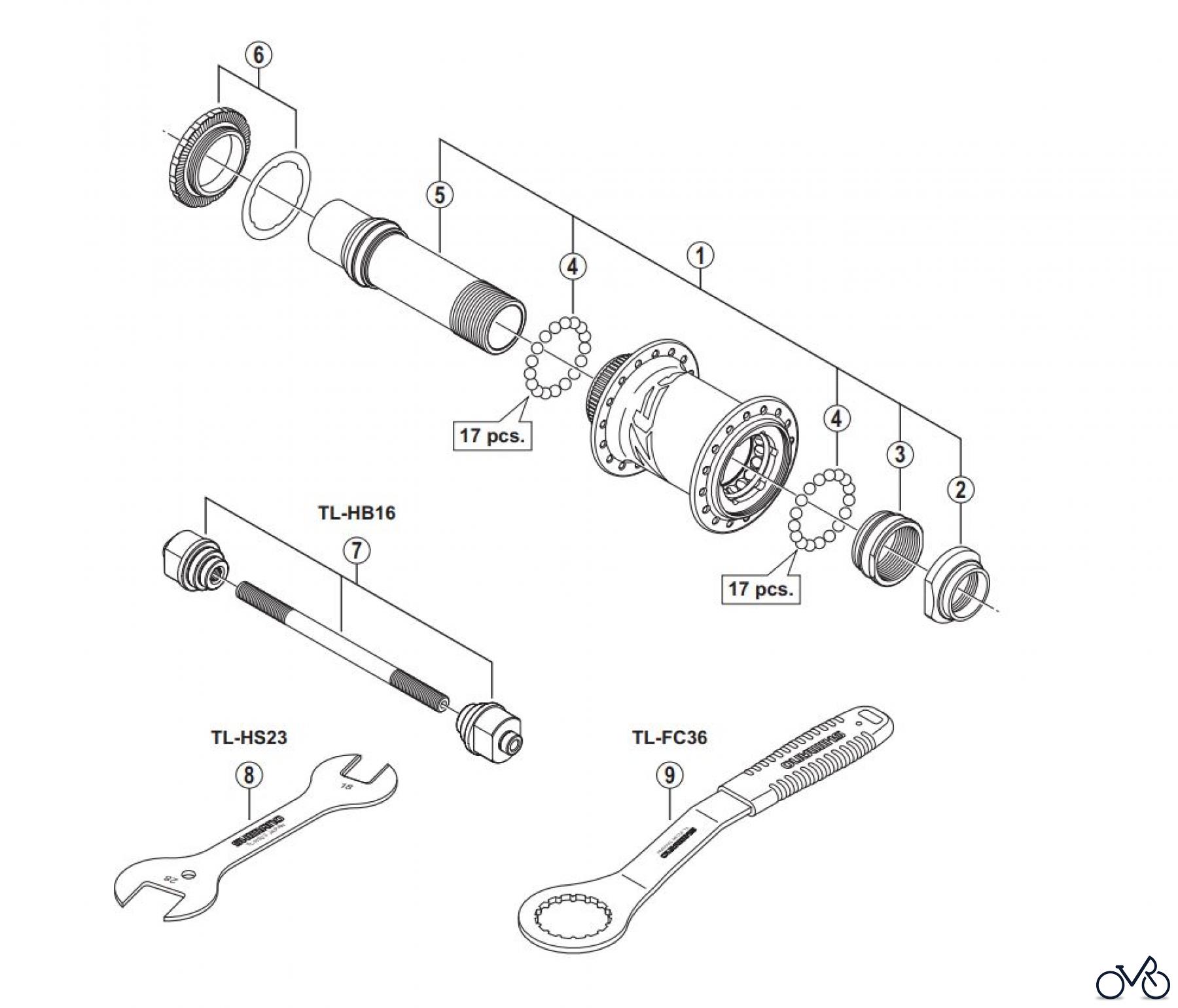

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M640 ZEE Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-28G98010	Complete Hub Axle Y28G98010
2	Y-28G04000	Lock Nut (M25) Y28G04000
3	Y-28G06000	Right Hand Cone (M25) Y28G06000
4	Y-25U98020	Steel Ball (3/16") 36 pcs. Y25U98020
5	Y-28G98020	Hub Axle 103 mm Y28G98020
6	Y-26L98030	Lock Ring & Washer Y26L98030
7	Y-20W98020	TL-HB16 Hub Setting Tool Y20W98020
8	Y-20W04000	TL-HS23 Hub Spanner (18 mm x 28 mm) Y20W04000
9	Y-13098000	TL-FC36 for Lock Ring Removal Tool Y13098000
