Shimano HB-M756 Deore XT VR Nabe

HB-M756 Deore XT VR Nabe HB Hub - Vordere Nabe

Shimano HB Hub - Vordere Nabe HB-M756 Deore XT VR Nabe

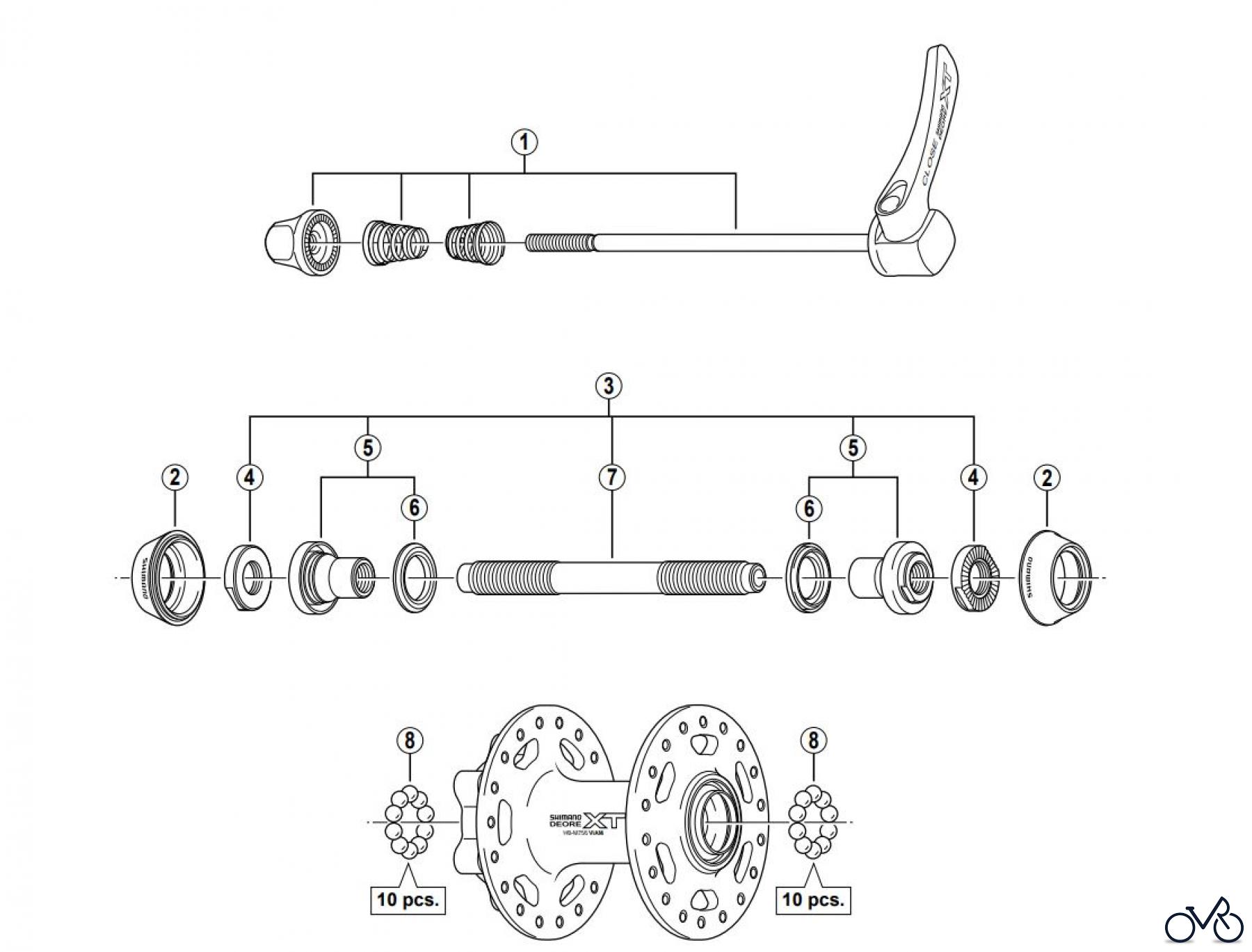

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M756 Deore XT VR Nabe. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-24N98010Complete Quick Release 133 mm (5-1/4") for HB-M756-S Y24N98010
1 Y-24N98020Complete Quick Release 133 mm (5-1/4") for HB-M756-L Y24N98020
2 Y-21R02000GUMMIDICHTUNG Y21R02000
3 Y-24N98030Complete Hub Axle 108 mm (4-1/4") Y24N98030
4 Y-24C05100Kontermutter Y24C05100
5 Y-24N98040Konus HB-M756 M10 x 21,8 mm inkl. Staubkappe, Dichtungsring Y24N98040
6 Shimano DichtungsringY-21406000Dichtungsring Y21406000
7 Y-21S02000Hohlachse 108 mm Y21S02000
8 Shimano Stahlkugel 20 StückY-00091210Stahlkugel 20 Stück Y00091210
