Shimano PD-M9020 XTR SPD Pedals

PD-M9020 XTR SPD Pedals PD Pedal - Pedale

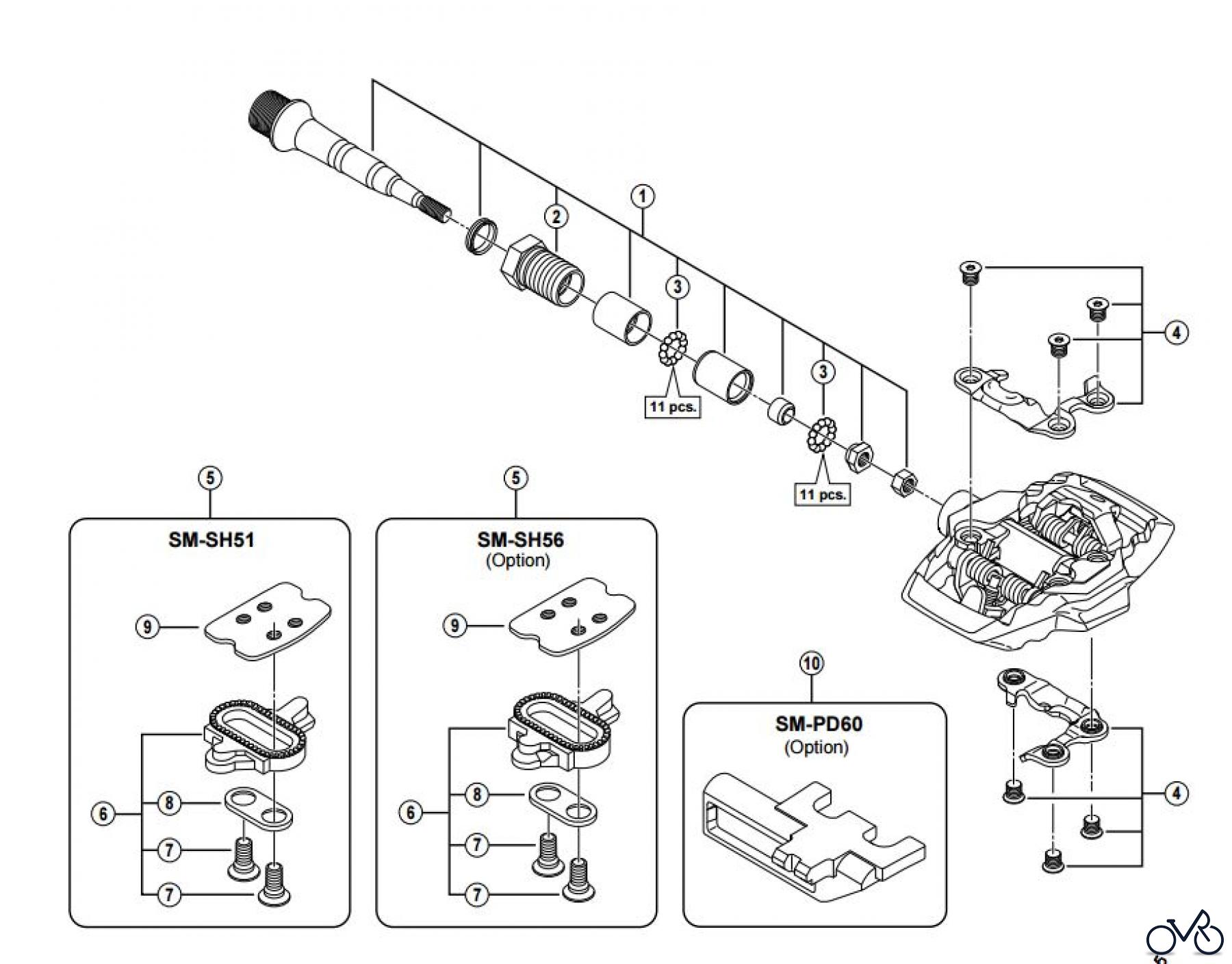

Here you will find the spare parts drawing for Shimano PD Pedal - Pedale PD-M9020 XTR SPD Pedals. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y46X98050	Pedal Axle Assembly (Right / B.C.9/16" x 20T.P.I.) Y46X98050
01	Y46X98020	Pedal Axle Assembly (Left / B.C.9/16" x 20T.P.I.) Y46X98020
02	Y46X98030	Lock Bolt (Right) Y46X98030
02	Y46X98040	Lock Bolt (Left) Y46X98040
03	Y41N98030	Steel Ball (3/32") 62 pcs Y41N98030
04	Y46F98050	Body Cover (Right) & Fixing Bolts (Hexalobular #10) Y46F98050
04	Y46F98060	Body Cover (Left) & Fixing Bolts (Hexalobular #10) Y46F98060
05	Y42498220	SM-SH51 Cleat Set (Single Release Mode / Pair) Y42498220
05	Y41S98092	SM-SH56 Cleat Set (Multiple Release Mode / Pair) Y41S98092
06	Y42498201	SM-SH51 Cleat Set w/o Cleat Nut (Single Release Mode / Pair) Y42498201
06	Y41S98100	SM-SH56 Cleat Set w/o Cleat Nut (Multiple Release Mode / Pair) Y41S98100
07	Y41704030	Cleat Fixing Bolt (1 pc.) Y41704030
08	Y42423000	Cleat Adapter (1 pc.) Y42423000
09	YL0E04000	Cleat Nut (1 pc.) YL0E04000
10	Y40Z98010	SM-PD60 Reflector Unit (Pair/Option) Y40Z98010
10	Y40Z98020	SM-PD60 Reflector Unit (AS/Pair/Option) Y40Z98020
