Shimano BR-M9000-3780 XTR Disc Brake

BR-M9000-3780 XTR Disc Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-M9000-3780 XTR Disc Brake

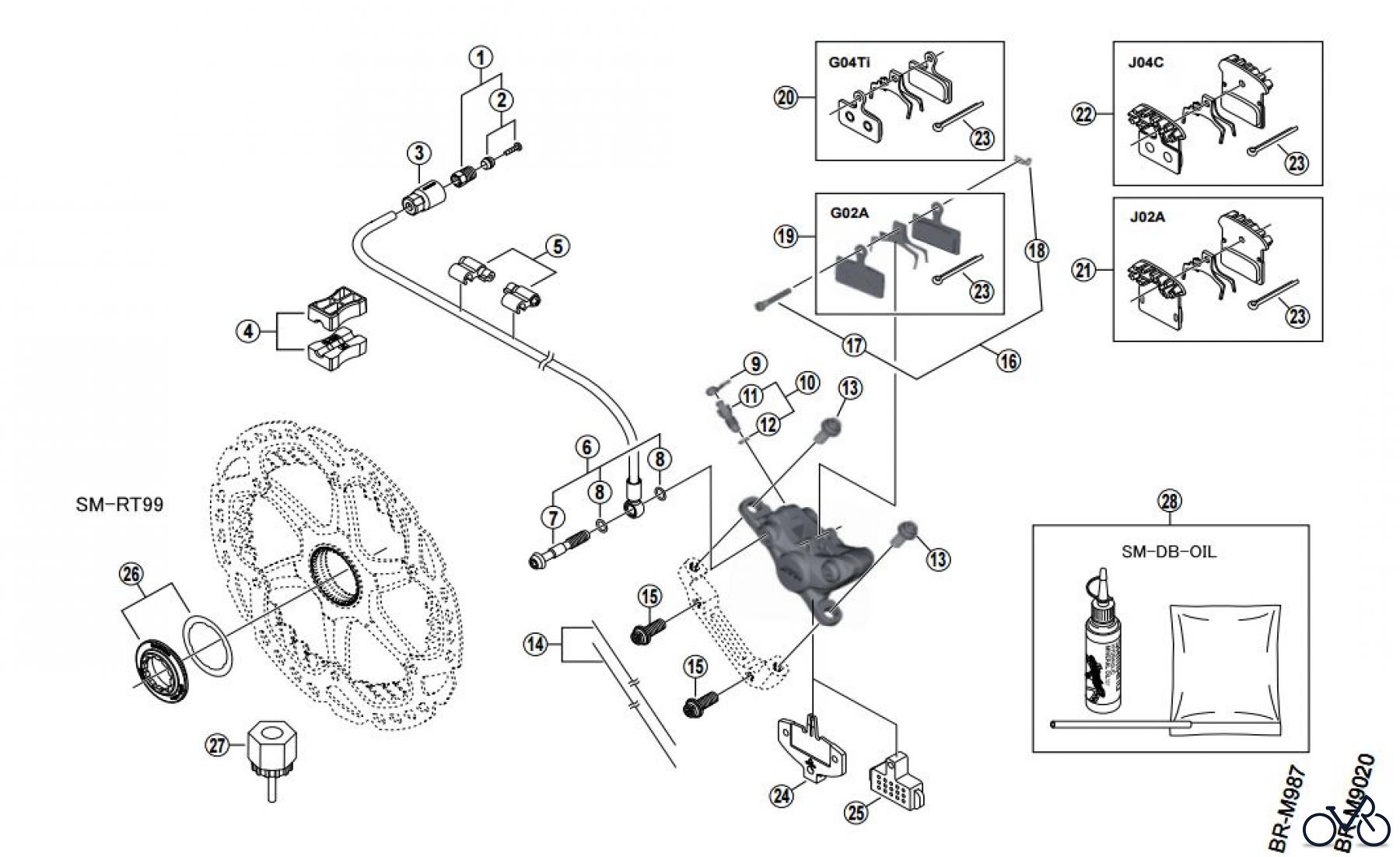

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M9000-3780 XTR Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y8JA98010Connecting Bolt Unit Y8JA98010
02 Y8JA98020Olive & Connecter Insert Y8JA98020
03 Y8JA07000Cover Y8JA07000
04 Y8H198030TL-BH61 Special Tool (2 pcs.) Y8H198030
05 Y83098040SM-HANG Hose Supporter A & B Y83098040
06 Y8LF98030Banjo Bolt & O-Ring Y8LF98030
07 Y8JA09000Banjo Bolt Y8JA09000
08 Y8SY28000O-Ring Y8SY28000
09 Y8B214000Bleed Nipple Cap Y8B214000
10 Y8LF98010Bleed Nipple & Seal Ring Y8LF98010
11 Y8LF09000Bleed Nipple Y8LF09000
12 Y8B511001O-Ring for Bleed Nipple Y8B511001
13 Y8LF08000Caliper Fixing Bolt (M6 x 14.6) Y8LF08000
14 Y8B298010Wire (2 pcs.) Y8B298010
15 Y8J721000Caliper Fixing Bolt (M6 x 15.2) Y8J721000
16 Y8LF98020Pad Axle & Snap Retainer Y8LF98020
17 Y8LF11000Pad Axle Y8LF11000
18 Y8J716000Snap Retainer Y8J716000
19 Y8LW98020Resin Pad (G02A) & Spring w/Split Pin Y8LW98020
20 Y8LW98010Metal Pad (G04Ti) & Spring w/Split Pin Y8LW98010
21 Y8LW98040Resin Pad (J02A) w/Fin & Spring w/Split Pin Y8LW98040
22 Y8LW98030Metal Pad (J04C) w/Fin & Spring w/Split Pin Y8LW98030
23 Y8DB06100Split Pin Y8DB06100
24 Y8J709000Pad Spacer Y8J709000
25 Y8J712000Bleeding Spacer Y8J712000
26 Y8K198010Lock Ring & Washer Y8K198010
27 Y12009230TL-LR15 Lock Ring Removal Tool Y12009230
28 Y83998010Mineral Oil Bleed Kit (50 ml) Y83998010
