Shimano DH-C6000-1N-3816 6V-1.5W Nexus Hub Dynamo

DH-C6000-1N-3816 6V-1.5W Nexus Hub Dynamo DH Dynamo Hub - Nabendynamo

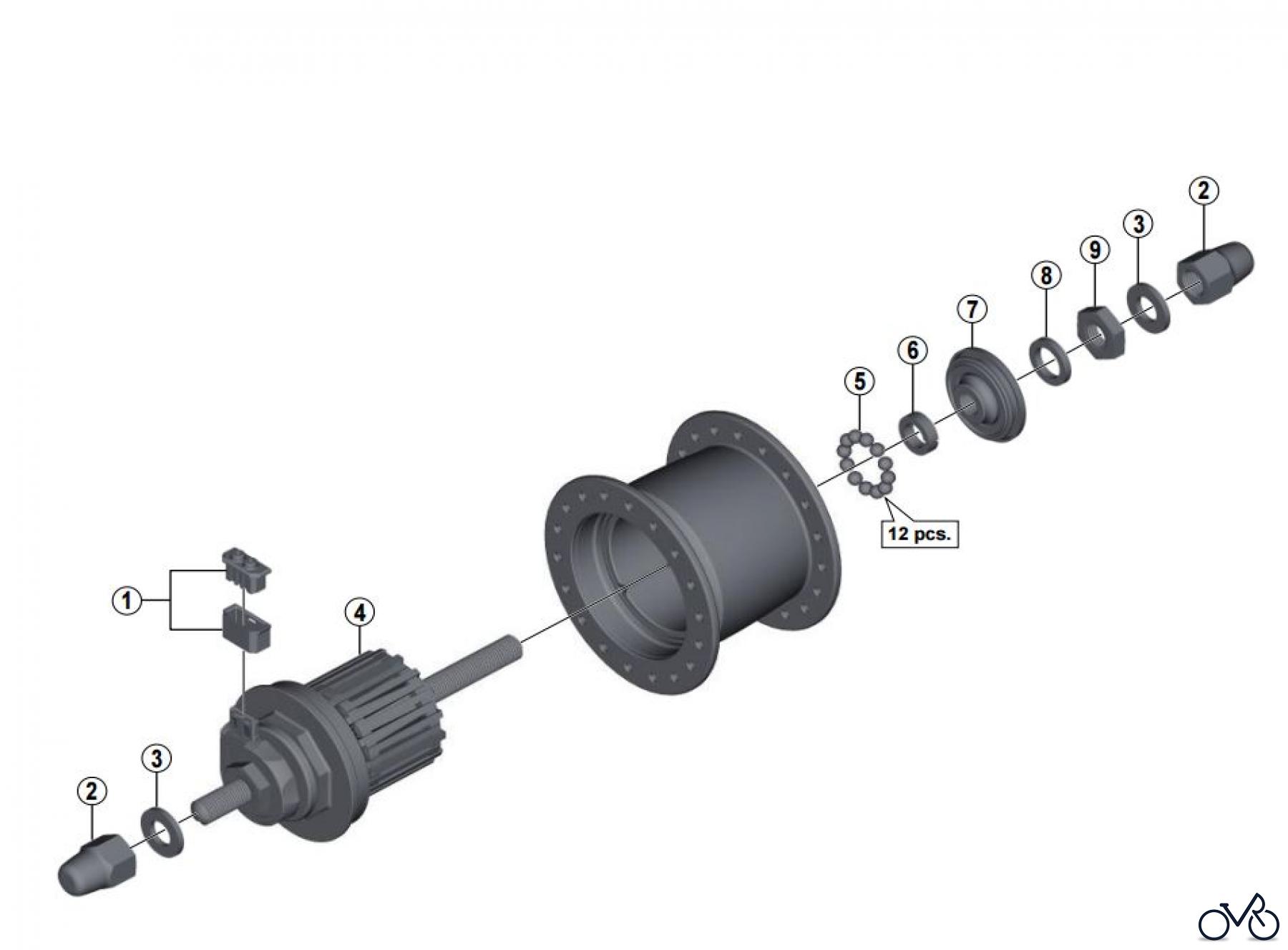

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-C6000-1N-3816 6V-1.5W Nexus Hub Dynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-2SS98030	Connector Cap & Cover Y2SS98030
02	Y-31414210	Cap Nut (M9) Y31414210
03	Y-21D0300R	Washer (2 mm) Y21D0300R
04	Y-29J98010	Internal Assembly (Silver / Axle Length 140 mm) Y29J98010
04	Y-29K98020	Internal Assembly (Black / Axle Length 140 mm) Y29K98020
05	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
06	Y-2ZE20000	Grease Guard Y2ZE20000
07	Y-29K98030	Cone (M9 x 13 mm) w/Dust Seal Y29K98030
08	Y-29K000J0	Left Hand Spacer (1.3 mm) Y29K000J0
09	Y-2ZW21010	Lock Nut (M9 x 4.5 mm) Y2ZW21010
