Shimano DH-C3000 Nexus Hub Dynamo

DH-C3000 Nexus Hub Dynamo DH Dynamo Hub - Nabendynamo

Shimano DH Dynamo Hub - Nabendynamo DH-C3000 Nexus Hub Dynamo

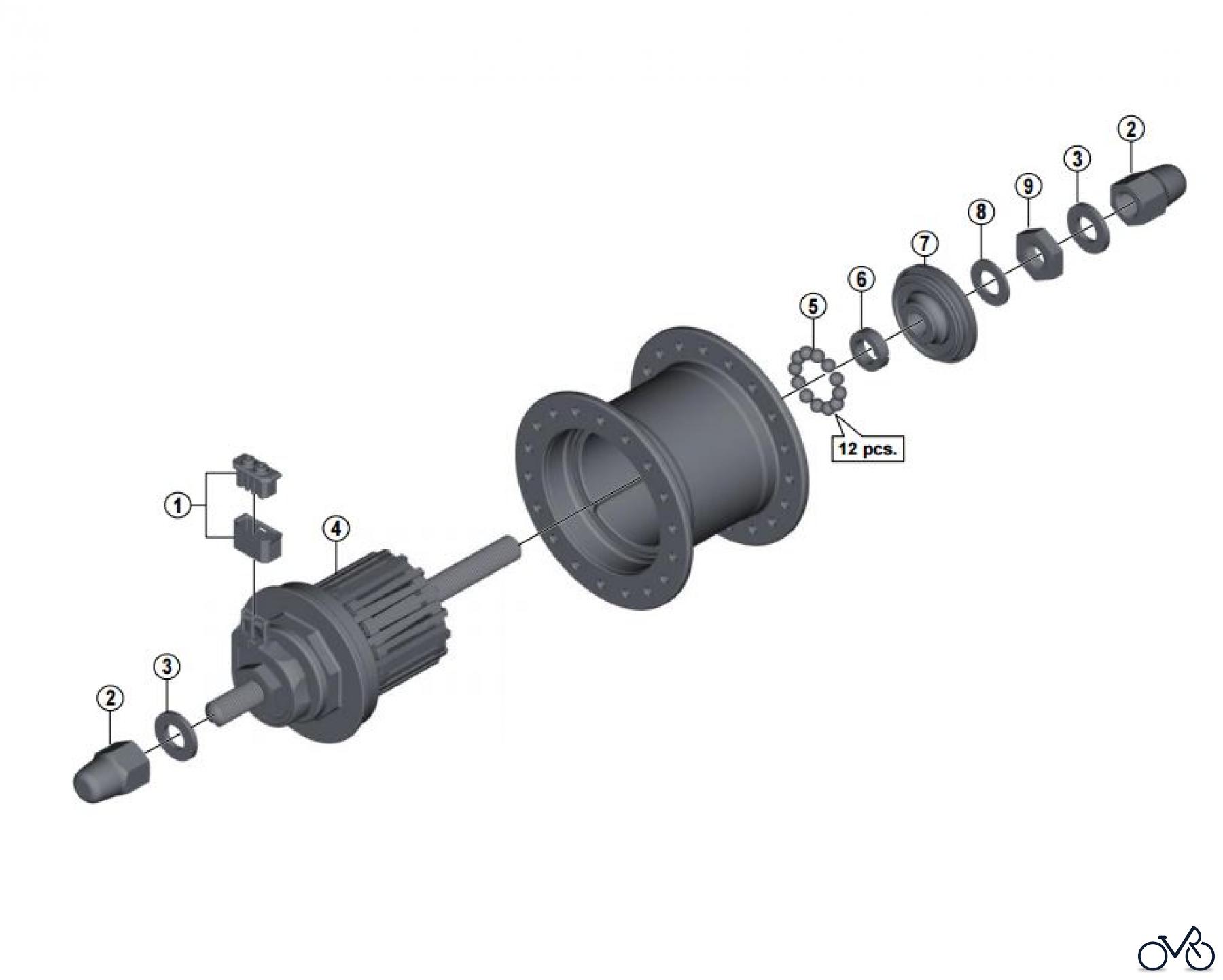

Here you will find the spare parts drawing for Shimano DH Dynamo Hub - Nabendynamo DH-C3000 Nexus Hub Dynamo. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Shimano Connector Cap & CoverY-2SS98030Connector Cap & Cover Y2SS98030
02 Shimano Cap Nut (M9)Y-31414210Cap Nut (M9) Y31414210
03 Shimano Washer (2 mm)Y-21D0300RWasher (2 mm) Y21D0300R
04 Y-29K98010Internal Assembly (Silver Coating / Axle Length 140 mm) Y29K98010
04 Y-29K98020Internal Assembly (Black Coating / Axle Length 140 mm) Y29K98020
05 Shimano Steel Ball (3/16") 20 pcs.Y-00091210Steel Ball (3/16") 20 pcs. Y00091210
06 Shimano Grease GuardY-2ZE20000Grease Guard Y2ZE20000
07 Shimano Cone (M9 x 13 mm) w/Dust SealY-29K98030Cone (M9 x 13 mm) w/Dust Seal Y29K98030
08 Y-29K000J0LH Spacer (1.3 mm) Y29K000J0
09 Shimano Lock Nut (M9 x 4.5 mm)Y-2ZW21010Lock Nut (M9 x 4.5 mm) Y2ZW21010
