Shimano CS-M9000 XTR Cassette Sprocket (11-Speed)

CS-M9000 XTR Cassette Sprocket (11-Speed) CS Cassette / Zahnkranz

Shimano CS Cassette / Zahnkranz CS-M9000 XTR Cassette Sprocket (11-Speed)

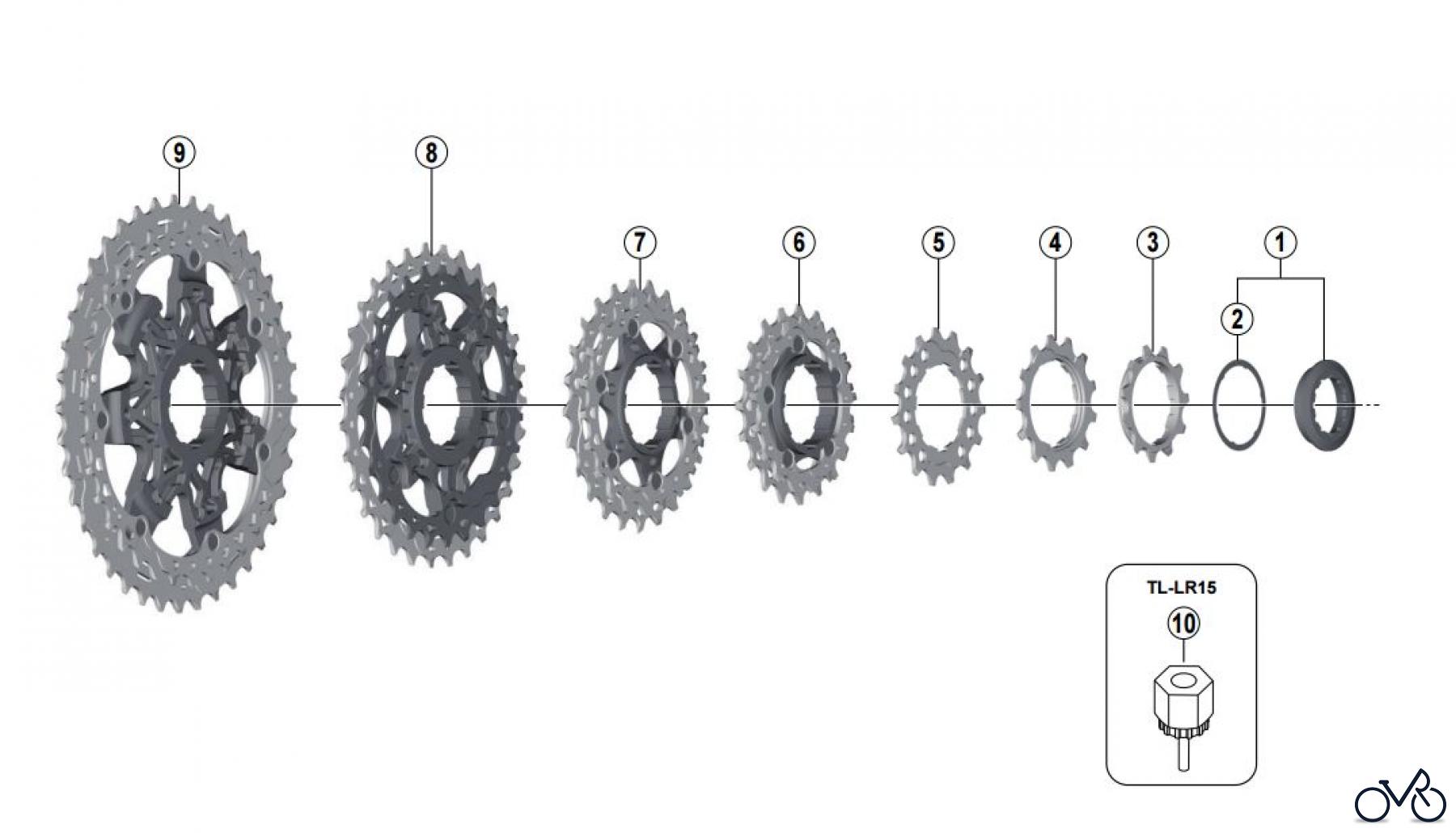

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-M9000 XTR Cassette Sprocket (11-Speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-1PU98010Lock Ring & Spacer Y1PU98010
02 Shimano LOCKRING SPACER (11T) (t 0.1)Y-10Z04000LOCKRING SPACER (11T) (t 0.1) Y10Z04000
03 Y-1PU11000SPROCKET 11T Y1PU11000
04 Y-1PU13000SPROCKET 13T Y1PU13000
05 Y-1PU15000SPROCKET 15T Y1PU15000
06 Y-1PU98020Sprocket Unit (17-19T) Y1PU98020
07 Y-1PU98030Sprocket Unit (21-24T) Y1PU98030
08 Y-1PU98040Sprocket Unit (27-31T) Y1PU98040
09 Y-1PU98050Sprocket Unit (35-40T) Y1PU98050
10 Shimano Lock Ring Removal Tool (TL-LR15)Y-12009230Lock Ring Removal Tool (TL-LR15) Y12009230
