Shimano CS-M8000 DEORE XT Kasette 11-fach

CS-M8000 DEORE XT Kasette 11-fach CS Cassette / Zahnkranz

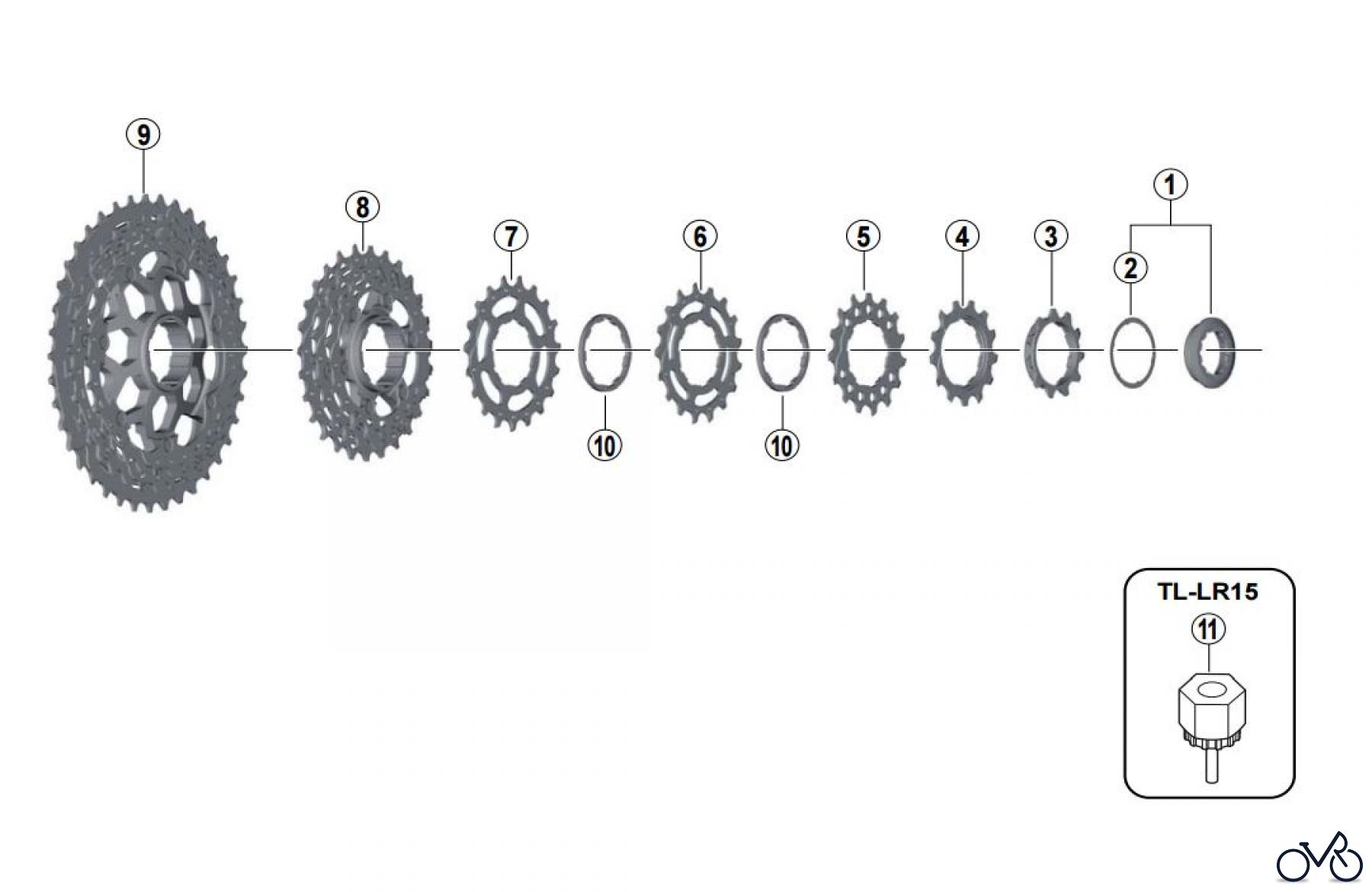

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-M8000 DEORE XT Kasette 11-fach. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-1RK98010	Lock Ring & Spacer Y1RK98010
02	Y-10Z04000	Lock Ring Spacer Y10Z04000
03	Y-1RK11000	Sprocket Wheel 11T (Built in spacer type) Y1RK11000
04	Y-1RK13000	Sprocket Wheel 13T (Built in spacer type) Y1RK13000
05	Y-1RK15000	Sprocket Wheel 15T Y1RK15000
06	Y-1RK17000	Sprocket Wheel 17T Y1RK17000
07	Y-1RK19000	Sprocket Wheel 19T Y1RK19000
08	Y-1RK98020	Sprocket Unit (21-24-27T) for 11-40T Y1RK98020
08	Y-1RK98030	Sprocket Unit (21-24-28T) for 11-42T Y1RK98030
09	Y-1RK98040	Sprocket Unit (31-35-40T) for 11-40T Y1RK98040
09	Y-1RK98050	Sprocket Unit (32-37-42T) for 11-42T Y1RK98050
10	Y-1YC05000	Sprocket Spacer (t=2.18 mm) Y1YC05000
11	Y-12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
