Shimano ST-9070-3332A

ST-9070-3332A ST Rapidfire- Schaltbremshebel

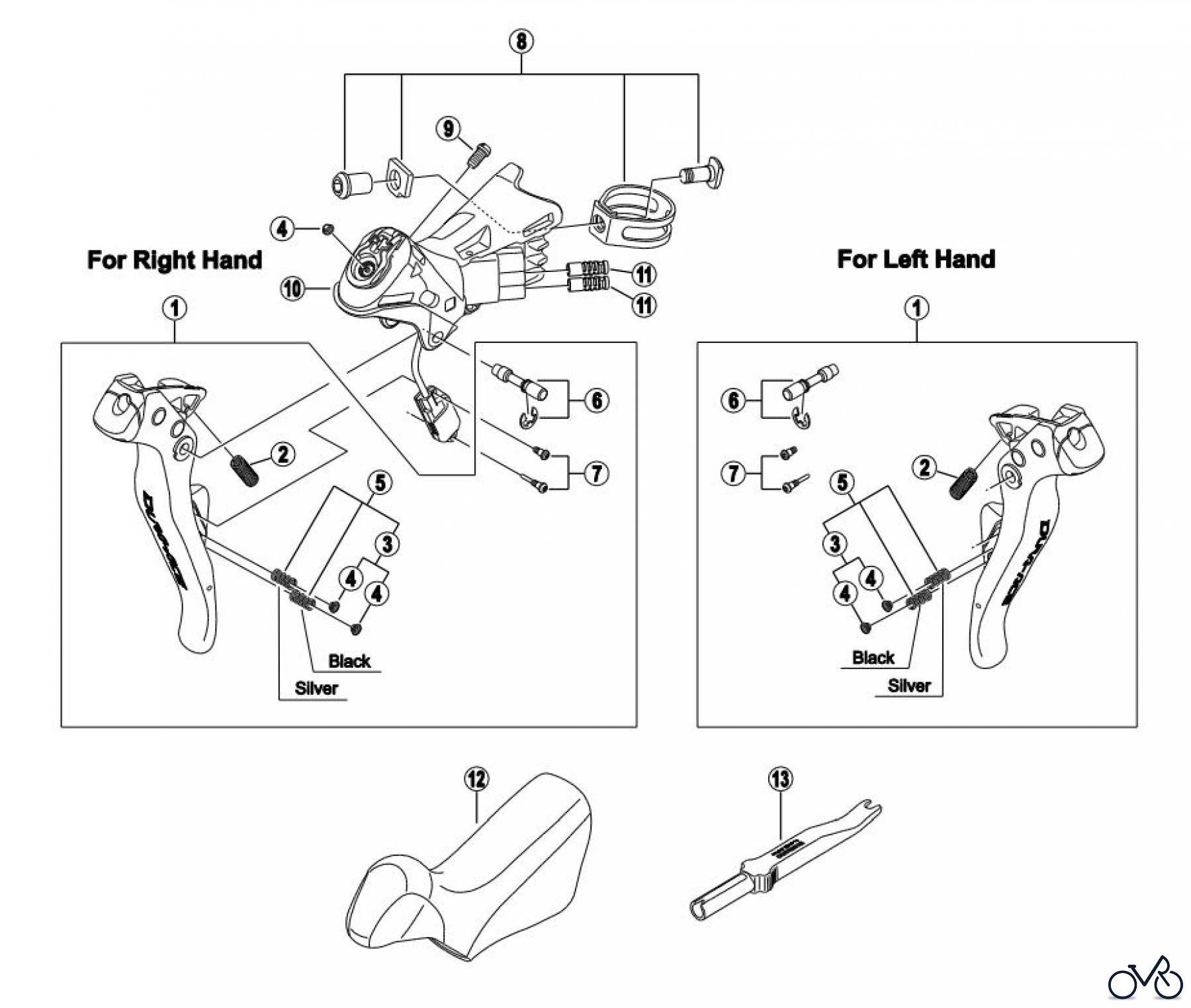

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-9070-3332A. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y6X098010	R.H. Main Lever Assembly Y6X098010
01	Y6X198010	L.H. Main Lever Assembly Y6X198010
02	Y6X039000	Return Spring Y6X039000
03	Y6X098020	SW Button (2 pcs.) Y6X098020
04	Y7F204000	SW Button Y7F204000
05	Y6X098080	SW Button (2 pcs.) & Switch Spring (2 pcs.) Y6X098080
06	Y6X098030	Lever Axle & E-Ring Y6X098030
07	Y6X098040	Switch Unit Fixing Screw & Switch Lever A Guide Pin Y6X098040
08	Y6X098050	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y6X098050
09	Y6DZ49000	Grip Adjusting Screw Y6DZ49000
10	Y6X098060	R.H. Bracket Y6X098060
10	Y6X198020	L.H. Bracket Y6X198020
11	Y6VE15000	Dummy Plug Y6VE15000
12	Y6X098070	Bracket Covers (Pair) Y6X098070
13	Y6VE16000	TL-EW02 Plug Tool Y6VE16000
