Shimano ST-6700-2936B ULTEGRA Dual Control Lever (FLIGHT DECK Compatible)

ST-6700-2936B ULTEGRA Dual Control Lever (FLIGHT DECK Compatible) ST Rapidfire- Schaltbremshebel

Shimano ST Rapidfire- Schaltbremshebel ST-6700-2936B ULTEGRA Dual Control Lever (FLIGHT DECK Compatible)

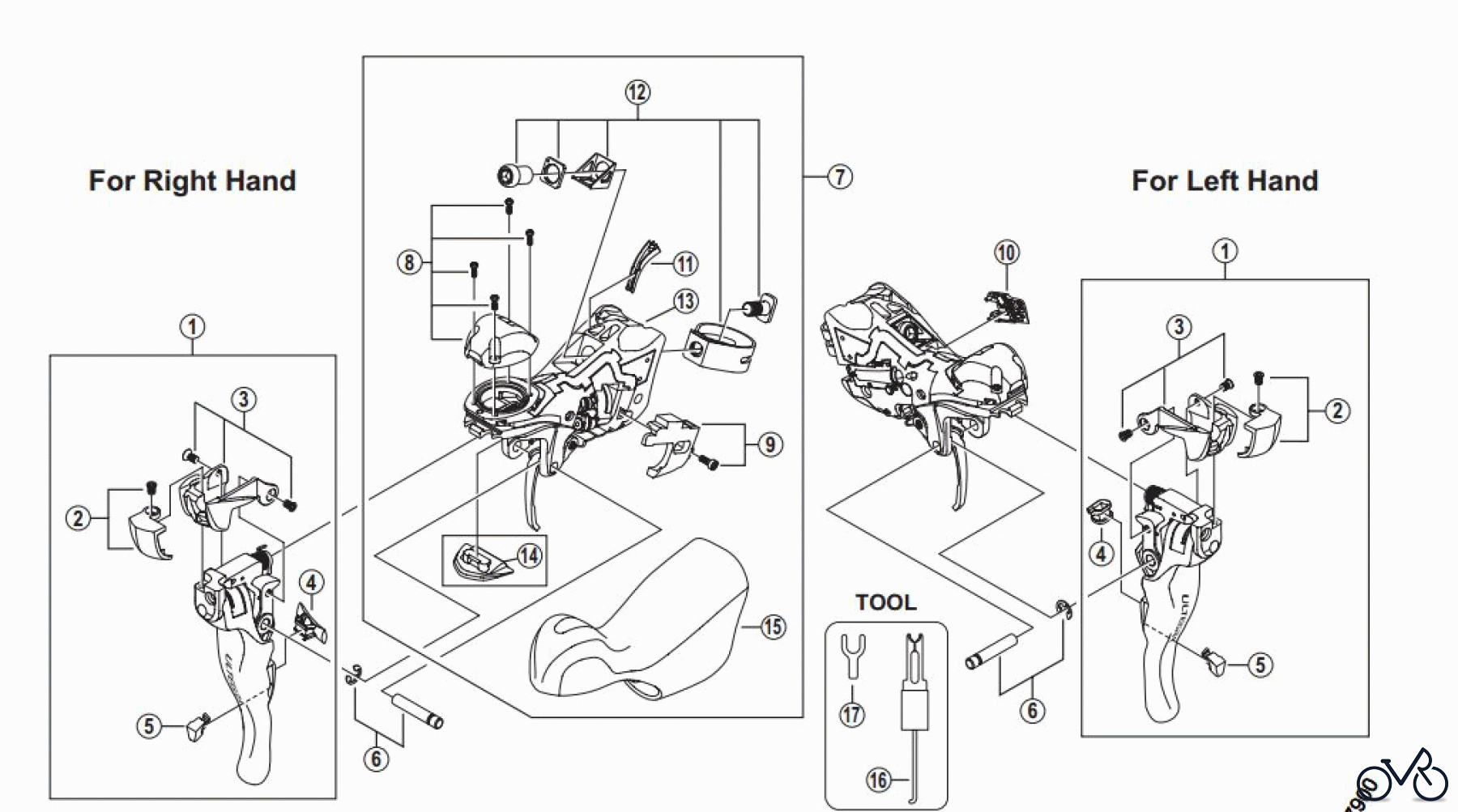

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-6700-2936B ULTEGRA Dual Control Lever (FLIGHT DECK Compatible). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-6SC98010R.H. Main Lever Assembly Y6SC98010
01 Y-6SC98020L.H. Main Lever Assembly Y6SC98020
02 Y-6SC98030R.H. Name Plate A & Fixing Screw Y6SC98030
02 Y-6SC98040L.H. Name Plate A & Fixing Screw Y6SC98040
03 Y-6SC98050R.H. Name Plate B & Fixing Screws Y6SC98050
03 Y-6SC98060L.H. Name Plate B & Fixing Screws Y6SC98060
04 Y-6SC20000R.H. Main Lever Support Y6SC20000
04 Y-6SD70000L.H. Main Lever Support Y6SD70000
05 Shimano R.H. Release Lever SupportY-6RT37010R.H. Release Lever Support Y6RT37010
05 Shimano L.H. Release Lever SupportY-6RU87010L.H. Release Lever Support Y6RU87010
06 Y-6SC98070Lever Axle & E-ring Y6SC98070
07 Y-6SC98190R.H. Shifting Lever Unit (Bracket Cover: Black) Y6SC98190
07 Y-6SC98200L.H. Shifting Lever Unit (Bracket Cover: Black Y6SC98200
08 Y-6SC98100R.H. Top Cover Unitless & Fixing Screws Y6SC98100
08 Y-6SC98110L.H. Top Cover Unitless & Fixing Screws Y6SC98110
09 Shimano Unit Cover & Fixing ScrewY-6SC98210Unit Cover & Fixing Screw Y6SC98210
10 Shimano SL Cable CoverY-6RU54000SL Cable Cover Y6RU54000
11 Y-6RT46000Kabelführung rechts Y6RT46000
11 Y-6SD66000Kabelführung Links Y6SD66000
12 Y-6SC98150Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y6SC98150
13 Y-6SC98220R.H. Bracket Y6SC98220
13 Y-6SC98230L.H. Bracket Y6SC98230
14 Shimano R.H. Adjustment Block (5 mm)Y-6SC76000R.H. Adjustment Block (5 mm) Y6SC76000
14 Y-6SC76010L.H. Adjustmen Block (5 mm) Y6SC76010
14 Shimano R.H. Adjustment Block (10 mm) Y-6SC75000R.H. Adjustment Block (10 mm) Y6SC75000
14 Shimano L.H. Adjustmen Block (10 mm) Y-6SC75010L.H. Adjustmen Block (10 mm) Y6SC75010
15 Y-6SC98180Bracket Covers (Black/Pair) Y6SC98180
15 Y-6SC98240Bracket Covers (White/Pair) Y6SC98240
16 Shimano Tool A for E-ringY-6RT68000Tool A for E-ring Y6RT68000
17 Shimano Tool B for E-ringY-6RT66000Tool B for E-ring Y6RT66000
