Shimano ST-R460 Dual Control Lever

ST-R460 Dual Control Lever ST Rapidfire- Schaltbremshebel

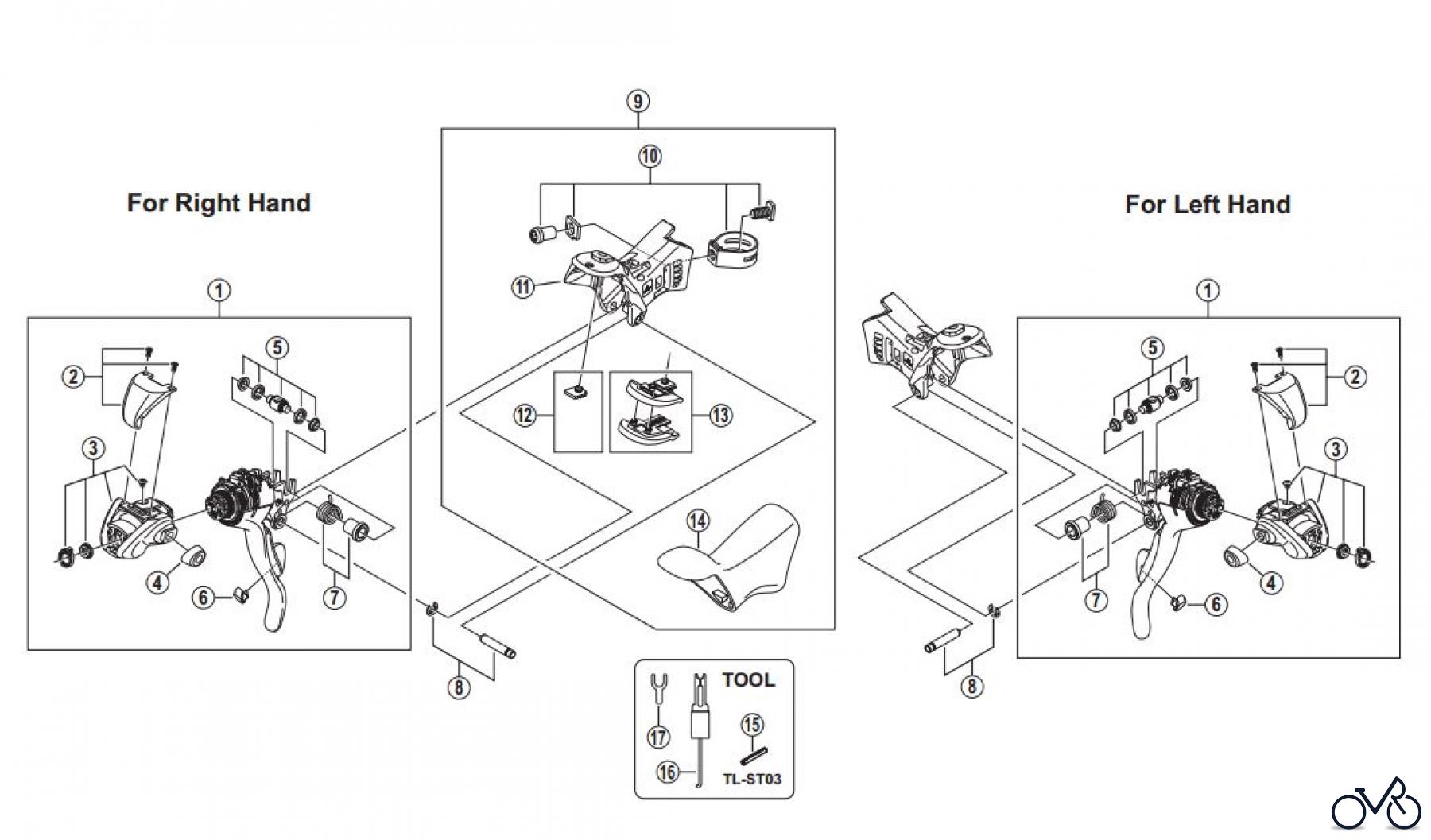

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-R460 Dual Control Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y67N98010	R.H. Main Lever Assembly Y67N98010
01	Y67M98010	L.H. Main Lever Assembly Y67M98010
02	Y67N98020	L.H. Main Lever Assembly B Y67N98020
02	Y67M98020	L.H. Name Plate & Fixing Screws Y67M98020
03	Y6UM98050	R.H. Outer Support Unit Y6UM98050
03	Y6UN98040	L.H. Outer Support Unit Y6UN98040
04	Y6UN46000	Outer Support Cap Y6UN46000
05	Y6BD98110	Cable Hook Unit Y6BD98110
06	Y6KD05000	R.H. Release Lever Support Y6KD05000
06	Y6KD55000	L.H. Release Lever Support Y6KD55000
07	Y6VX98060	R.H. Return Spring & Spacer Y6VX98060
07	Y6VY98050	L.H. Return Spring & Spacer Y6VY98050
08	Y67N98040	Lever Axle & E-Ring Y67N98040
09	Y67N98050	R.H. Bracket Unit Y67N98050
09	Y67M98040	L.H. Bracket Unit Y67M98040
10	Y6VX98080	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y6VX98080
11	Y67N89000	R.H. Bracket Y67N89000
11	Y67M89000	L.H. Bracket Y67M89000
12	Y6K250010	Bump Rubber Y6K250010
13	Y6UM98080	R.H. Adjustment Block 4° & 8° Y6UM98080
13	Y6UN98070	L.H. Adjustment Block 4° & 8° Y6UN98070
14	Y6UM98090	Bracket Covers (Pair) Y6UM98090
15	Y13003200	Return Spring Installation Tool (TL-ST03) Y13003200
16	Y6RT68000	Tool A for E-ring Y6RT68000
17	Y6RT66000	Tool B for E-ring Y6RT66000
