Shimano ST-3503 SORA Dual Control Lever

ST-3503 SORA Dual Control Lever ST Rapidfire- Schaltbremshebel

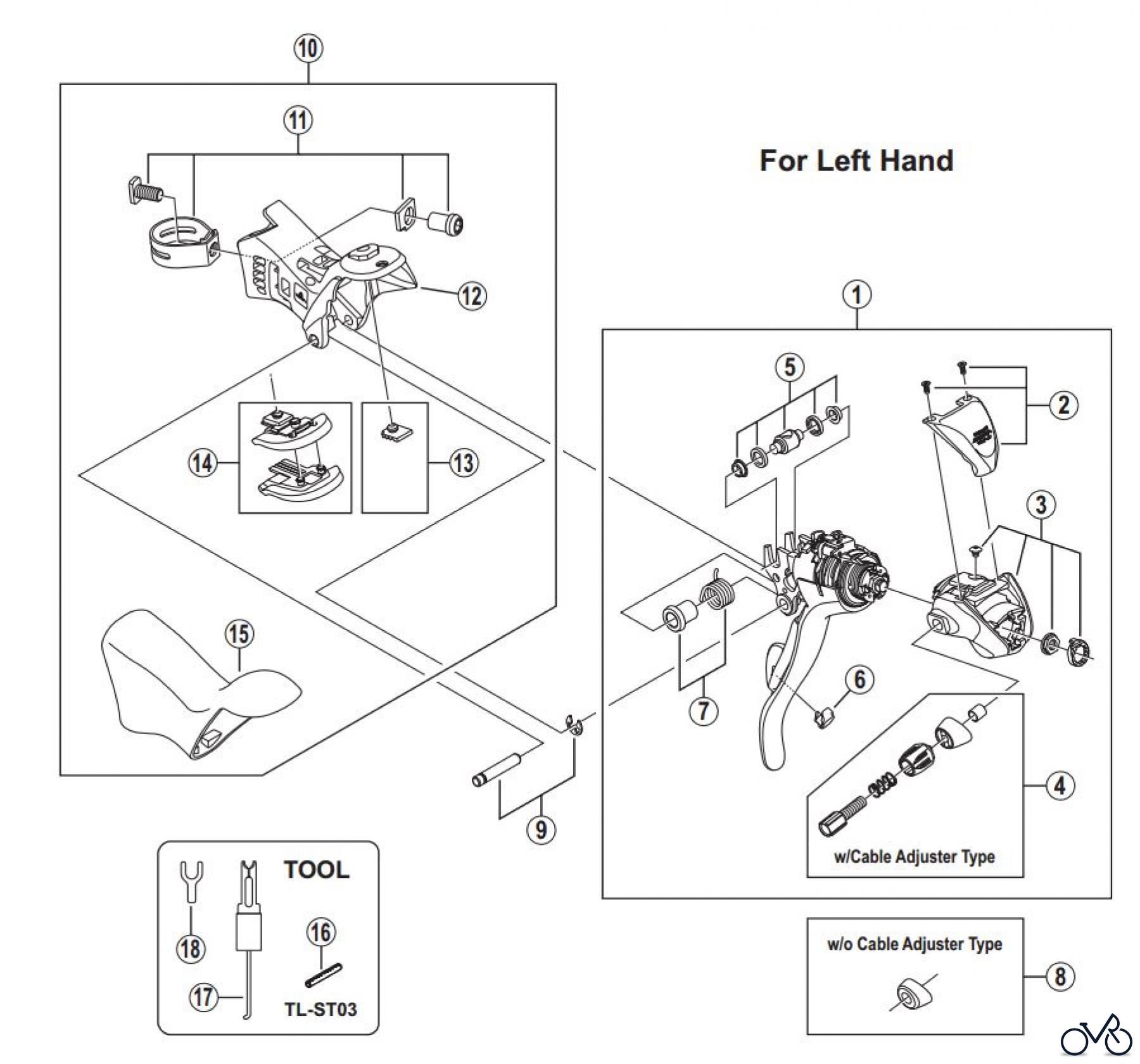

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-3503 SORA Dual Control Lever. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-6VZ98010	L.H. Main Lever Assembly Y6VZ98010
02	Y-6VZ98020	L.H. Name Plate & Fixing Screws Y6VZ98020
03	Y-6VY98040	L.H. Outer Support Unit Y6VY98040
04	Y-6VX98050	Cable Adjusting Bolt Unit (w/Cable Adjuster Type) Y6VX98050
05	Y-6BD98110	Cable Hook Unit Y6BD98110
06	Y-6KD55000	L.H. Release Lever Support Y6KD55000
07	Y-6VY98050	L.H. Return Spring & Spacer Y6VY98050
08	Y-6UN46000	Outer Support Cap (w/o Cable Adjuster Type) Y6UN46000
09	Y-6VX98110	Lever Axle & E-Ring Y6VX98110
10	Y-6VZ98040	L.H. Bracket Unit Y6VZ98040
11	Y-6VX98080	Clamp Band Unit (ø23.8 mm - ø24.2 mm) Y6VX98080
12	Y-6VX89020	L.H. Bracket Y6VX89020
13	Y-6K250010	Bump Rubber Y6K250010
14	Y-6VY98070	L.H. Adjustment Block 4° & 8° Y6VY98070
15	Y-6VX88010	L.H. Bracket Cover Y6VX88010
16	Y-13003200	Return Spring Installation Tool (TL-ST03) Y13003200
17	Y-6RT68000	Tool A for E-ring Y6RT68000
18	Y-6RT66000	Tool B for E-ring Y6RT66000
