Shimano ST-EF51-4A-3031

ST-EF51-4A-3031 ST Rapidfire- Schaltbremshebel

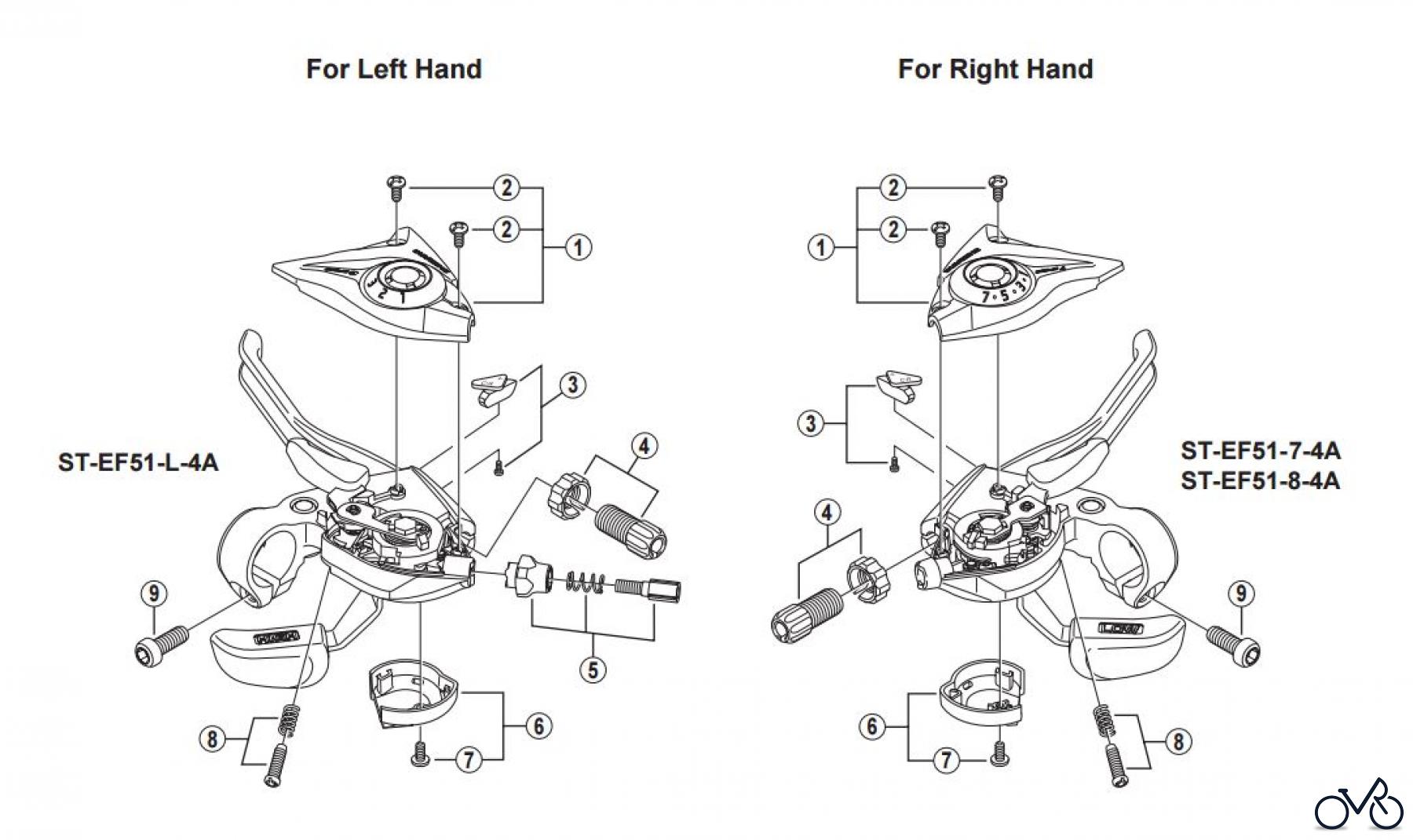

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-EF51-4A-3031. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y6TP98160	Upper Cover for 7-Speed (Black) & Fixing Screws (M3 x 5) Y6TP98160
01	Y6TP98170	Upper Cover for 7-Speed (Silver) & Fixing Screws (M3 x 5) Y6TP98170
01	Y6TP98180	Upper Cover for 8-Speed (Black) & Fixing Screws (M3 x 5) Y6TP98180
01	Y6TP98190	Upper Cover for 8-Speed (Silver) & Fixing Screws (M3 x 5) Y6TP98190
01	Y6TP98200	Upper Cover for Left Hand (Black) & Fixing Screws (M3 x 5) Y6TP98200
01	Y6TP98210	Upper Cover for Left Hand (Silver) & Fixing Screws (M3 x 5) Y6TP98210
02	Y6A726000	Upper Cover Fixing Screw (M3 x 5/Black) Y6A726000
02	Y6BK50000	Upper Cover Fixing Screw (M3 x 5/Silver) Y6BK50000
03	Y8TS98010	Adjustment Block for Right Hand & Fixing Screw Y8TS98010
03	Y8TS98020	Adjustment Block for Left Hand & Fixing Screw Y8TS98020
04	Y8UM98010	Brake Cable Adjusting Bolt & Nut Y8UM98010
05	Y6A898010	Shifting Cable Adjusting Bolt Unit for Left Hand Y6A898010
06	Y6TP98130	Main Lever Cover for Right Hand & Fixing Screw (M3 x 7) Y6TP98130
06	Y6TP98140	Main Lever Cover for Left Hand & Fixing Screw (M3 x 7) Y6TP98140
07	Y6NM14000	Main Lever Cover Fixing Screw (M3 x 7) Y6NM14000
08	Y6KT98190	Reach Adjusting Screw (M4 x 16.25) & Spring for Right Hand Y6KT98190
08	Y6TP98150	Reach Adjusting Screw (M4 x 16.25) & Spring for Left Hand Y6TP98150
09	Y6TP12000	Clamp Bolt (M6 x 16) Y6TP12000
