Shimano ST-EF51-2A-3030

ST-EF51-2A-3030 ST Rapidfire- Schaltbremshebel

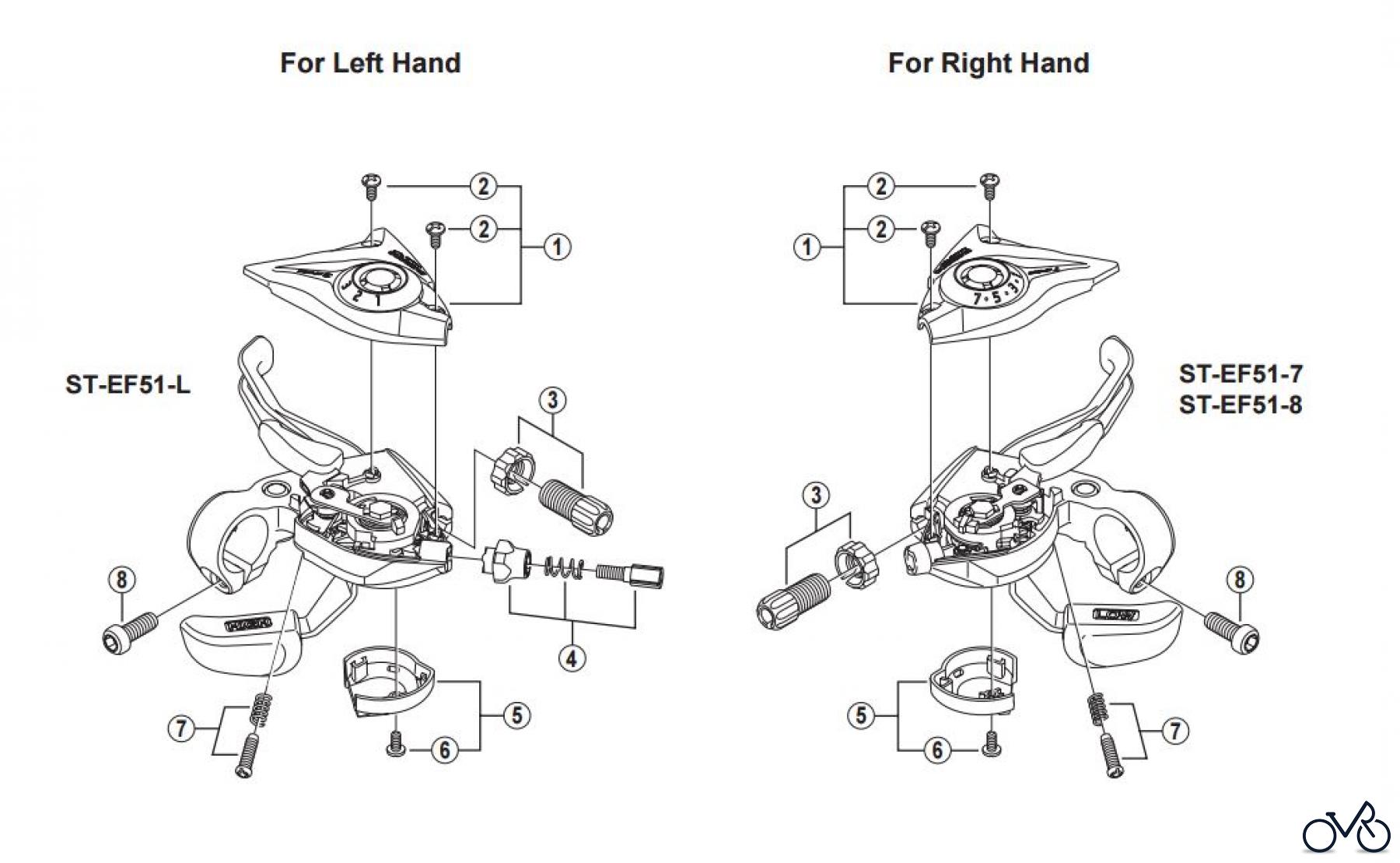

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-EF51-2A-3030. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y6TP98010	Upper Cover for 7-Speed (Black) & Fixing Screws (M3 x 5) Y6TP98010
01	Y6TP98020	Upper Cover for 7-Speed (Silver) & Fixing Screws (M3 x 5) Y6TP98020
01	Y6TP98030	Upper Cover for 8-Speed (Black) & Fixing Screws (M3 x 5) Y6TP98030
01	Y6TP98040	Upper Cover for 8-Speed (Silver) & Fixing Screws (M3 x 5) Y6TP98040
01	Y6TP98050	Upper Cover for Left Hand (Black) & Fixing Screws (M3 x 5) Y6TP98050
01	Y6TP98060	Upper Cover for Left Hand (Silver) & Fixing Screws (M3 x 5) Y6TP98060
02	Y6A726000	Upper Cover Fixing Screw (M3 x 5/Black Y6A726000
02	Y6BK50000	Upper Cover Fixing Screw (M3 x 5/Silver) Y6BK50000
03	Y8UM98010	Brake Cable Adjusting Bolt & Nut Y8UM98010
04	Y6A898010	Shifting Cable Adjusting Bolt Unit for Left Hand Y6A898010
05	Y6TP98130	Main Lever Cover for Right Hand & Fixing Screw (M3 x 7) Y6TP98130
05	Y6TP98140	Main Lever Cover for Left Hand & Fixing Screw (M3 x 7) Y6TP98140
06	Y6NM14000	Main Lever Cover Fixing Screw (M3 x 7) Y6NM14000
07	Y6KT98190	Reach Adjusting Screw (M4 x 16.25) & Spring for Right Hand Y6KT98190
07	Y6TP98150	Reach Adjusting Screw (M4 x 16.25) & Spring for Left Hand Y6TP98150
08	Y6TP12000	Clamp Bolt (M6 x 16) Y6TP12000
