Shimano BR-M580 DEORE LX V-BRAKE Brake 0509-2361B

BR-M580 DEORE LX V-BRAKE Brake 0509-2361B BR Brake - Bremse

0509-2361B
Shimano BR Brake - Bremse BR-M580 DEORE LX V-BRAKE Brake 0509-2361B

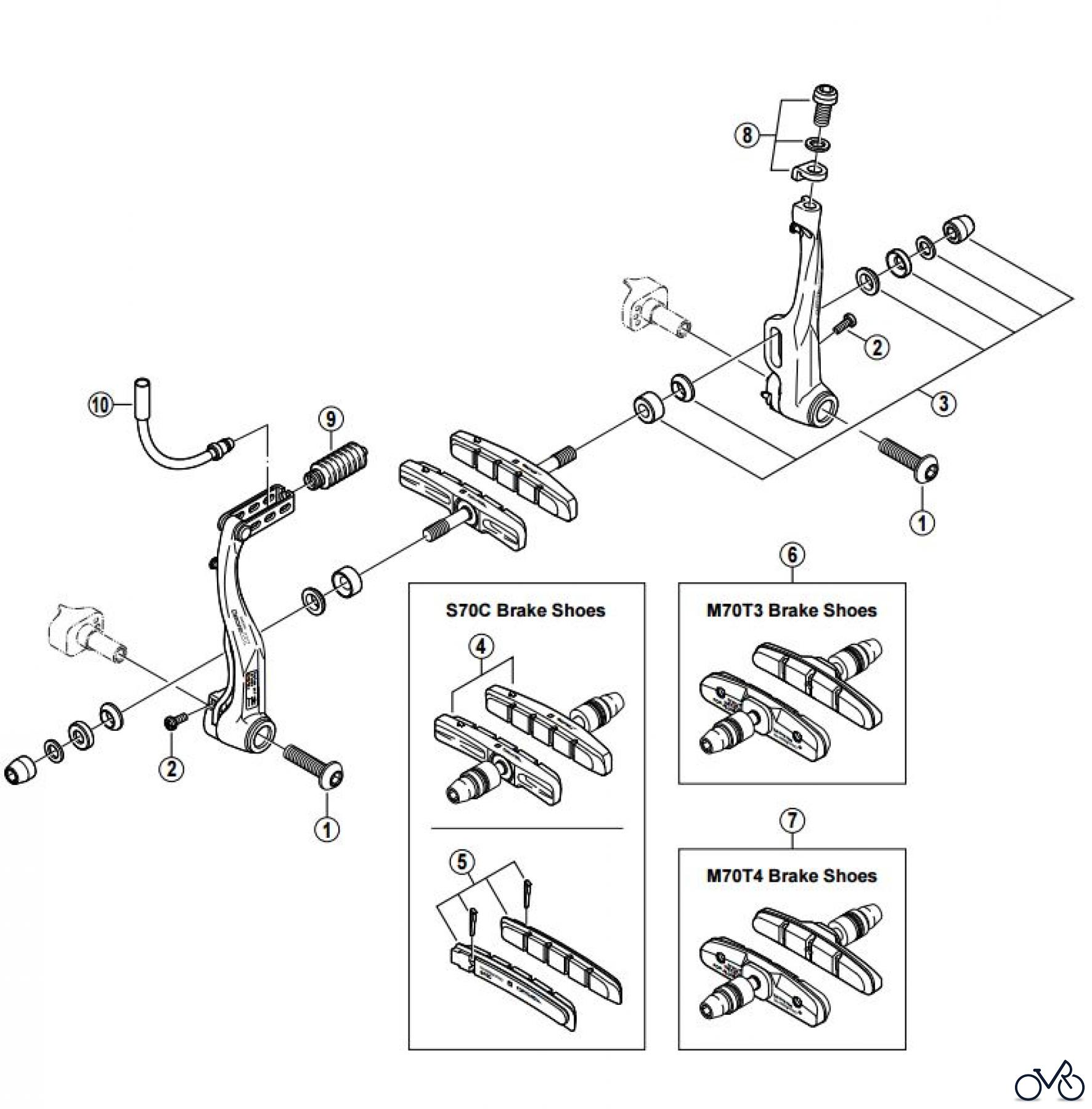

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M580 DEORE LX V-BRAKE Brake 0509-2361B. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-8DA04010Link Fixing Bolt (M6 x 25) Y8DA04010
01 Y-8DA04000Link Fixing Bolt (M6 x 16) Y8DA04000
02 Shimano Spring Tension Adjustment Screw (M3 x 8)Y-8GV05000Spring Tension Adjustment Screw (M3 x 8) Y8GV05000
03 Y-8DA98020Shoe Fixing Nut Unit Y8DA98020
04 Y-8DA9801AS70C Cartridge-Type Brake Shoe Set (Pair) Y8DA9801A
05 Y-8AA98130S70C Cartridge-Type Brake Shoes & Fixing Pins (Pair) Y8AA98130
06 Y-8BM9810AM70T3 Brake Shoe Set (Pair) Y8BM9810A
07 Y-8BM9803AM70T4 Brake Shoe Set (Pair) Y8BM9803A
08 Y-8BV98020Cable Fixing Bolt Unit (M6 x 11.5) Y8BV98020
09 Y-8BP14000Boot Y8BP14000
10 Y-8AA98070Inner Cable Lead Unit (90 : Middle) Y8AA98070
10 Y-8AA98080Inner Cable Lead Unit (135 : Long) Y8AA98080
10 Y-8AA98120Inner Cable Lead Unit (45 : Short) Y8AA98120
