Shimano BR-M575-R, 2885A Rear Disc Brake

BR-M575-R, 2885A Rear Disc Brake BR Brake - Bremse

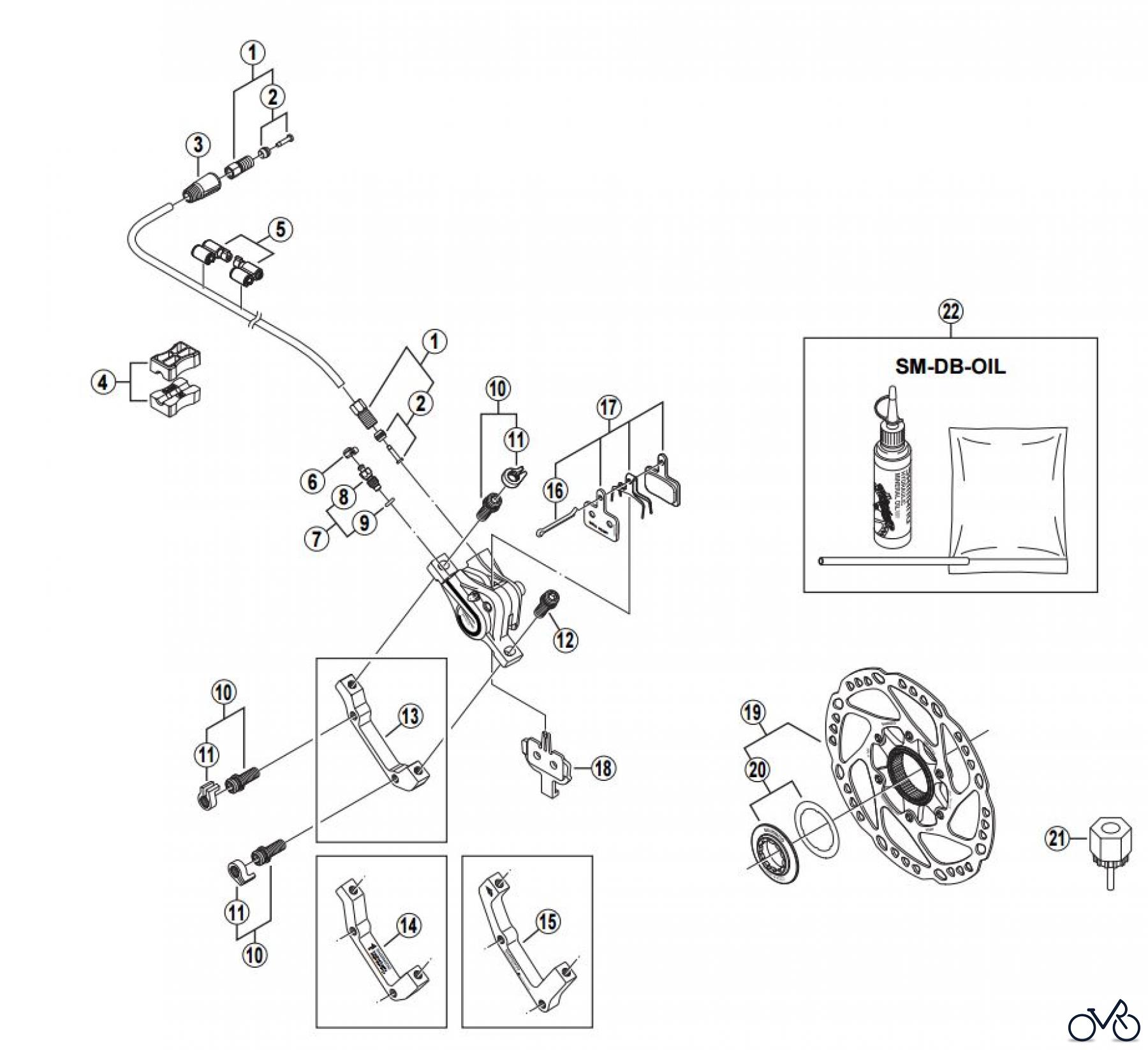

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M575-R, 2885A Rear Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8H298010	Connecting Bolt Unit Y8H298010
02	Y-8H298020	Olive & Connecting Insert Y8H298020
03	Y-8H203010	Cover Y8H203010
04	Y-8H198030	TL-BH61 Special Tool (2 pcs.) Y8H198030
05	Y-83098040	SM-HANG Hose Supporter A & B Y83098040
06	Y-8B214000	Bleed Nipple Cap Y8B214000
07	Y-8ES98020	Bleed Nipple & Seal Ring Y8ES98020
08	Y-8CL24100	Bleed Nipple Y8CL24100
09	Y-8B511000	O-Ring for Bleed Nipple Y8B511000
10	Y-8DS98010	Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y8DS98010
11	Y-8C511000	Stop Ring Y8C511000
12	Y-8C509020	Adapter Fixing Bolt (M6 x 18.7) Y8C509020
13	Y-8DB10100	A-Standard Mount Adapter for Disc Rotor 160 mm Y8DB10100
14	Y-81771100	A-Standard Mount Adapter (SM-MA-R180P/S) for Disc Rotor 180 mm Y81771100
15	Y-8CZ01110	A-Standard Mount Adapter (SM-MA-R203P/S) for Disc Rotor 203 mm Y8CZ01110
16	Y-8DB06000	Split Pin Y8DB06000
17	Y-8ES98030	Resin Pad (B01S) & Spring w/Split Pin Y8ES98030
17	Y-8FL98030	Metal Pad (E01S) & Spring w/Split Pin Y8FL98030
18	Y-8C515000	Pad Spacer Y8C515000
19	I-SMRT64	SM-RT64 Disc Rotor Unit ( 160 mm) ISMRT64
19	I-SMRT64M	SM-RT64M Disc Rotor Unit ( 180 mm) ISMRT64M
19	I-SMRT64L	SM-RT64L Disc Rotor Unit ( 203 mm) ISMRT64L
20	Y-8HS98030	Lock Ring & Washer Y8HS98030
21	Y-12009230	TL-LR15 Lock Ring Removal Tool Y12009230
22	Y-83998010	Mineral Oil Bleed Kit (50 ml) Y83998010
