Shimano BR-M575-F, 2867A Front Disc Brake

BR-M575-F, 2867A Front Disc Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-M575-F, 2867A Front Disc Brake

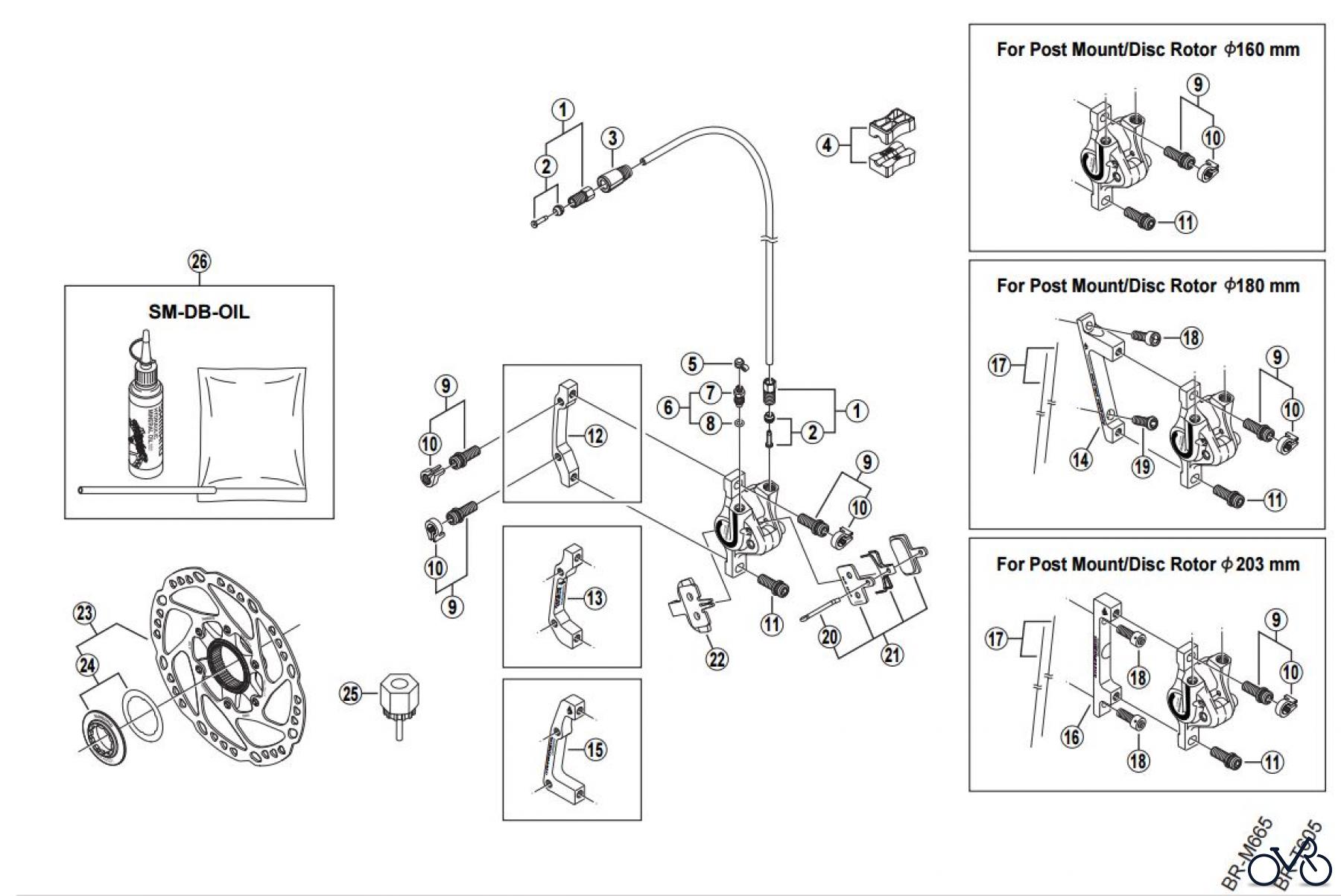

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M575-F, 2867A Front Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-8H298010Connecting Bolt Unit Y8H298010
02 Y-8H298020Olive & Connecting Insert Y8H298020
03 Y-8H203010Cover Y8H203010
04 Shimano TL-BH61 Special Tool (2 pcs.) Y-8H198030TL-BH61 Special Tool (2 pcs.) Y8H198030
05 Shimano Bleed Nipple Cap Y-8B214000Bleed Nipple Cap Y8B214000
06 Y-8ES98020Bleed Nipple & Seal Ring Y8ES98020
07 Y-8CL24100Bleed Nipple Y8CL24100
08 Shimano O-Ring for Bleed Nipple Y-8B511000O-Ring for Bleed Nipple Y8B511000
09 Shimano Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y-8DS98010Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y8DS98010
10 Y-8C511000Stop Ring Y8C511000
11 Y-8C509020Adapter Fixing Bolt (M6 x 18.7) Y8C509020
12 Y-8DB11100A-Standard Mount Adapter for Disc Rotor 160 mm Y8DB11100
13 Y-81731100A-Standard Mount Adapter (SM-MA-F180P/S) for Disc Rotor 180 mm Y81731100
14 Y-81734100Post Mount Adapter (SM-MA-F180P/P) for Disc Rotor 180 mm Y81734100
15 Y-8CZ01100A-Standard Mount Adapter (SM-MA-F203P/S) for Disc Rotor 203 mm Y8CZ01100
16 Y-8CZ01130Post Mount Adapter (SM-MA-F203P/P) for Disc Rotor 203 mm Y8CZ01130
17 Shimano Wire (2 pcs.) Y-8B298010Wire (2 pcs.) Y8B298010
18 Y-8B232200Adapter Fixing Bolt (M6 x 15) for Wire Type Y8B232200
19 Y-8AA43130Adapter Fixing Bolt (M6 x 15) Y8AA43130
20 Y-8DB06000Split Pin Y8DB06000
21 Y-8ES98030Resin Pad (B01S) & Spring w/Split Pin Y8ES98030
21 Y-8FL98010Metal Pad (E01S) & Spring w/Split Pin Y8FL98010
22 Y-8C515000Pad Spacer Y8C515000
23 I-SMRT64SM-RT64 Disc Rotor Unit ( 160 mm) ISMRT64
23 I-SMRT64MSM-RT64M Disc Rotor Unit ( 180 mm) ISMRT64M
23 I-SMRT64LSM-RT64L Disc Rotor Unit ( 203 mm) ISMRT64L
24 Y-8HS98030Lock Ring & Washer Y8HS98030
25 Shimano TL-LR15 Lock Ring Removal Tool Y-12009230TL-LR15 Lock Ring Removal Tool Y12009230
26 Y-83998010Mineral Oil Bleed Kit (50 ml) Y83998010
