Shimano BR-M570 DEORE LX V-Bremse von 1999

BR-M570 DEORE LX V-Bremse von 1999 BR Brake - Bremse

9812-1793
Shimano BR Brake - Bremse BR-M570 DEORE LX V-Bremse von 1999

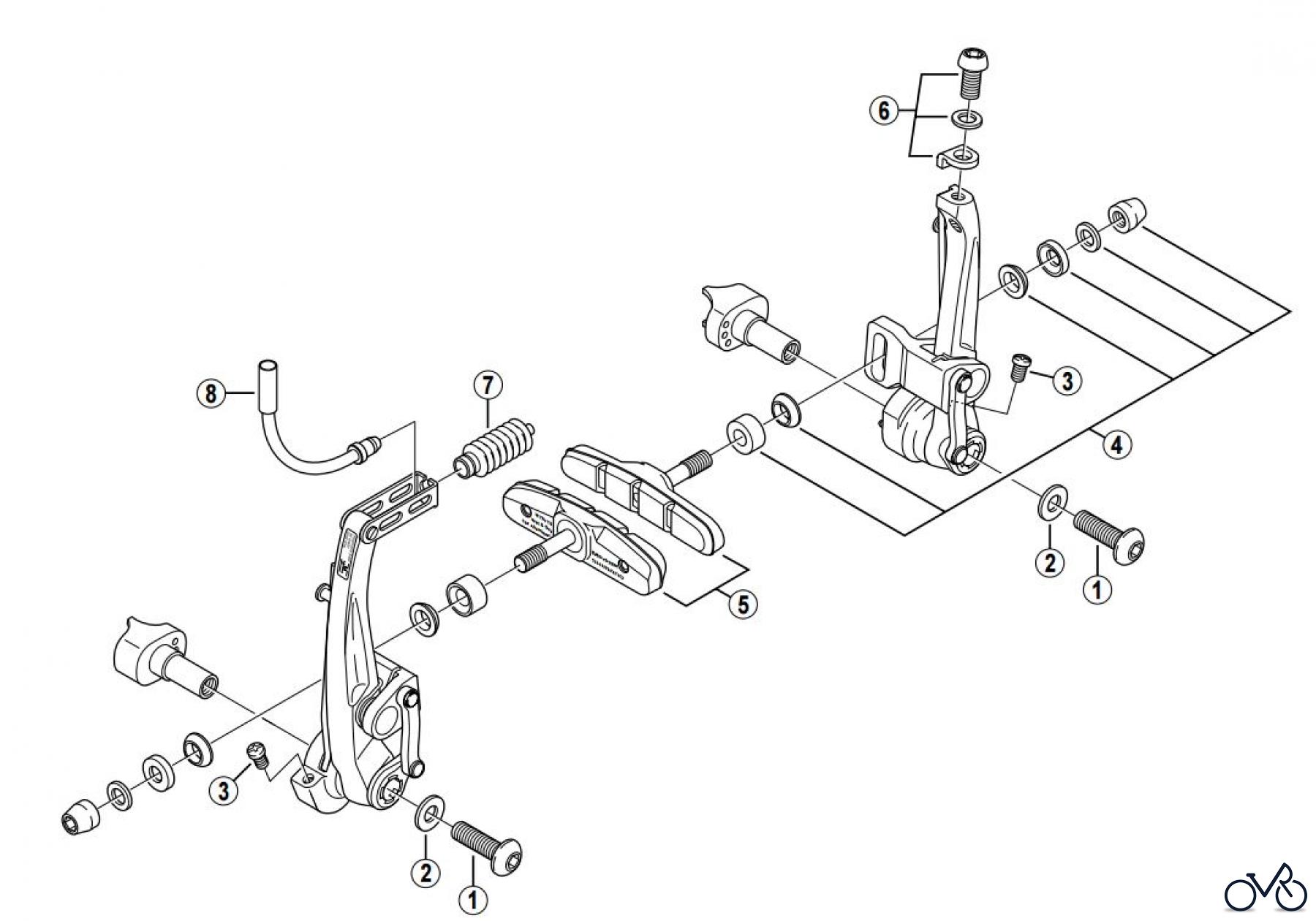

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M570 DEORE LX V-Bremse von 1999. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-84F10400Befestigungsschraube (M6 x 22) Y84F10400
02 Y-8BV31000Unterlegscheibe Y8BV31000
03 Y-8BP16100Einstellschraube für Federspannung (M4 x 8) Y8BP16100
04 Y-8AA98050Befestigungsmuttereinheit für Bremsschuh Y8AA98050
05 Y-8BM98100Bremsschuhe (Paar) Y8BM98100
06 Y-8AA98060Kabelklemmschraube komplett (M6 x 11.5) Y8AA98060
07 Y-8BP14000Faltenbalg Y8BP14000
08 Y-8AA98070Zugführung (90°) Y8AA98070
08 Y-8AA98080Zugführung (135°) Y8AA98080
08 Y-8AA98120Zugführung (45°) Y8AA98120
