Shimano BR-M485-F-2734A Front Disc Brake

BR-M485-F-2734A Front Disc Brake BR Brake - Bremse

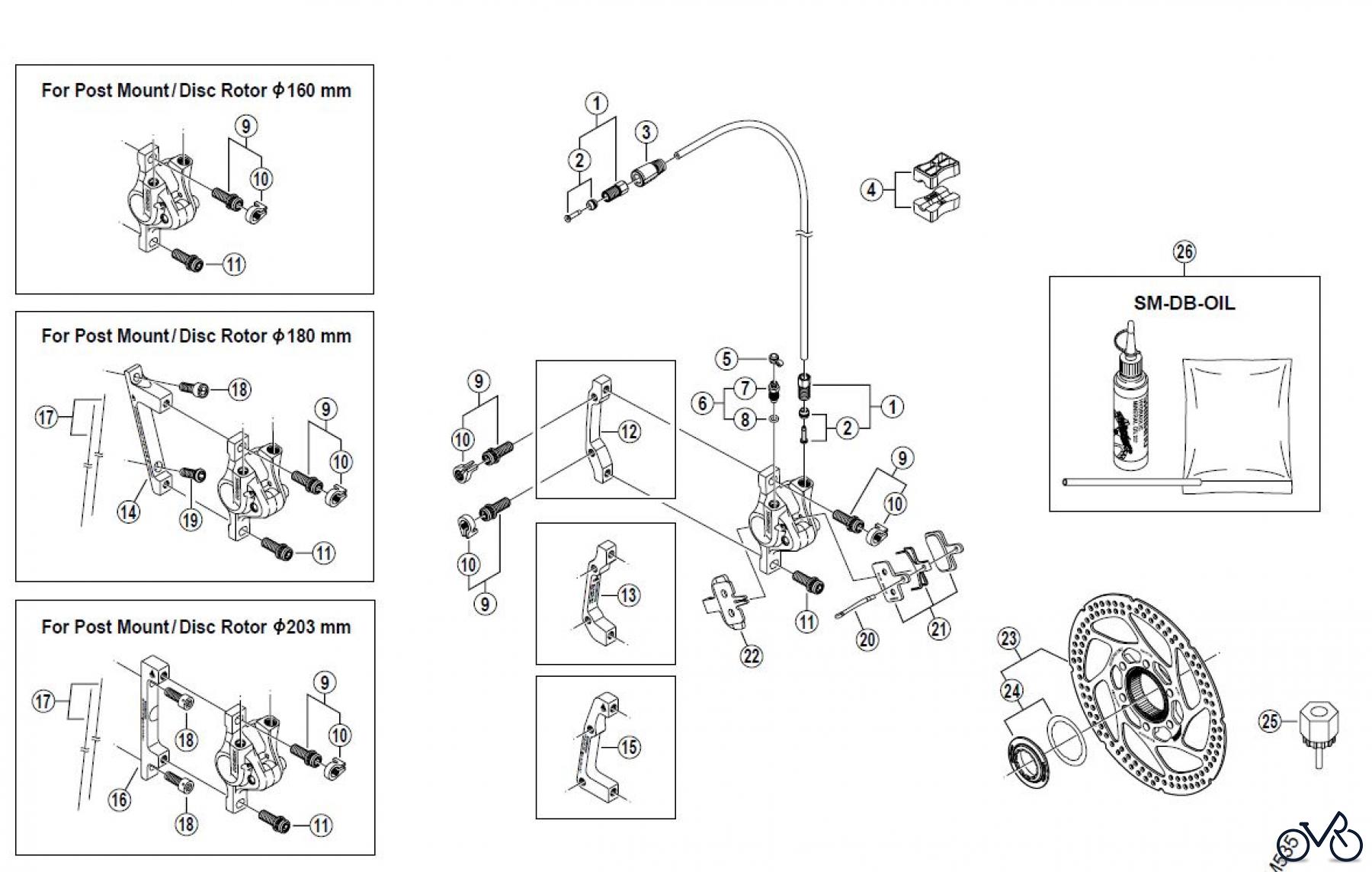

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M485-F-2734A Front Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8H298010	Connecting Bolt Unit Y8H298010
02	Y-8H298020	Olive & Connecting Insert Y8H298020
03	Y-8H203010	Cover Y8H203010
04	Y-8H198030	TL-BH61 Special Tool (2 pcs.) Y8H198030
05	Y-8B214000	Bleed Nipple Cap Y8B214000
06	Y-8ES98020	Bleed Nipple & Seal Ring Y8ES98020
07	Y-8CL24100	Bleed Nipple Y8CL24100
08	Y-8B511000	O-Ring for Bleed Nipple Y8B511000
09	Y-8DS98010	Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y8DS98010
10	Y-8C511000	Stop Ring Y8C511000
11	Y-8C509020	Adapter Fixing Bolt (M6 x 18.7) Y8C509020
12	Y-8DB11100	A-Standard Mount Adapter for Disc Rotor 160 mm Y8DB11100
13	Y-81731100	A-Standard Mount Adapter (SM-MA-F180P/S) for Disc Rotor 180 mm Y81731100
14	Y-81734100	Post Mount Adapter (SM-MA-F180P/P) for Disc Rotor 180 mm Y81734100
15	Y-8CZ01100	A-Standard Mount Adapter (SM-MA-F203P/S) for Disc Rotor 203 mm Y8CZ01100
16	Y-8CZ01130	Post Mount Adapter (SM-MA-F203P/P) for Disc Rotor 203 mm Y8CZ01130
17	Y-8B298010	Wire (2 pcs.) Y8B298010
18	Y-8B232200	Adapter Fixing Bolt (M6 x 15) for Wire Type Y8B232200
19	Y-8AA43130	Adapter Fixing Bolt (M6 x 15) Y8AA43130
20	Y-8DB06000	Split Pin Y8DB06000
21	Y-8ES98010	Resin Pad (B01S) & Spring Y8ES98010
22	Y-8C515000	Pad Spacer Y8C515000
23	E-SMRT53	SM-RT53 Disc Rotor Unit ( 160 mm) ESMRT53
23	E-SMRT53M	SM-RT53M Disc Rotor Unit ( 180 mm) ESMRT53M
23	E-SMRT53L	SM-RT53L Disc Rotor Unit ( 203 mm) ESMRT53L
24	Y-8HS98030	Lock Ring & Washer Y8HS98030
25	Y-12009230	TL-LR15 Lock Ring Removal Tool Y12009230
26	Y-83998010	Mineral Oil Bleed Kit (50 ml) Y83998010
