Shimano BR-M475-2179B

BR-M475-2179B BR Brake - Bremse

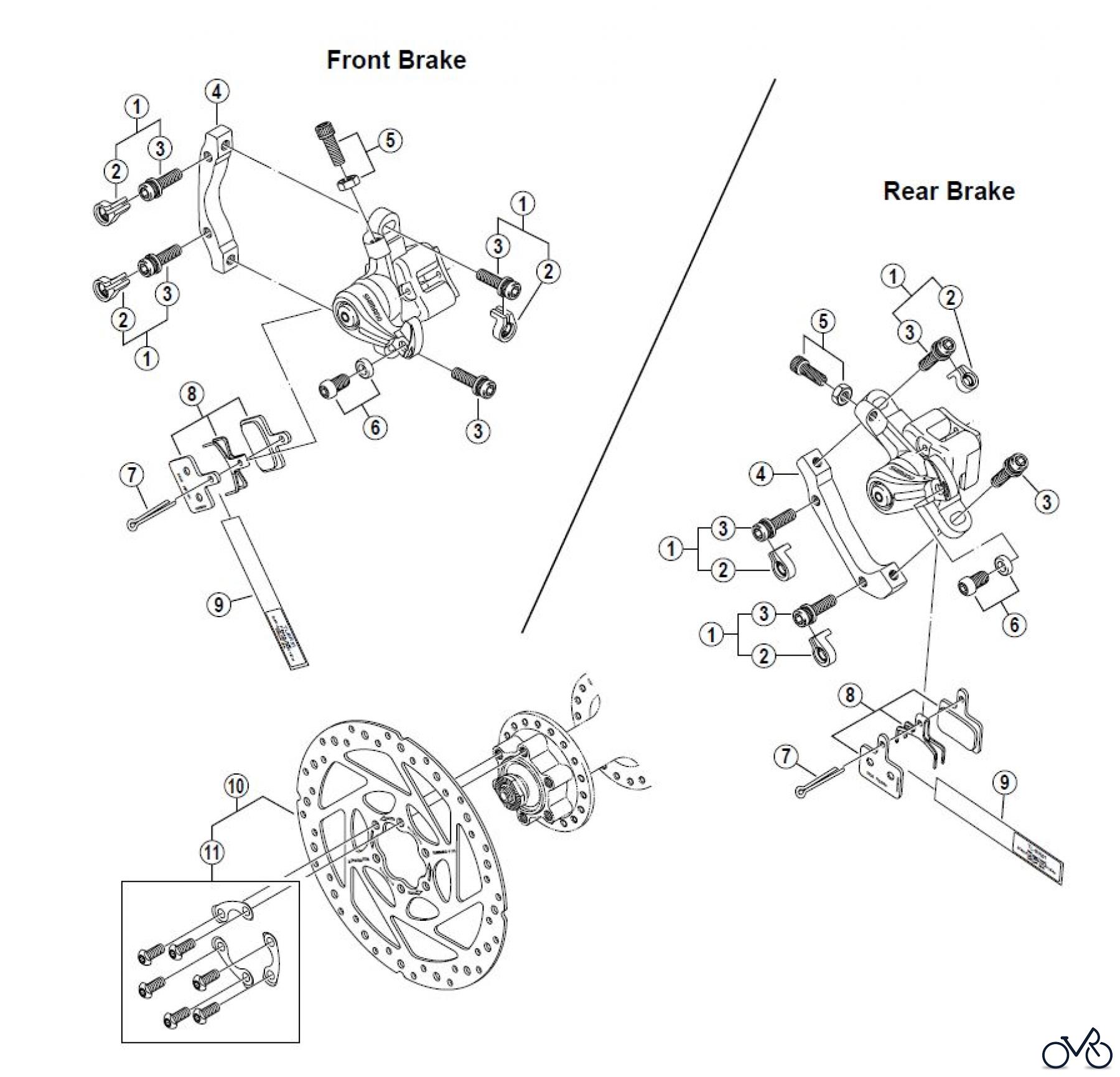

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M475-2179B. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8DS98010	Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y8DS98010
02	Y-8C511000	Stop Ring Y8C511000
03	Y-8C509020	Adapter Fixing Bolt (M6 x 18.7) Y8C509020
04	Y-8C508000	Adapter for Front Y8C508000
04	Y-8C923000	Adapter for Rear Y8C923000
05	Y-8C998020	Cable Adjusting Bolt & Nut Y8C998020
06	Y-8B098020	Cable Fixing Bolt (M6 x 11.5) & Plate Y8B098020
07	Y-8C505000	Split Pin Y8C505000
08	Y-8C998010	Resin Pad (M08) & Spring Y8C998010
09	Y-8B698060	Spacer (TL-BR51) Y8B698060
10	Y-8HY98010	SM-RT61 Disc Rotor Unit ( 160 mm) Y8HY98010
11	Y-81898030	Disc Rotor Fixing Bolt & Plate Y81898030
