Shimano BR-M475-2179A Disc Brake Rear and Front

BR-M475-2179A Disc Brake Rear and Front BR Brake - Bremse

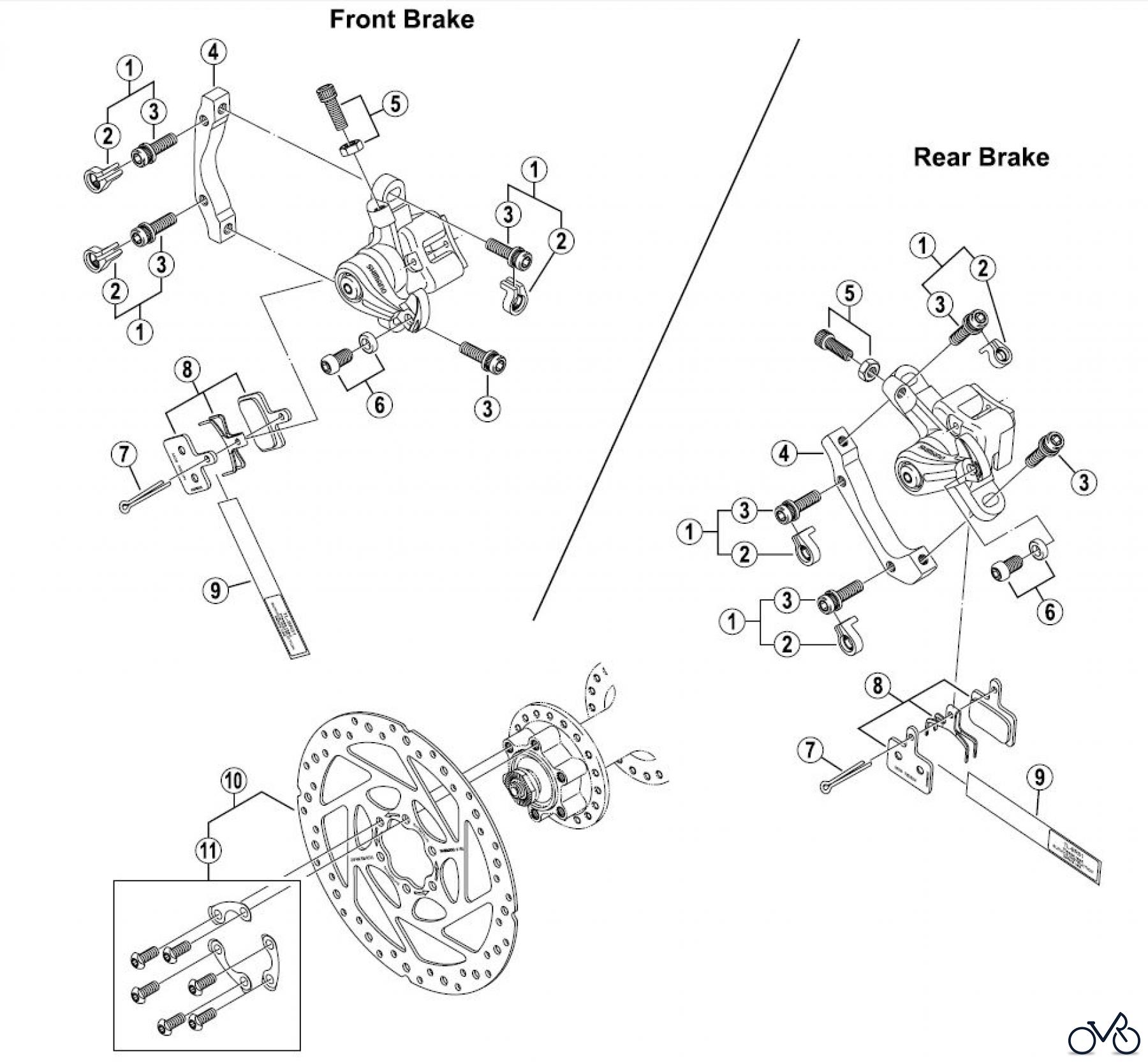

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M475-2179A Disc Brake Rear and Front. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8C498010	Befestigungsschraube mit Stop-Ring Y8C498010
02	Y-8C511000	Stop Ring Y8C511000
03	Y-8C509000	Adapter Fixing Bolt Y8C509000
4	Y-8C08000	Adapter for Front Y8C08000
4	Y-8C923000	Adapter Rear Y8C923000
05	Y-8C998020	KABELEINSTELLSCHRAUBE M. MUTTER Y8C998020
06	Y-8B098020	ZUGKLEMMSCHRAUBE M.KLEMMPLATTE Y8B098020
07	Y-8C505000	SICHERUNGSSPLINT Y8C505000
08	Y-8C998010	Resin Pad (M08) & Spring Y8C998010
09	Y-8B698060	MONTAGEHILFE Y8B698060
10	Y-8HY98010	Disc Rotor Unit 160mm Y8HY98010
11	Y-81898030	Disc Rotor Fixing Bolt & Plate Y81898030
