Shimano BR-M422 V Brake

BR-M422 V Brake BR Brake - Bremse

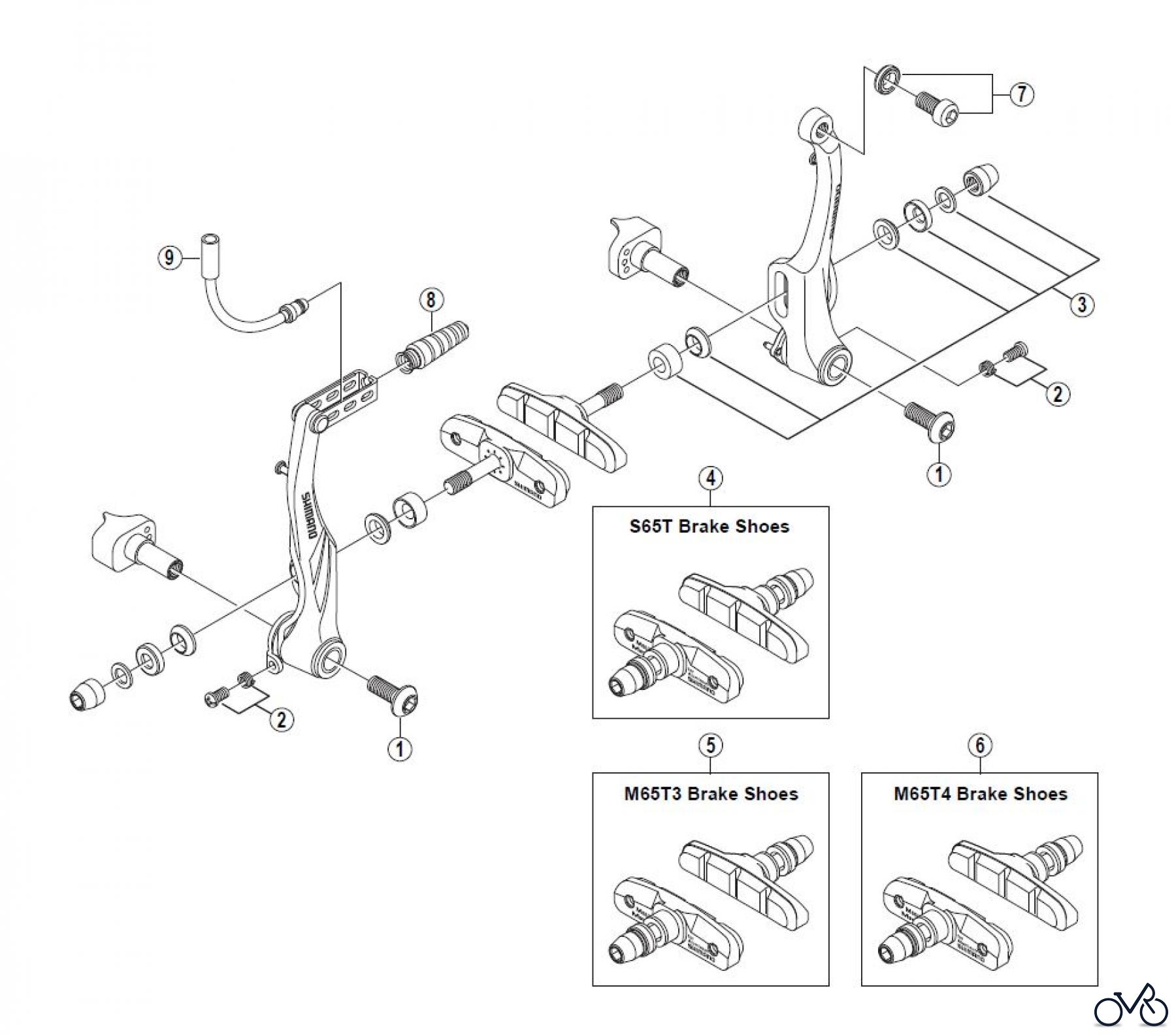

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M422 V Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-82N18800	Link Fixing Bolt (M6 x 16) Y82N18800
01	Y-82N18500	Link Fixing Bolt (M6 x 25) Y82N18500
02	Y-8B098010	Spring Tension Adjustment Screw (M4x 7) & Stopper Y8B098010
03	Y-8B098030	Shoe Fixing Nut Unit Y8B098030
04	Y-8GP9810A	S65T Brake Shoe Set (10 pairs) Y8GP9810A
05	Y-8DW9801A	M65T3 Brake Shoe Set (10 pairs) Y8DW9801A
06	Y-8DW9802A	M65T4 Brake Shoe Set (10 pairs) Y8DW9802A
07	Y-8B098020	Cable Fixing Bolt (M6 x 11.5) & Plate Y8B098020
08	Y-8FG05000	Boot Y8FG05000
09	Y-8AA98070	Inner Cable Lead Unit (90: Middle) Y8AA98070
09	Y-8AA98080	Inner Cable Lead Unit (135: Long) Y8AA98080
09	Y-8AA98120	Inner Cable Lead Unit (45: Short) Y8AA98120
