Shimano BR-M375 -R -3230 Rear Disc Brake

BR-M375 -R -3230 Rear Disc Brake BR Brake - Bremse

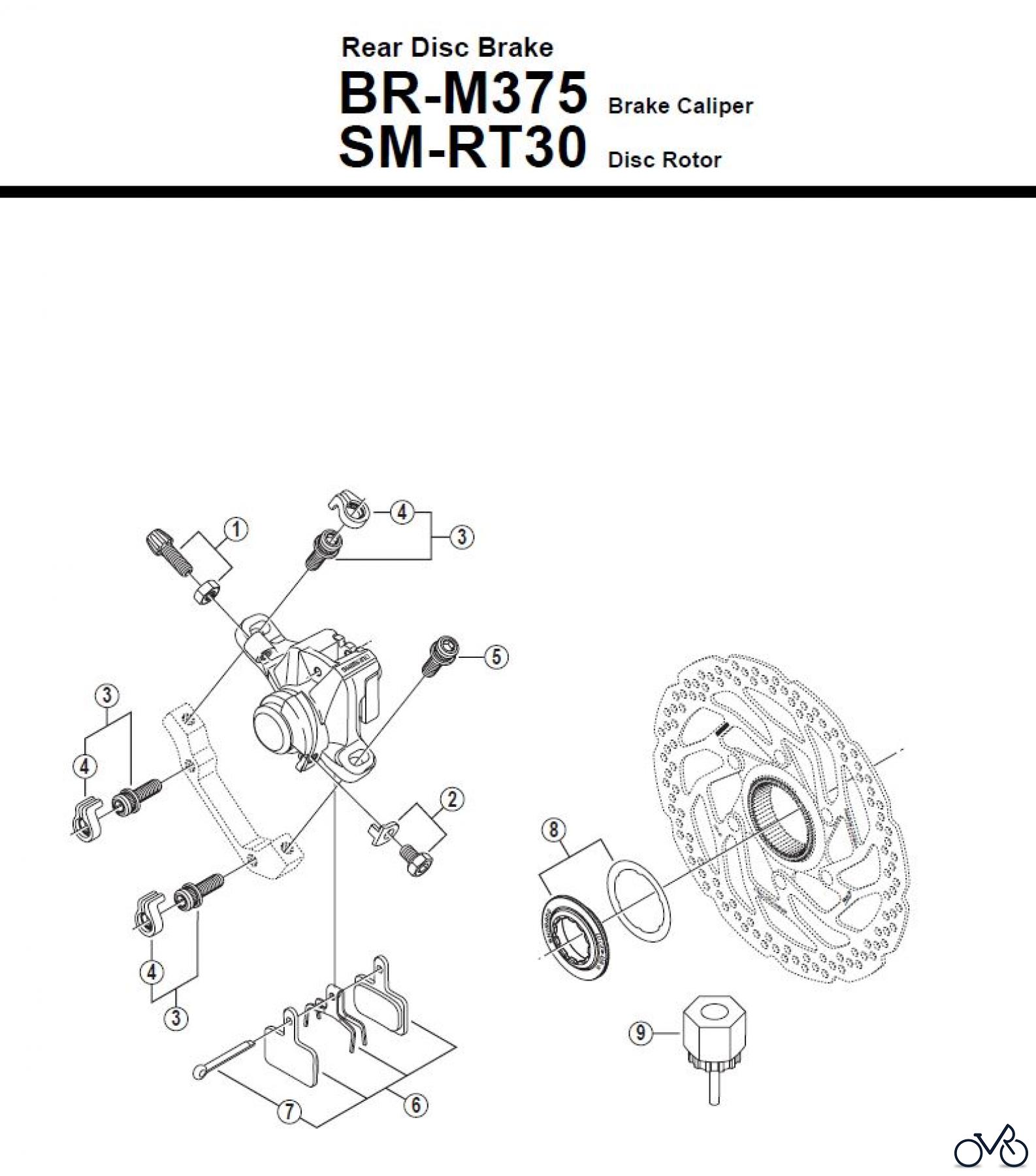

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-M375 -R -3230 Rear Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y8JW98010	Cable Adjusting Bolt & Nut Y8JW98010
02	Y8JW98020	Cable Fixing Bolt (M6 x 9) & Plate Y8JW98020
03	Y8DS98010	Adapter Fixing Bolt (M6 x 18.7) & Stop Ring Y8DS98010
04	Y8C511000	Stop Ring Y8C511000
05	Y8C509020	Adapter Fixing Bolt (M6 x 18.7) Y8C509020
06	Y8FH98030	Resin Pad (B01S) & Spring w/Split Pin Y8FH98030
07	Y8C505000	Split Pin Y8C505000
08	Y8JX98010	Lock Ring & Washer Y8JX98010
09	Y12009230	TL-LR15 Lock Ring Removal Tool Y12009230
