Shimano BR-IM86-F -3284

BR-IM86-F -3284 BR Brake - Bremse

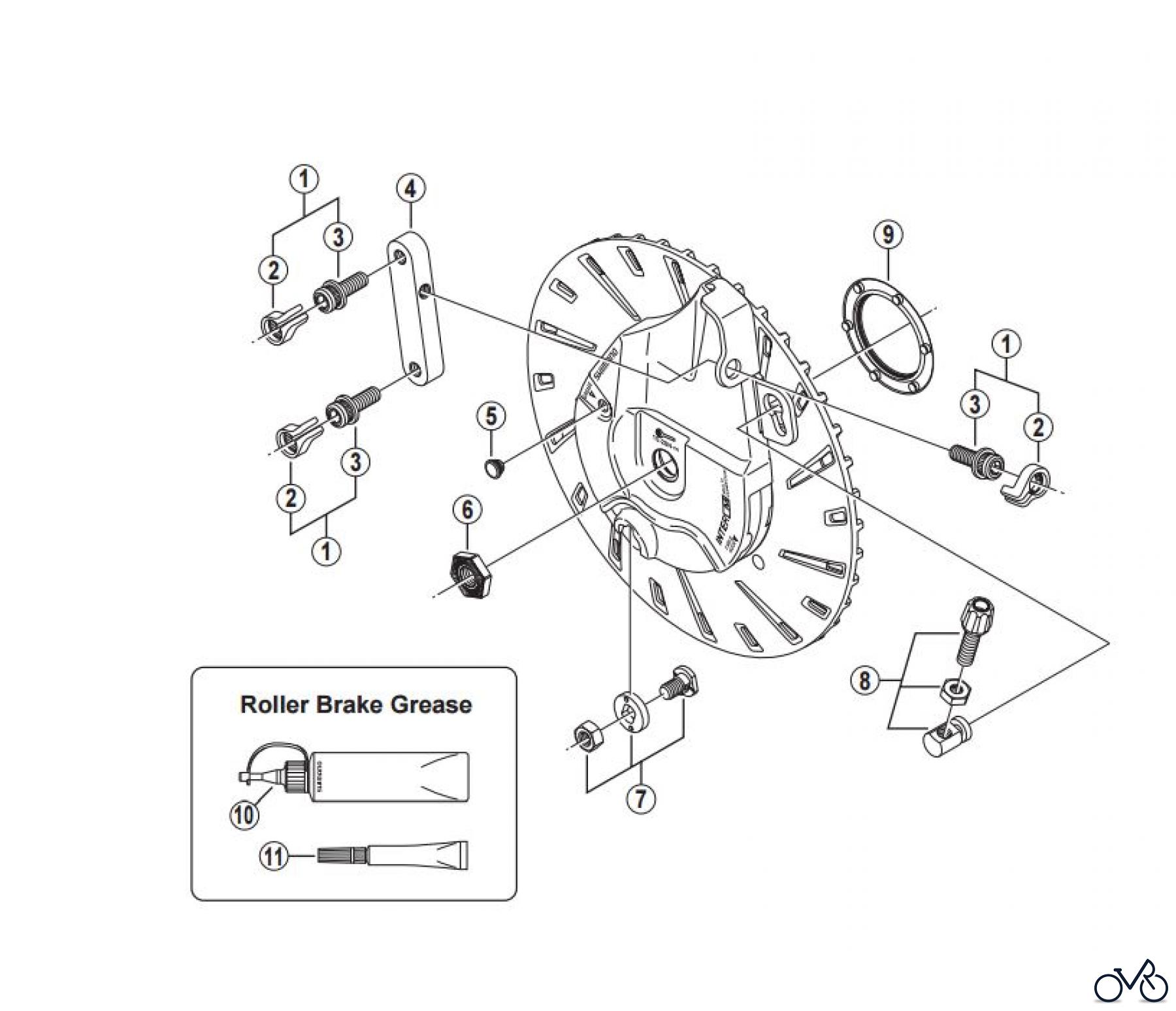

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-IM86-F -3284. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y8JL98010	Adapter Fixing Bolt (M6 x 17.2) & Stop Ring Y8JL98010
02	Y8C511000	Stop Ring Y8C511000
03	Y8JL08000	Adapter Fixing Bolt (M6 x 17.2) Y8JL08000
04	Y8JL07000	Adapter Y8JL07000
05	Y75F11000	Grease Hole Cap Y75F11000
06	Y22V05020	Brake Unit Fixing Nut (M9 x 3.5 mm) Y22V05020
06	Y22T05000	Brake Unit Fixing Nut (M10 x 4 mm) Y22T05000
07	Y8G798010	Inner Cable Fixing Bolt Unit Y8G798010
08	Y75P98080	Cable Adjusting Bolt Unit Y75P98080
09	Y8G717000	Seal Ring Y8G717000
10	Y04120400	Roller Brake Grease (Net. 100g) Y04120400
11	Y04140020	Roller Brake Grease (Net. 10g) Y04140020
