Shimano BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB

BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB BR Brake - Bremse

Shimano BR Brake - Bremse BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB

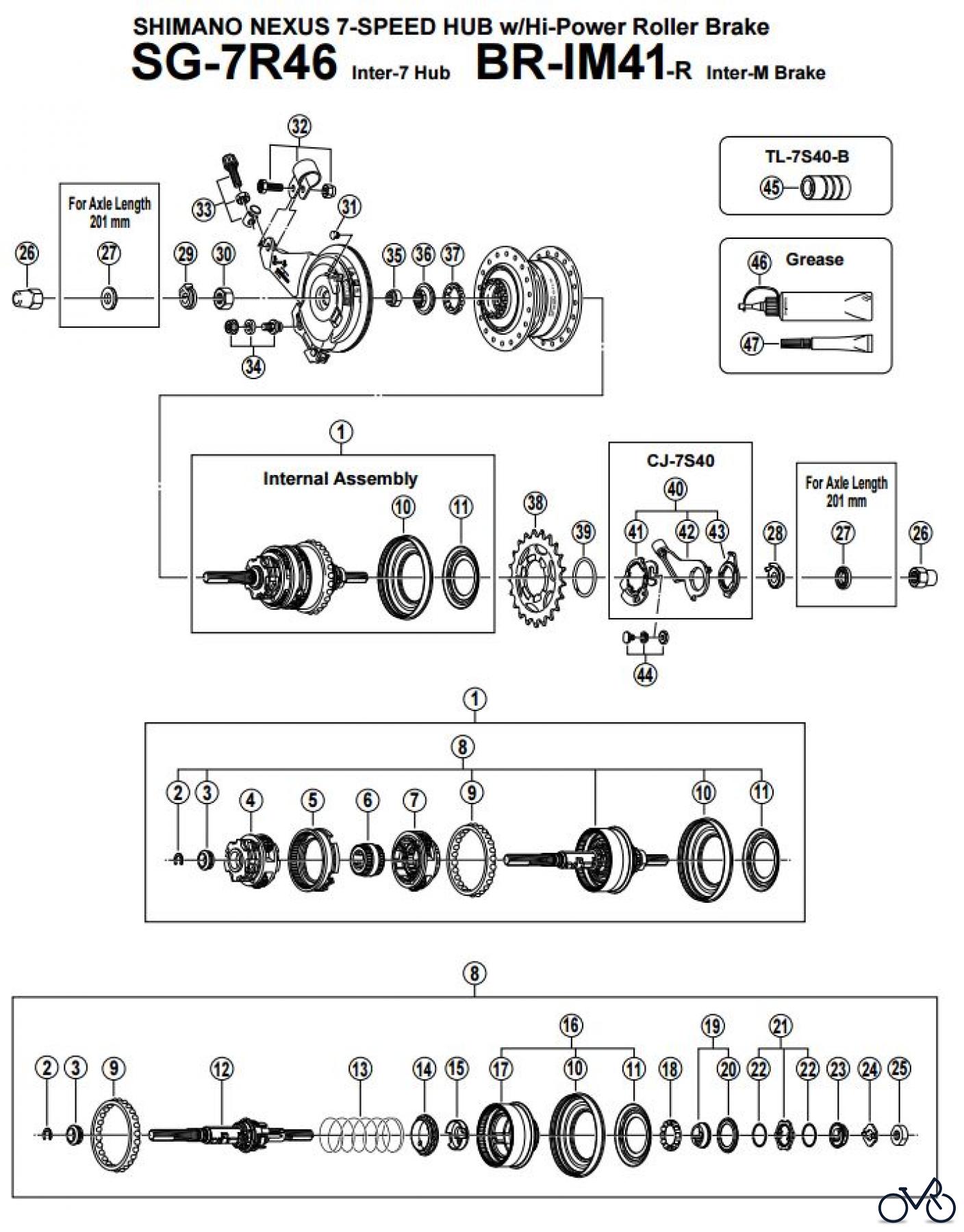

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-IM41-R -2128 SHIMANO NEXUS 7-SPEED HUB. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-35D98010Internal Assembly (Axle Length 182 mm) Y35D98010
01 Y-35D98020Internal Assembly (Axle Length 201 mm) Y35D98020
02 Shimano Stop Ring for Carrier Guide 2Y-30807000Stop Ring for Carrier Guide 2 Y30807000
03 Y-33E03000Carrier Guide 2 Y33E03000
04 Y-33E98070Carrier Unit 2 Y33E98070
05 Y-30898040Ring Gear Unit 2 Y30898040
06 Y-33F98060Sun Gear Unit 2 & 3 Y33F98060
07 Y-33098060Carrier Unit 1 Y33098060
08 Y-35D98030Carrier guide 2 / Axle & Driver Unit (Axle Length 182 mm) Y35D98030
08 Y-35D98040Carrier guide 2 / Axle & Driver Unit (Axle Length 201 mm) Y35D98040
09 Shimano Ball Retainer M (3/16" x 26)Y-33091800Ball Retainer M (3/16" x 26) Y33091800
10 Shimano Right Hand Dust Cap BY-35C07000Right Hand Dust Cap B Y35C07000
11 Shimano Right Hand Dust Cap CY-33Z26000Right Hand Dust Cap C Y33Z26000
12 Y-34L98050Axle Unit (Axle Length 182 mm) Y34L98050
12 Y-34L98060Axle Unit (Axle Length 201 mm) Y34L98060
13 Shimano Return Spring AY-33024000Return Spring A Y33024000
14 Y-33Z10000Gear Shifting Cam Y33Z10000
15 Y-33Z11000Feed Cam Y33Z11000
16 Y-35D98050Driver Unit w/Right Hand Dust Cap B & C Y35D98050
17 Y-35D98060Driver Unit Y35D98060
18 Shimano Ball Retainer F (3/16" x 12)Y-33091600Ball Retainer F (3/16" x 12) Y33091600
19 Y-33Z98030Right Hand Cone w/Seal Y33Z98030
20 Y-33Z28000Right Hand Cone Seal Y33Z28000
21 Shimano Driver Plate w/SealY-33F98040Driver Plate w/Seal Y33F98040
22 Shimano Driver Plate SealY-33012000Driver Plate Seal Y33012000
23 Shimano Lock WasherY-33E98120Lock Washer Y33E98120
24 Shimano Stop WasherY-33Z08000Stop Washer Y33Z08000
25 Y-30803020Right Hand Lock Nut (6 mm) Y30803020
26 Shimano Cap Nut (3/8")Y-31414010Cap Nut (3/8") Y31414010
27 Y-22006040Washer (3.2 mm) for Axle Length 201 mm Y22006040
28 Shimano Non-turn Washer 5R (Yellow)Y-33Z20500Non-turn Washer 5R (Yellow) Y33Z20500
28 Shimano Non-turn Washer 6R (Silver)Y-33M39600Non-turn Washer 6R (Silver) Y33M39600
28 Shimano Non-turn Washer 7R (Black)Y-33M39700Non-turn Washer 7R (Black) Y33M39700
29 Shimano Non-turn Washer 5L (Brown)Y-33M39510Non-turn Washer 5L (Brown) Y33M39510
29 Y-33M39610Non-turn Washer 6L (White) Y33M39610
29 Shimano Non-turn Washer 7L (Gray)Y-33M39710Non-turn Washer 7L (Gray) Y33M39710
30 Shimano Brake Unit Fixing Nut (8.2 mm)Y-75V13000Brake Unit Fixing Nut (8.2 mm) Y75V13000
31 Y-75V16010Grease Hole Cap Y75V16010
32 Y-33F98090Brake Arm Clip Unit (5/8") Y33F98090
32 Y-33F98100Brake Arm Clip Unit (3/4") Y33F98100
33 Y-75P98030Brake Cable Adjusting Bolt Unit Y75P98030
34 Y-75M98070Inner Cable Fixing Bolt Unit Y75M98070
35 Shimano Lock Nut for Left Hand ConeY-31Z06020Lock Nut for Left Hand Cone Y31Z06020
36 Shimano Left Hand Cone w/Dust CapY-30898070Left Hand Cone w/Dust Cap Y30898070
37 Shimano Ball Retainer I (3/16" x 11)Y-30898080Ball Retainer I (3/16" x 11) Y30898080
38 Shimano Sprocket Wheel 16T (Silver)Y-32203220Sprocket Wheel 16T (Silver) Y32203220
38 Shimano Sprocket Wheel 18T (Silver)Y-32203420Sprocket Wheel 18T (Silver) Y32203420
38 Shimano Sprocket Wheel 19T (Silver)Y-32203520Sprocket Wheel 19T (Silver) Y32203520
38 Shimano Sprocket Wheel 20T (Silver)Y-32203620Sprocket Wheel 20T (Silver) Y32203620
38 Shimano Sprocket Wheel 21T (Silver)Y-33060000Sprocket Wheel 21T (Silver) Y33060000
38 Shimano Sprocket Wheel 22T (Silver)Y-33060100Sprocket Wheel 22T (Silver) Y33060100
39 Y-32120010Snap Ring C Y32120010
40 Y-74Y98010CJ-7S40 Cassette Joint Unit Y74Y98010
41 Y-74Y02000Cassette Joint Pulley Y74Y02000
42 Y-74Y98020Cassette Joint Bracket Y74Y98020
43 Shimano Cassette Joint Fixing RingY-33Z98020Cassette Joint Fixing Ring Y33Z98020
44 Shimano Inner Cable Fixing Bolt Unit for CJ-7S40Y-74Y98030Inner Cable Fixing Bolt Unit for CJ-7S40 Y74Y98030
45 Shimano TL-7S40-B Right Hand Cone ToolY-30889000TL-7S40-B Right Hand Cone Tool Y30889000
46 Y-04120600Internal Hub Grease (Net. 100g) Y04120600
46 Y-04120400Roller Brake Grease (Net. 100g) Y04120400
47 Y-04140020Roller Brake Grease (Net. 10g) Y04140020
