Shimano BR-CX77 -3644 Disc Brake

BR-CX77 -3644 Disc Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-CX77 -3644 Disc Brake

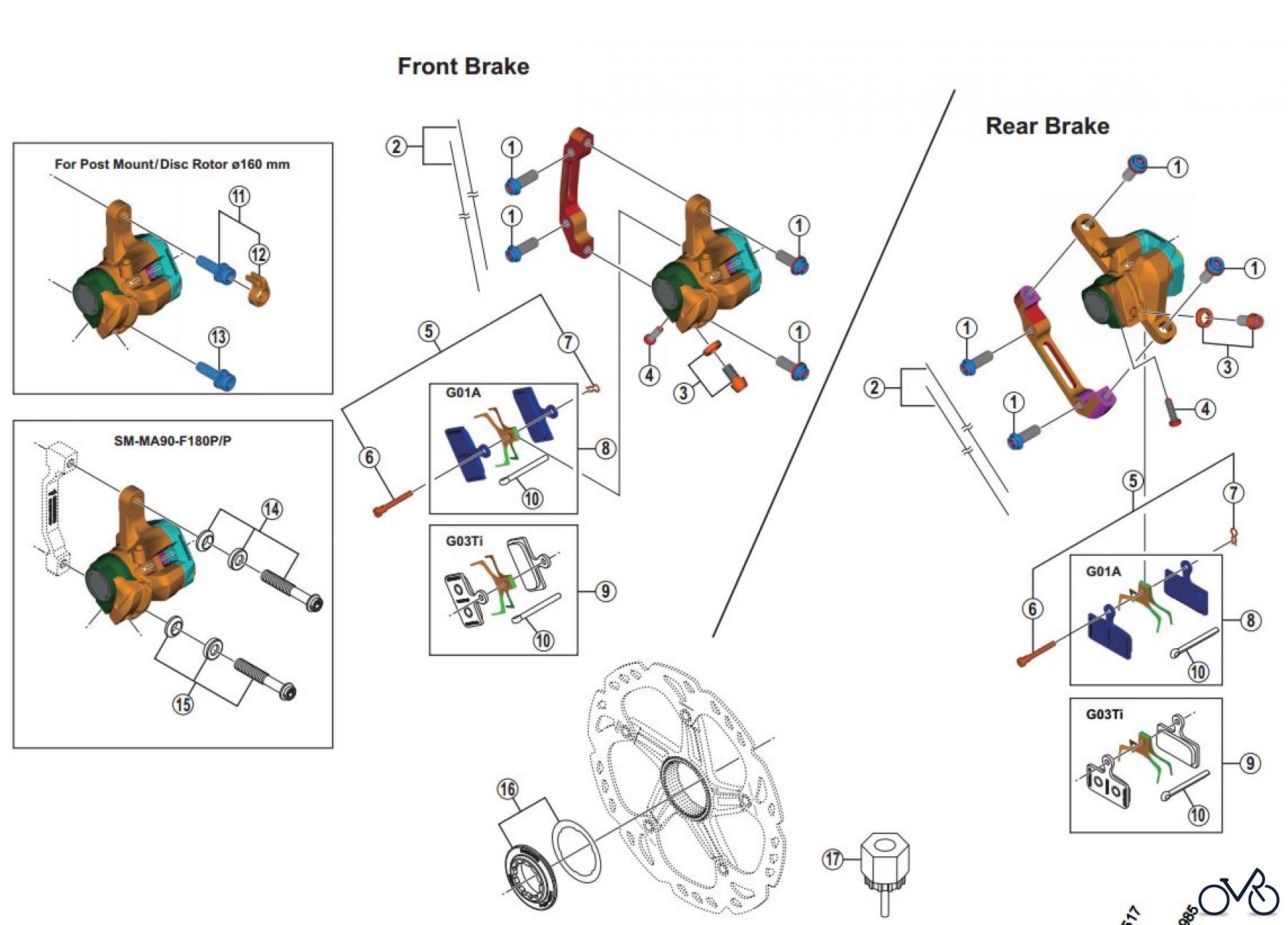

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-CX77 -3644 Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y8J721000Caliper Fixing Bolt (M6 x 15.2) Y8J721000
02 Y8B298010Wire (2 pcs.) Y8B298010
03 Y8KZ98010Cable Fixing Bolt (M6 x 10.5) & Plate Y8KZ98010
04 Y8KZ14000Arm Adjusting Bolt Y8KZ14000
05 Y8L498010Pad Axle & Snap Retainer Y8L498010
06 Y8L410000Pad Axle Y8L410000
07 Y8B212000Snap Retainer Y8B212000
08 Y8J79803AResin Pad (G01A) & Spring w/Split Pin Y8J79803A
09 Y8J79804AMetal Pad (G03Ti) & Spring w/Split Pin Y8J79804A
10 Y8DB06100Split Pin Y8DB06100
11 Y8DS98010Caliper Fixing Bolt (M6 x 18.7) & Snap Ring Y8DS98010
12 Y8C511000Snap Ring Y8C511000
13 Y8C509020Caliper Fixing Bolt (M6 x 18.7) Y8C509020
14 Y8JB98010Caliper Fixing Bolt Unit (M6 x 36.3) Y8JB98010
15 Y8JB98020Caliper Fixing Bolt Unit (M6 x 30.5) Y8JB98020
16 Y8K198010Lock Ring & Washer Y8K198010
17 Y12009230TL-LR15 Lock Ring Removal Tool Y12009230
