Shimano BR-CX70 -3223A CYCLOCROSS Cantilever Brake

BR-CX70 -3223A CYCLOCROSS Cantilever Brake BR Brake - Bremse

Shimano BR Brake - Bremse BR-CX70 -3223A CYCLOCROSS Cantilever Brake

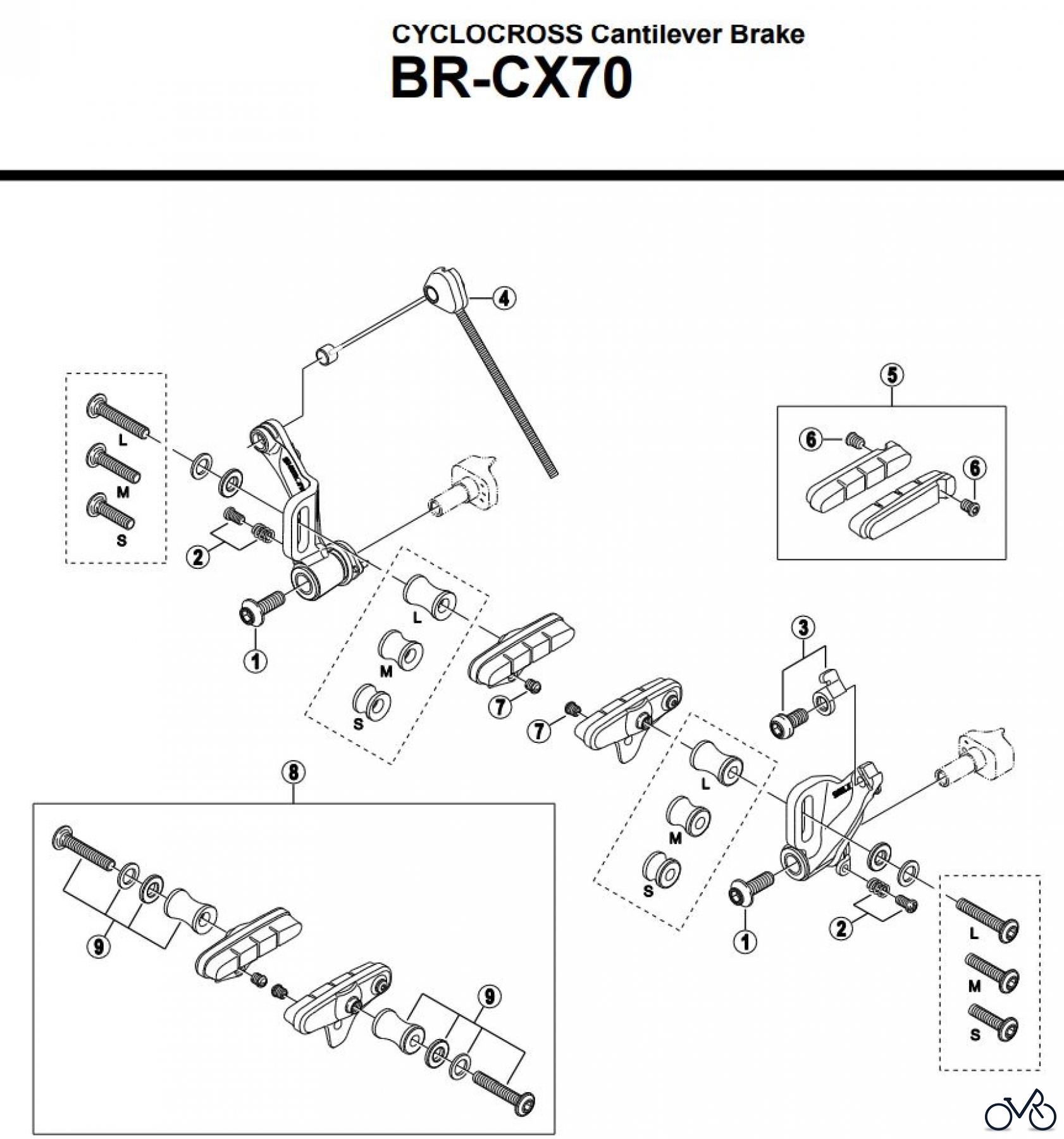

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-CX70 -3223A CYCLOCROSS Cantilever Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y8EM07210Link Fixing Bolt (M6 x 25) Y8EM07210
01 Y8EM07200Link Fixing Bolt (M6 x 16) Y8EM07200
02 Y8B098010Spring Tension Adjustment Screw (M4 x 7) & Stopper Y8B098010
03 Y8K498010Cable Fixing Bolt (M6 x 11.5) & Plate Y8K498010
04 Y8K498020Unit Link Y8K498020
05 Y8FA98130R55C+1 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8FA98130
05 Y8FN98090R55C3 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8FN98090
05 Y8FN98140R55C3 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim Y8FN98140
06 Y8FA17000Fixing Bolt (M4 x 5.5) Y8FA17000
07 Y8FA16000Tire Guide Y8FA16000
08 Y8K498030R55C+1 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (L) & R-Washers (L Y8K498030
08 Y8K498040R55C+1 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (M) & R-Washers (M) Y8K498040
08 Y8K498050R55C+1 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (S) & R-Washers (S) Y8K498050
08 Y8K498060R55C3 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (L) & R-Washers (L) Y8K498060
08 Y8K498070R55C3 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (M) & R-Washers (M) Y8K498070
08 Y8K498080R55C3 Cartridge-Type Brake Shoe Set (Pair) / Shoe Fixing Bolts (S) & R-Washers (S) Y8K498080
09 Y8K498090Shoe Fixing Bolt (L) & R-Washer (L) Unit Y8K498090
09 Y8K498100Shoe Fixing Bolt (M) & R-Washer (M) Unit Y8K498100
09 Y8K498110Shoe Fixing Bolt (S) & R-Washer (S) Unit Y8K498110
