Shimano BR-9010-R -3462 DURA-ACE Caliper Brake For Rear

BR-9010-R -3462 DURA-ACE Caliper Brake For Rear BR Brake - Bremse

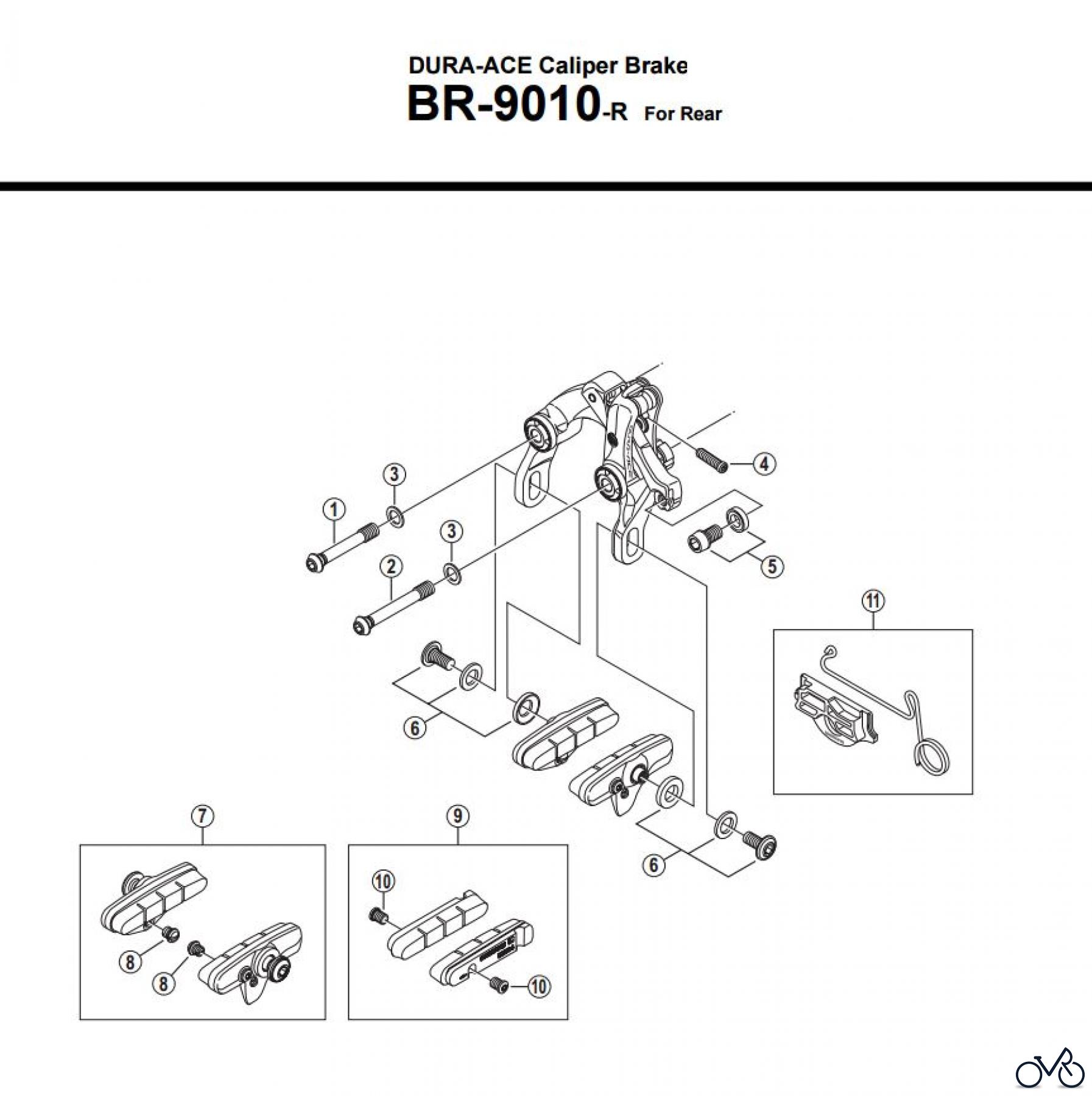

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-9010-R -3462 DURA-ACE Caliper Brake For Rear. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y8L324000	Fixing Bolt C (M6 x 38) Y8L324000
02	Y8L323000	Fixing Bolt Y (M6 x 43) Y8L323000
03	Y8BC08000	Arm Washer Y8BC08000
04	Y6AM82400	EC-Bolt (M4 x 13.5) Y6AM82400
05	Y8L398010	Cable Fixing Bolt (M6 x 8.5) & Plate Y8L398010
06	Y8L298040	Shoe Fixing Bolt Unit (M5 x 11.2) Y8L298040
07	Y8L398020	R55C4 Cartridge-Type Brake Shoe Set (Pair) Y8L398020
08	Y8FA16000	Tire Guide Y8FA16000
09	Y8L298060	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8L298060
09	Y8L298070	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim Y8L298070
09	Y8L398030	R55C4-1 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim Y8L398030
10	Y8L227000	Fixing Bolt (M4 x 5.5) Y8L227000
11	Y8L398040	Assembly Jig Y8L398040
