Shimano BR-6810-R -3601 ULTEGRA Caliper Brake

BR-6810-R -3601 ULTEGRA Caliper Brake BR Brake - Bremse

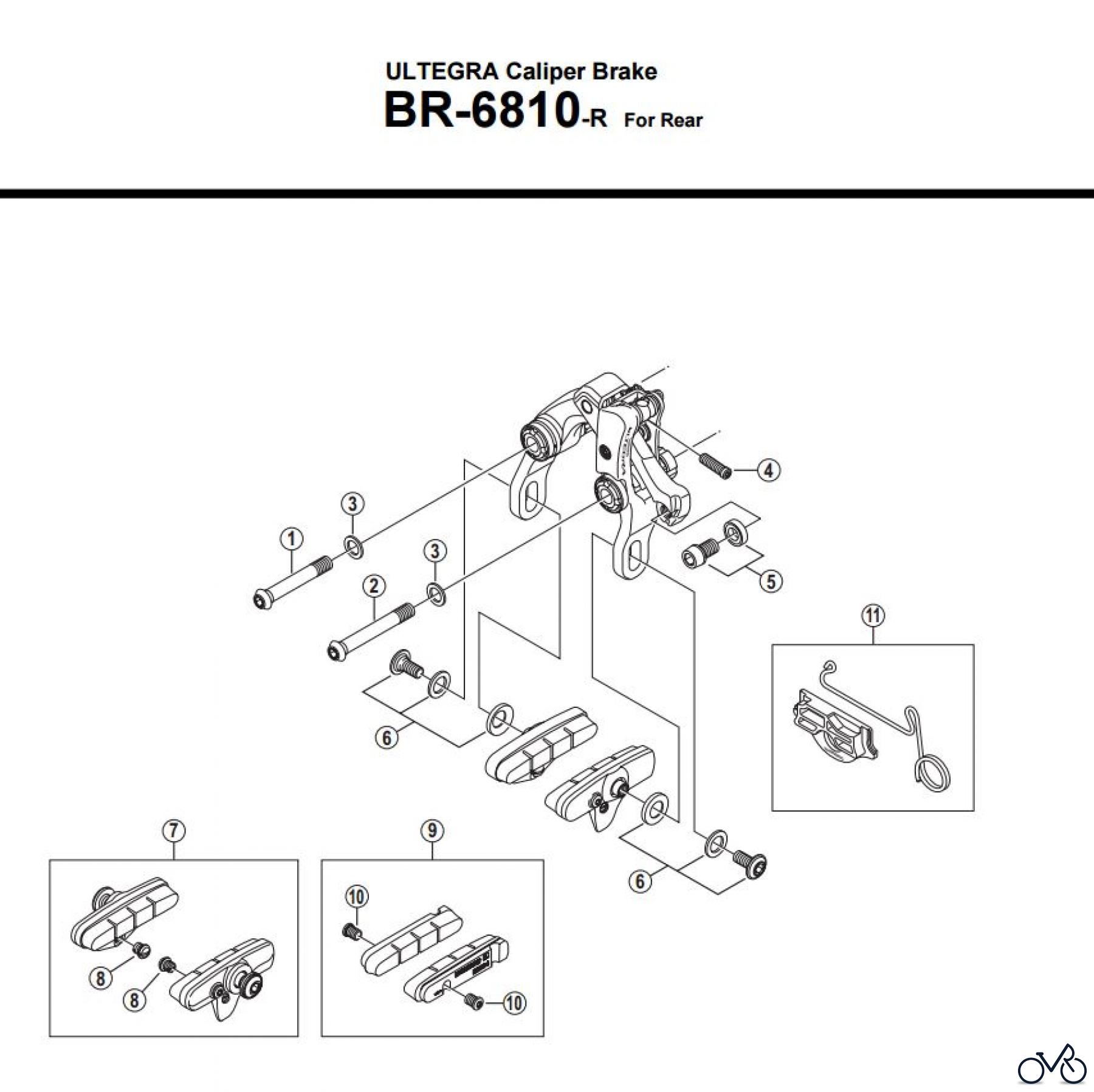

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-6810-R -3601 ULTEGRA Caliper Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y8LC00040	Fixing Bolt C (M6 x 38) Y8LC00040
02	Y8LC00030	Fixing Bolt Y (M6 x 43 Y8LC00030
03	Y8LC16000	Arm Washer Y8LC16000
04	Y6AM82400	EC-Bolt (M4 x 13.5) Y6AM82400
05	Y8LC98010	Cable Fixing Bolt (M6 x 8.5) & Plate Y8LC98010
06	Y8G698090	Shoe Fixing Bolt Unit (M5 x 11.2) Y8G698090
07	Y8LB98010	R55C4 Cartridge-Type Brake Shoe Set (Pair) Y8LB98010
08	Y8FA16000	Tire Guide Y8FA16000
09	Y8L298060	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8L298060
09	Y8L298070	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim Y8L298070
09	Y8L398030	R55C4-1 Cartridge-Type Brake Shoes (-1 mm thinner shoe) & Fixing Bolts (Pair) for Carbon Rim Y8L398030
10	Y8L227000	Fixing Bolt (M4 x 5.5) Y8L227000
11	Y8L398040	Assembly Jig Y8L398040
