Shimano BR-6810-F -3600A

BR-6810-F -3600A BR Brake - Bremse

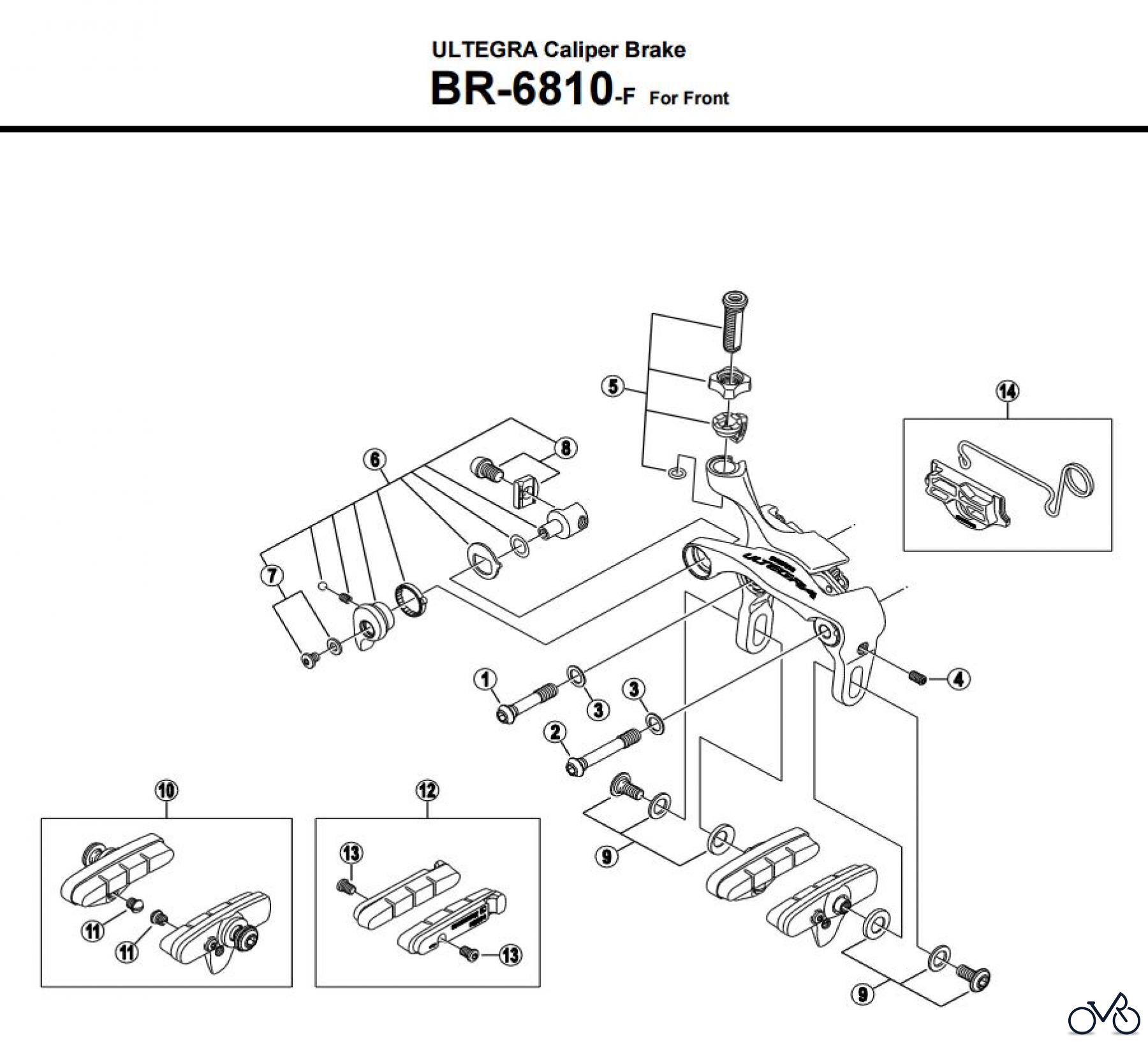

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-6810-F -3600A. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8LB000P0	Fixing Bolt Y (M6 x 27.3) Y8LB000P0
01	Y-8F902000	Fixing Bolt Y (M6 x 28.9) Y8F902000
02	Y-8LB000R0	Fixing Bolt C (M6 x 35.2) Y8LB000R0
02	Y-8F903000	Fixing Bolt C (M6 x 36.8) Y8F903000
03	Y-8LB000M0	Arm Washer Y8LB000M0
04	Y-8BW11100	Set Bolt Y8BW11100
05	Y-8L298010	Cable Adjusting Bolt Unit Y8L298010
06	Y-8LA98010	Quick Release Assembly Y8LA98010
07	Y-8FA98110	Quick Release Fixing Bolt (M4 x 4.8) & Washer Y8FA98110
08	Y-8LA98020	Cable Fixing Bolt & Plate Y8LA98020
09	Y-8G698090	Shoe Fixing Bolt Unit (M5 x 11.2) Y8G698090
10	Y-8LB98010	R55C4 Cartridge-Type Brake Shoe Set (Pair) Y8LB98010
11	Y-8FA16000	Tire Guide Y8FA16000
12	Y-8L298062	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) For aluminium rim Y8L298062
12	Y-8L298072	R55C4 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim Y8L298072
12	Y-8L398030	R55C4-1 Cartridge-Type Brake Shoes (-1 mm thinner shoe) & Fixing Bolts (Pair) for Carbon Rim Y8L398030
13	Y-8L227000	Fixing Bolt (M4 x 5.5) Y8L227000
14	Y-8L398040	Assembly Jig Y8L398040
