Shimano CS-7900 DURA-ACE Cassette Sprocket

CS-7900 DURA-ACE Cassette Sprocket CS Cassette / Zahnkranz

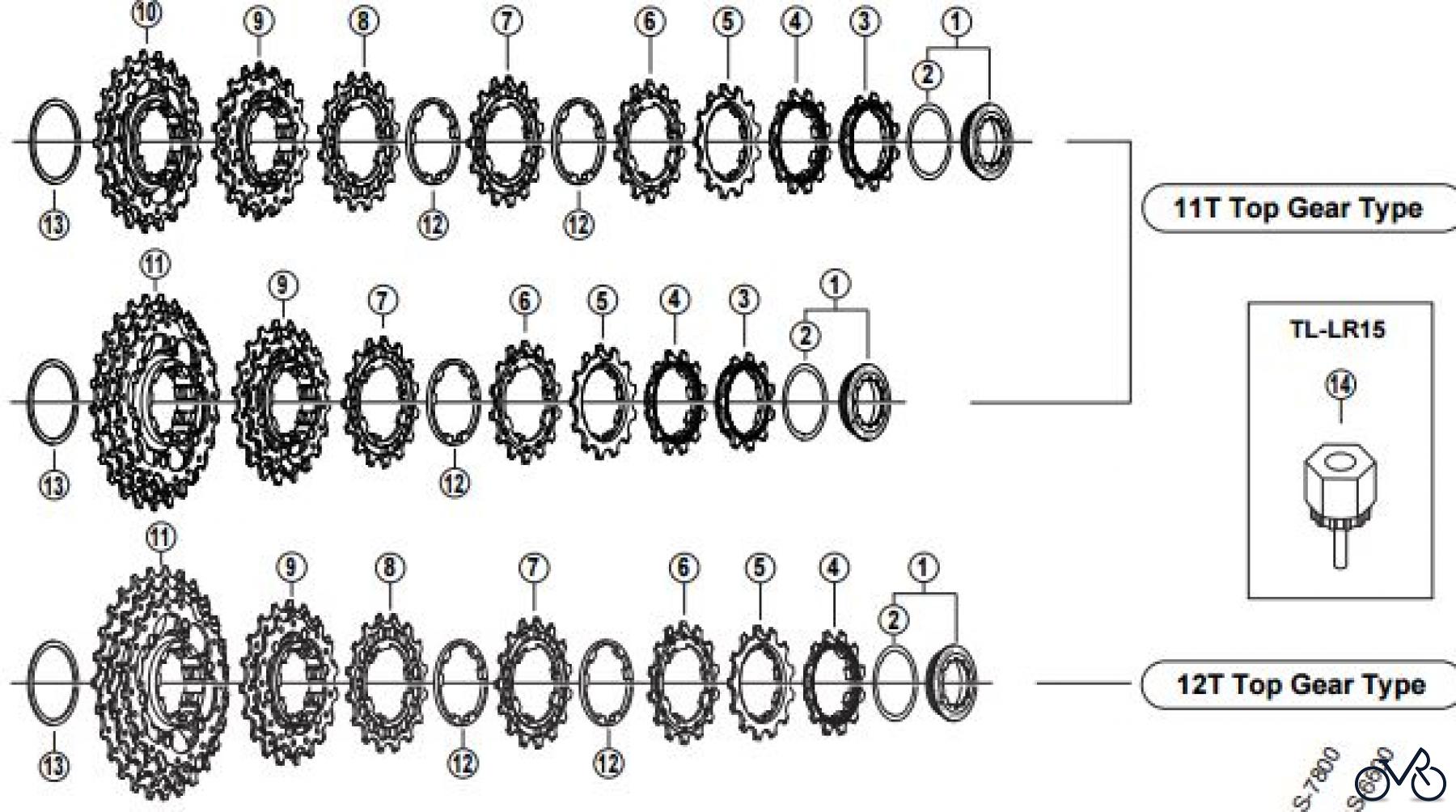

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-7900 DURA-ACE Cassette Sprocket. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1YZ98010	Lock Ring & Spacer for 11T Y1YZ98010
1	Y-1YZ98020	Lock Ring & Spacer for 12T Y1YZ98020
2	Y-10Z 04000	Lock Ring Spacer for 11T Y10Z 04000
2	Y-11W02000	Lock Ring Spacer for 12T Y11W02000
3	Y-1Z8 1100D	Sprocket Wheel 11T (Built in spacer type) Y1Z8 1100D
4	Y-1Z8 1200D	Sprocket Wheel 12T (Built in spacer type) Y1Z8 1200D
5	Y-1Z81300D	Sprocket Wheel 13T (Built in spacer type) Y1Z81300D
6	Y-1YZ1400D	Sprocket Wheel 14T Y1YZ1400D
7	Y-1YZ 1500D	Sprocket Wheel 15T Y1YZ 1500D
8	Y-1YZ1600D	Sprocket Wheel 16T Y1YZ1600D
9	Y-1YZ98030	Sprocket Unit (17-18T) for 11-21T Y1YZ98030
9	Y-1YZ98040	Sprocket Unit (17-18T) for 12-23T Y1YZ98040
9	Y-1YZ98050	Sprocket Unit (17-19T) for 11-23T Y1YZ98050
9	Y-1YZ98060	Sprocket Unit (17-19T) for 12-25T, 12-27T Y1YZ98060
9	Y-1YZ98070	Sprocket Unit (17-19T) for 11-25T, 11-27T, 11-28T Y1YZ98070
10	Y-1YZ98080	Sprocket Unit (19-21T) Y1YZ98080
10	Y-1YZ98090	Sprocket Unit (21-23T) Y1YZ98090
11	Y-1YZ98100	Sprocket Unit (19-21-23T) Y1YZ98100
11	Y-1YZ98110	Sprocket Unit (21-23-25T) Y1YZ98110
11	Y-1YZ98120	Sprocket Unit (21-24-27T) Y1YZ98120
11	Y-1YZ98130	Sprocket Unit (21-24-28T) Y1YZ98130
12	Y-1Z805100	Sprocket Spacer (t=2.35 mm) Y1Z805100
13	Y-1Z807000	Low Spacer (t=1.0 mm) Y1Z807000
14	Y-120 09230	Lock Ring Removal Tool (TL-LR15) Y120 09230
