Shimano CS-6800 ULTEGRA Cassette Sprocket

CS-6800 ULTEGRA Cassette Sprocket CS Cassette / Zahnkranz

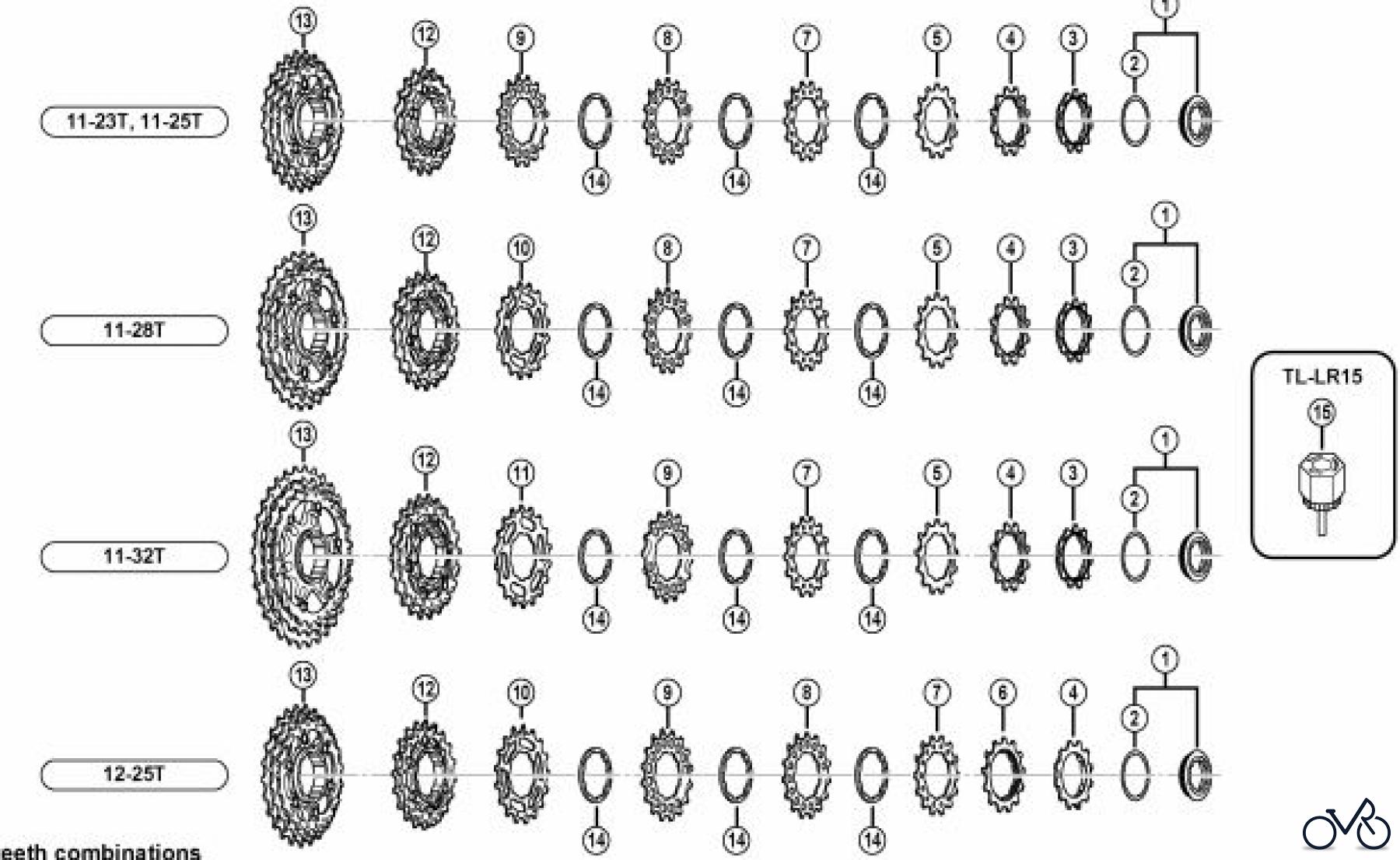

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-6800 ULTEGRA Cassette Sprocket. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y1Y998010	Lock Ring & Spacer Y1Y998010
2	Y10Z04000	Lock Ring Spacer Y10Z04000
3	Y1Y911000	Sprocket Wheel 11T (Built in spacer type) for 11-25T, 11-28T, 11-32T Y1Y911000
4	Y1Y912000	Sprocket Wheel 12T (Built in spacer type) for 11-25T, 11-28T, 11-32T Y1Y912000
4	Y1Y912100	Sprocket Wheel 12T (Built in spacer type) for 12-25T Y1Y912100
5	Y1Y913000	Sprocket Wheel 13T for 11-25T, 11-28T, 11-32T Y1Y913000
6	Y1Y913100	Sprocket Wheel 13T (Built in spacer type) for 12-25T Y1Y913100
7	Y1Y914000	Sprocket Wheel 14T Y1Y914000
8	Y1Y915000	Sprocket Wheel 15T for 11-25T, 11-28T, 12-25T Y1Y915000
9	Y1Y916000	Sprocket Wheel 16T for 11-25T, 12-25T Y1Y916000
9	Y1Y916100	Sprocket Wheel 16T for 11-32T Y1Y916100
10	Y1Y917100	Sprocket Wheel 17T for 11-28T Y1Y917100
10	Y1Y917200	Sprocket Wheel 17T for 12-25T Y1Y917200
11	Y1Y918200	Sprocket Wheel 18T for 11-32T Y1Y918200
12		Sprocket Unit (17-18T) for 11-23T
12	Y1Y998020	Sprocket Unit (17-19T) for 11-25T Y1Y998020
12	Y1Y998030	Sprocket Unit (19-21T) for 11-28T Y1Y998030
12	Y1Y998040	Sprocket Unit (20-22T) for 11-32T Y1Y998040
12	Y1Y998050	Sprocket Unit (18-19T) for 12-25T Y1Y998050
13		Sprocket Unit (19-21-23T) for 11-23T
13	Y1Y998060	Sprocket Unit (21-23-25T) for 11-25T Y1Y998060
13	Y1Y998070	Sprocket Unit (23-25-28T) for 11-28T Y1Y998070
13	Y1Y998080	Sprocket Unit (25-28-32T) for 11-32T Y1Y998080
13	Y1Y998090	Sprocket Unit (21-23-25T) for 12-25T Y1Y998090
14	Y1Y953000	Sprocket Spacer (t=2.18 mm) Y1Y953000
15	Y12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
