Shimano FH-T670 DEORE LX Freehub 8/9/10-Speed

FH-T670 DEORE LX Freehub 8/9/10-Speed FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-T670 DEORE LX Freehub 8/9/10-Speed

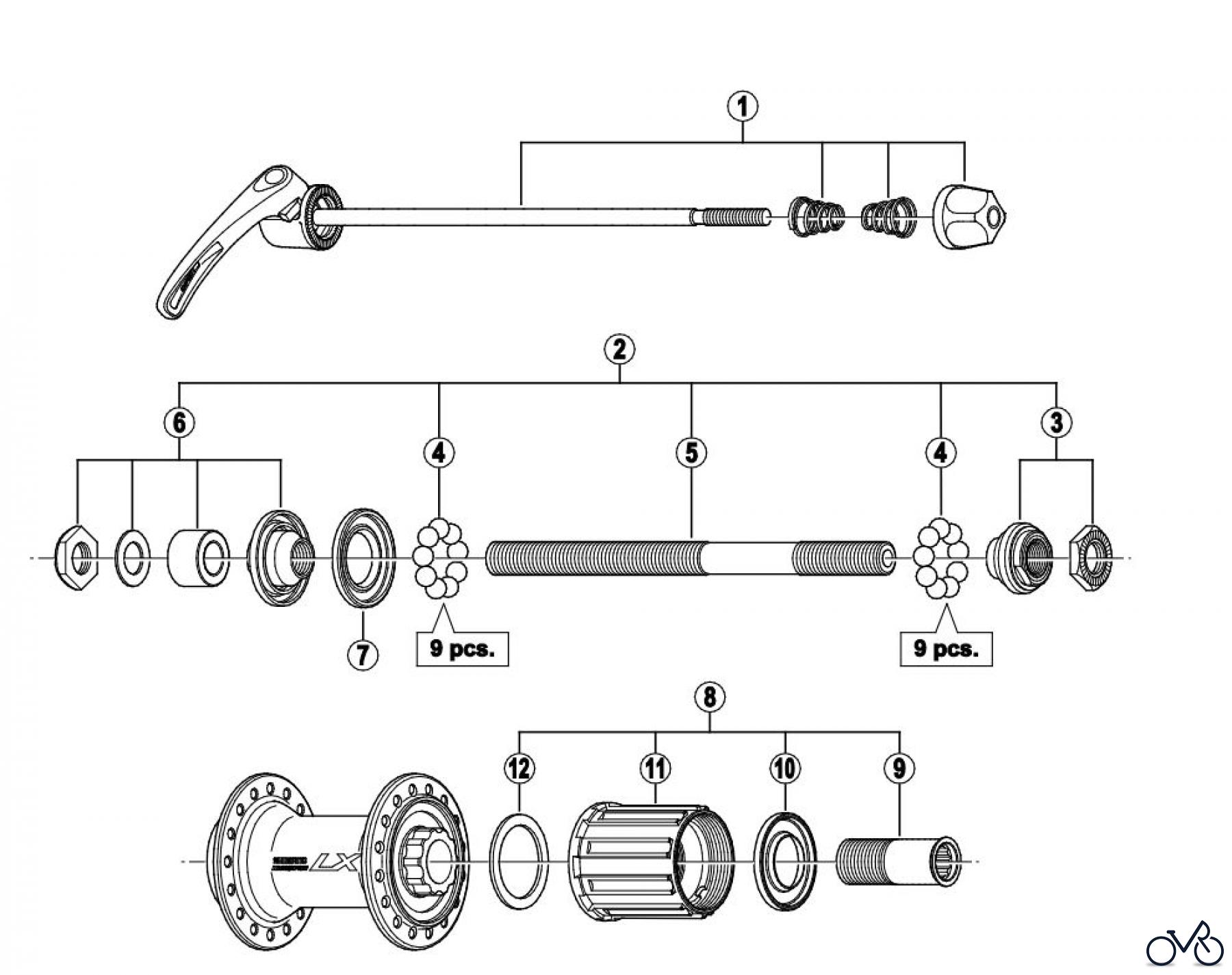

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-T670 DEORE LX Freehub 8/9/10-Speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y3TV98010Complete Quick Release 168 mm (6-5/8") Silver Y3TV98010
01 Y3TV98020Complete Quick Release 168 mm (6-5/8") Black Y3TV98020
01 Y3TV98030Complete Quick Release 173 mm (6-13/16") Silver Y3TV98030
01 Y3TV98040Complete Quick Release 173 mm (6-13/16") Black Y3TV98040
02 Y3TV98050Complete Hub Axle 146 mm (5-3/4") Y3TV98050
03 Y3SP98090Right Hand Lock Nut Unit Y3SP98090
04 Y00091310Steel Ball (1/4") 18 pcs. Y00091310
05 Y30K01200Hub Axle M10 x 146 mm (5-3/4") Y30K01200
06 Y3D698030Left Hand Lock Nut Unit Y3D698030
07 Y3CR09000Left Hand Seal Ring Y3CR09000
08 Y3D698040Complete Freewheel Body Y3D698040
09 Y3BL03000Body Fixing Bolt Y3BL03000
10 Y3CR08000Right Hand Seal Ring Y3CR08000
11 Y3D698050Freewheel Body Unit Y3D698050
12 Y37504000Freewheel Body Washer Y37504000
