Shimano FH-T665 DEORE LX Freehub (8/9-Speed)

FH-T665 DEORE LX Freehub (8/9-Speed) FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-T665 DEORE LX Freehub (8/9-Speed)

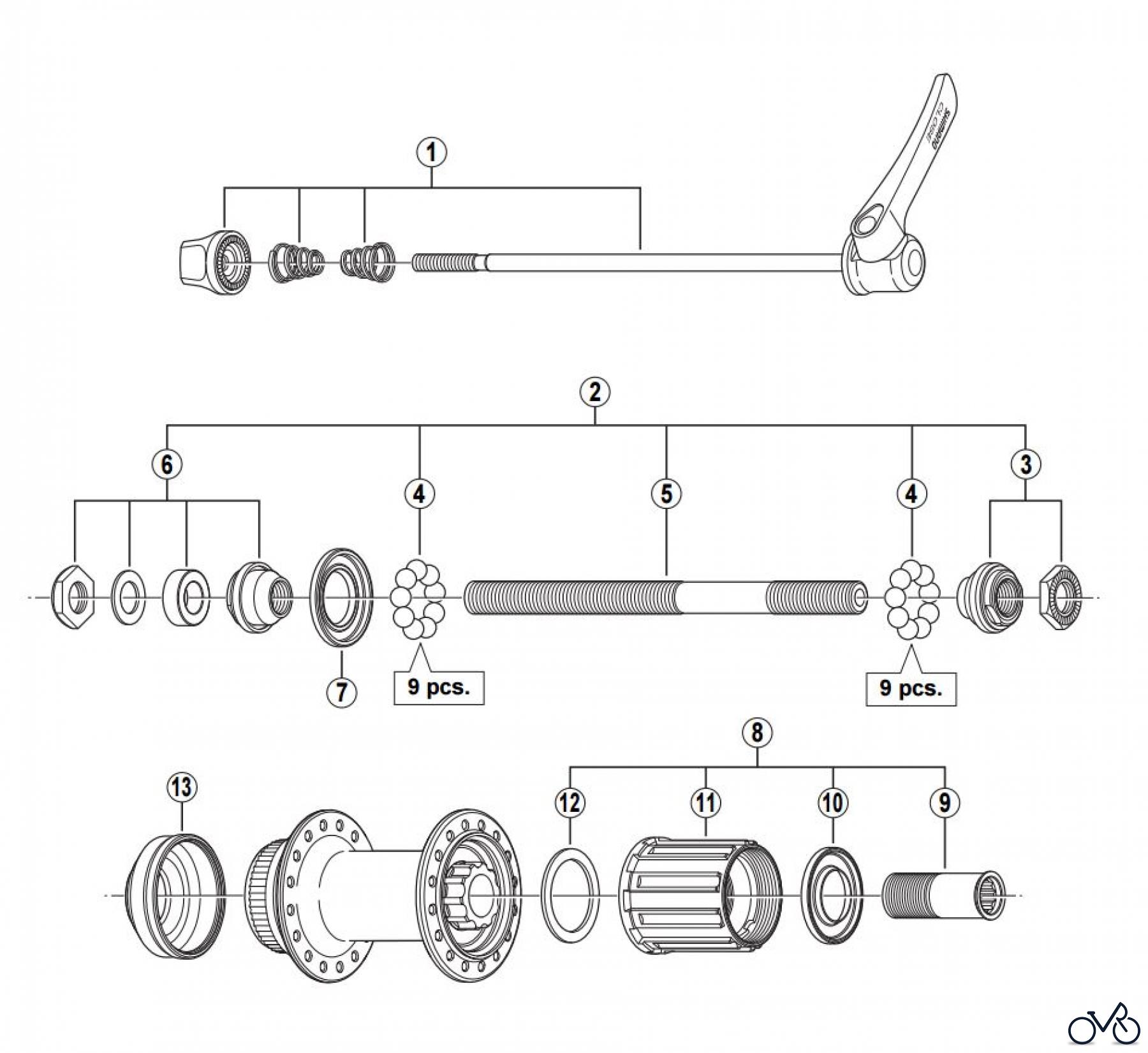

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-T665 DEORE LX Freehub (8/9-Speed) . Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-3CS98010Complete Quick Release 168 mm (6-5/8") Y3CS98010
01 Y-3CS98020Complete Quick Release 173 mm (6-13/16") Y3CS98020
02 Y-3SZ98010Complete Hub Axle 146 mm (5-3/4") Y3SZ98010
03 Shimano Right Hand Lock Nut UnitY-3SW98020Right Hand Lock Nut Unit Y3SW98020
04 Shimano Steel Ball (1/4") 18 pcs.Y-00091310Steel Ball (1/4") 18 pcs. Y00091310
05 Shimano Hub Axle M10 x 146 mm (5-3/4")Y-30K01200Hub Axle M10 x 146 mm (5-3/4") Y30K01200
06 Y-3SZ98020Left Hand Lock Nut Unit Y3SZ98020
07 Shimano Left Hand Seal RingY-3CR09000Left Hand Seal Ring Y3CR09000
08 Shimano Complete Freewheel BodyY-3D698040Complete Freewheel Body Y3D698040
09 Shimano Body Fixing BoltY-3BL03000Body Fixing Bolt Y3BL03000
10 Shimano Right Hand Seal RingY-3CR08000Right Hand Seal Ring Y3CR08000
11 Shimano Freewheel Body UnitY-3D698050Freewheel Body Unit Y3D698050
12 Y-37504000Freewheel Body Washer Y37504000
13 Y-25Y06000Rotor Mount Cover Y25Y06000
