Shimano FH-R505 -New Dustcap

FH-R505 -New Dustcap FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-R505 -New Dustcap

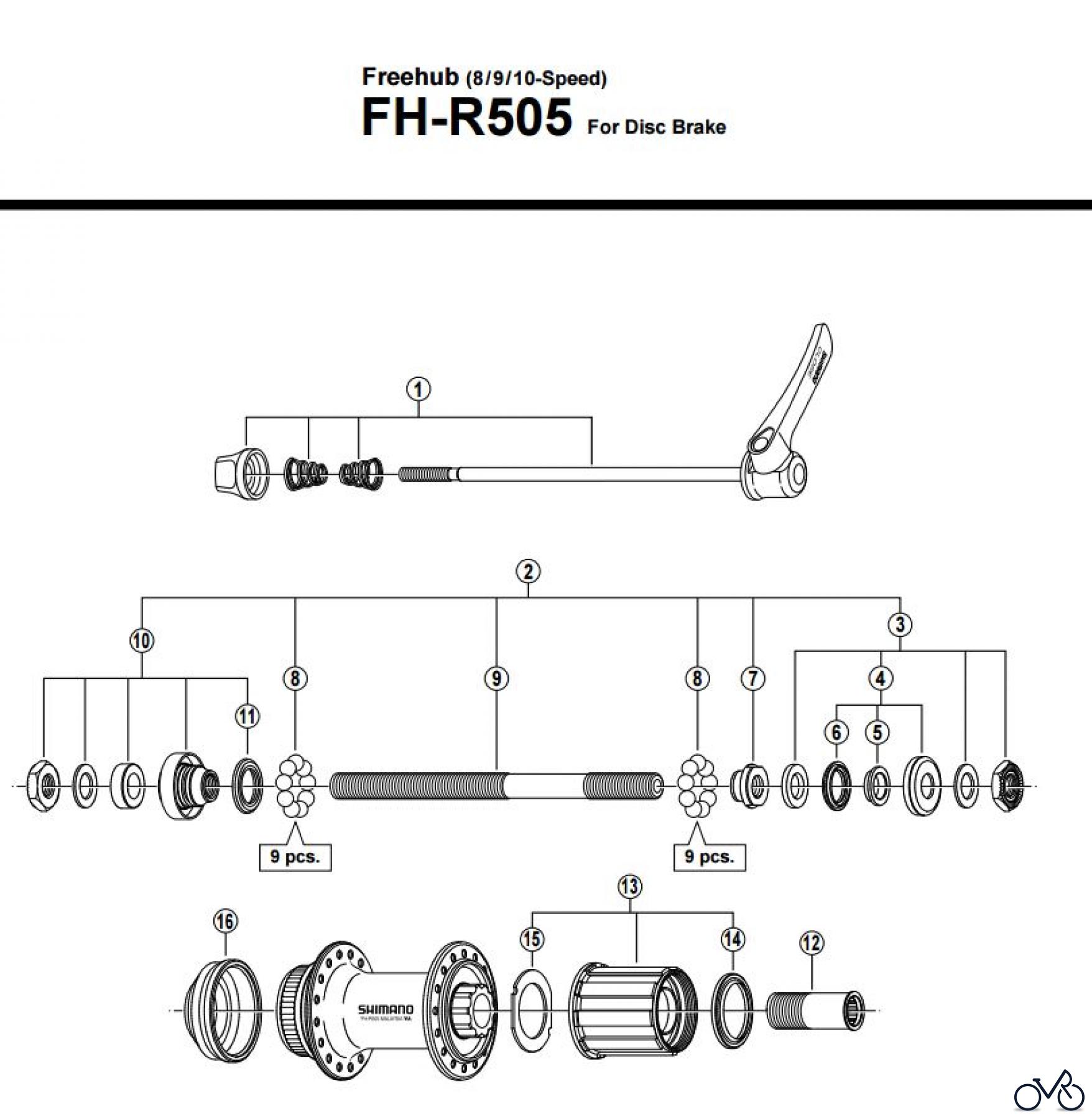

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-R505 -New Dustcap. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-3CS98010Complete Quick Release 168 mm (6-5/8") Y3CS98010
01 Y-3CS98020Complete Quick Release 173 mm (6-13/16") Y3CS98020
02 Y-3CS98030Complete Hub Axle 146 mm (5-3/4") Y3CS98030
03 Y-3CS98040Right Hand Lock Nut Unit Y3CS98040
04 Shimano Right Hand Dust Cap UnitY-3CJ98040Right Hand Dust Cap Unit Y3CJ98040
05 Y-31V03000Right Hand Axle Spacer 3.7 mm Y31V03000
06 Shimano Right Hand Seal RingY-21406000Right Hand Seal Ring Y21406000
07 Shimano Right Hand Cone M10 x 9 mmY-3AE03000Right Hand Cone M10 x 9 mm Y3AE03000
08 Shimano Steel Ball (1/4") 18 pcs.Y-00091310Steel Ball (1/4") 18 pcs. Y00091310
09 Shimano Hub Axle 146 mm (5-3/4")Y-30K01200Hub Axle 146 mm (5-3/4") Y30K01200
10 Y-3SS98020Left Hand Lock Nut Unit Y3SS98020
11 Shimano Left Hand Seal RingY-37710000Left Hand Seal Ring Y37710000
12 Shimano Body Fixing BoltY-3BL03000Body Fixing Bolt Y3BL03000
13 Y-3SR98040Complete Freewheel Body Y3SR98040
14 Y-3C703000Sub Unit Rubber Seal Y3C703000
15 Shimano Freewheel Body WasherY-3AN10000Freewheel Body Washer Y3AN10000
16 Y-24Z02000Rotor Mount Cover Y24Z02000
