Shimano FH-M975 -12547 XTR Freehub (8/9-Speed)

FH-M975 -12547 XTR Freehub (8/9-Speed) FH Free Hub - Freilaufnabe

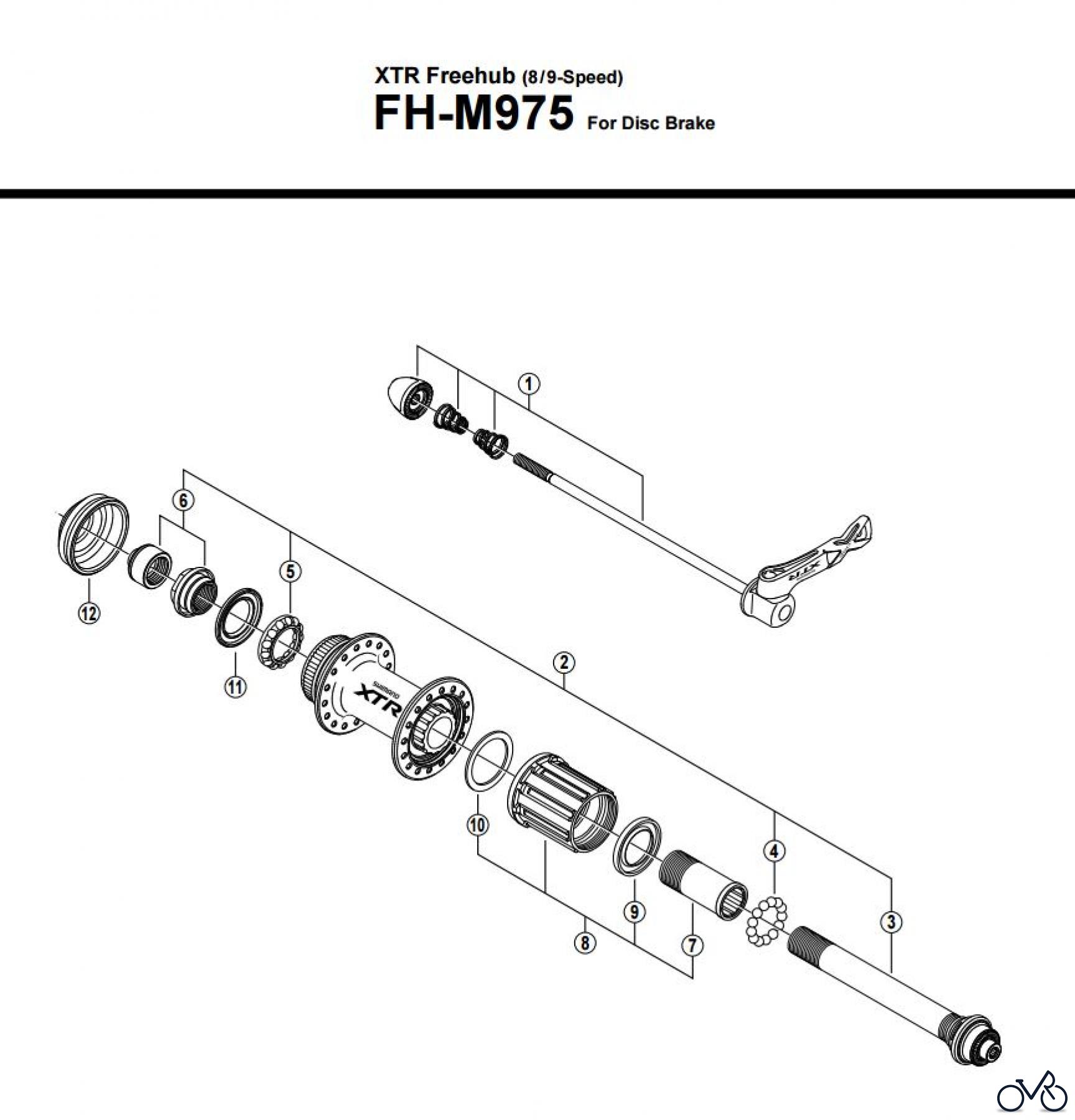

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M975 -12547 XTR Freehub (8/9-Speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-3CN98010	Complete Quick Release 168 mm (6-5/8") Y3CN98010
01	Y-3CN98020	Complete Quick Release 173 mm (6-13/16") Y3CN98020
02	Y-3CN98030	Complete Hub Axle Y3CN98030
03	Y-3CN98040	Hub Axle Unit Y3CN98040
04	Y-00091270	Stainless Ball (3/16") 22 pcs. Y00091270
05	Y-25R98080	Ball Retainer (3/16") Y25R98080
06	Y-3CN98050	Left Hand Lock Nut (M14) & Cone (M14) w/Dust Cover Y3CN98050
07	Y-3CN17000	Body Fixing Bolt Y3CN17000
08	Y-3CN98080	Complete Freewheel Body w/Body Fixing Bolt Y3CN98080
09	Y-3CM11000	Sub Unit Rubber Seal Y3CM11000
10	Y-3CN07000	Freewheel Body Washer Y3CN07000
11	Y-26D10000	Seal Ring Y26D10000
12	Y-24Z02000	Rotor Mount Cover Y24Z02000
