Shimano FH-M970 -2546A XTR Freehub 8/9-Speed

FH-M970 -2546A XTR Freehub 8/9-Speed FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-M970 -2546A XTR Freehub 8/9-Speed

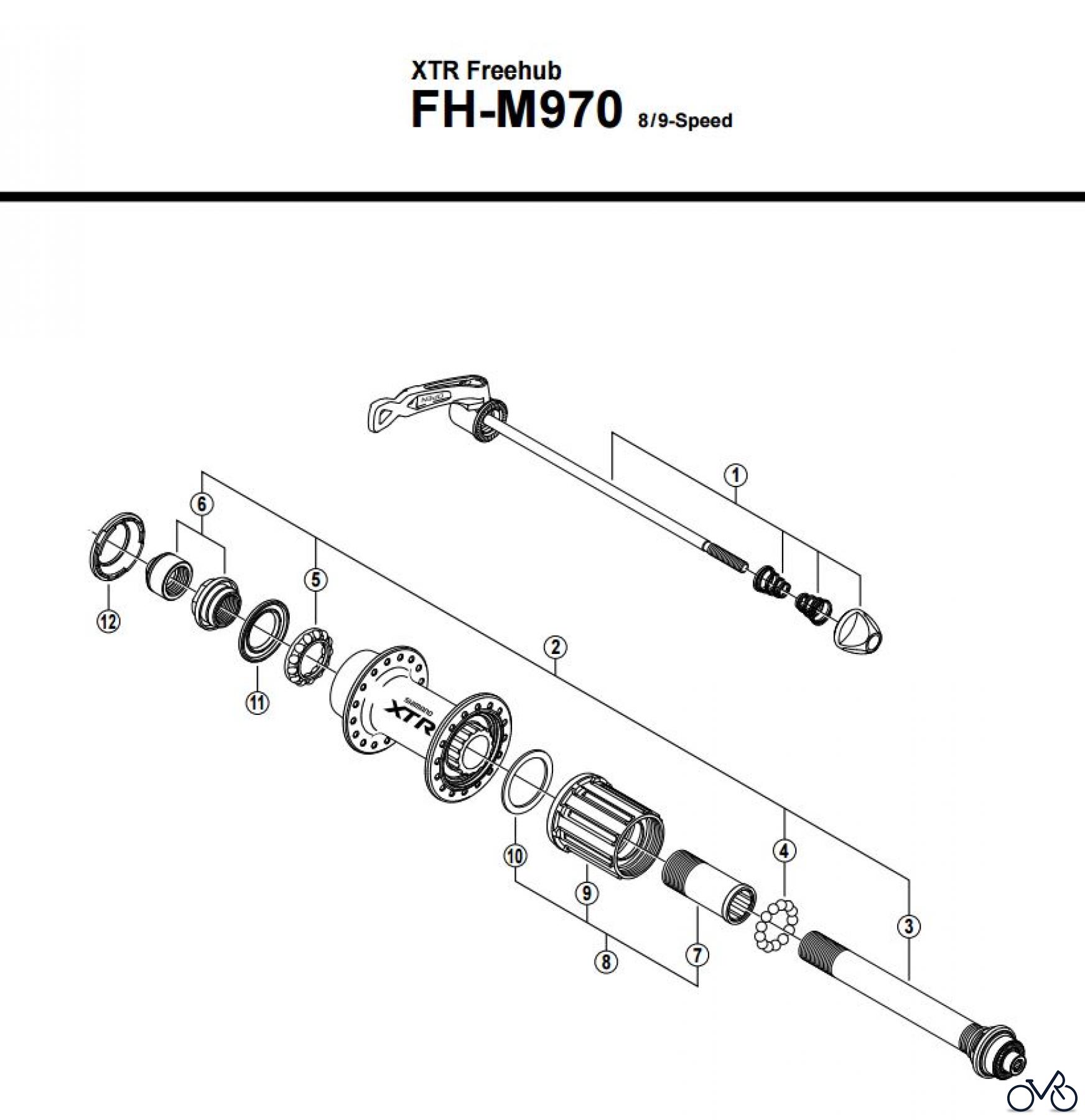

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M970 -2546A XTR Freehub 8/9-Speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-3CN98010Complete Quick Release 168 mm (6-5/8") Y3CN98010
01 Y-3CN98020Complete Quick Release 173 mm (6-13/16") Y3CN98020
02 Shimano Complete Hub AxleY-3CN98030Complete Hub Axle Y3CN98030
03 Y-3CN98040Hub Axle Unit Y3CN98040
04 Y-00091270Stainless Ball (3/16") 22 pcs. Y00091270
05 Y-25R98080Ball Retainer (3/16") Y25R98080
06 Y-3CN98050Left Hand Lock Nut (M14) & Cone (M14) w/Dust Cover Y3CN98050
07 Y-3CN17000Body Fixing Bolt Y3CN17000
08 Y-3CN98080Complete Freewheel Body w/Body Fixing Bolt Y3CN98080
09 Y-3CN98100Freewheel Body Unit Y3CN98100
10 Y-3CN07000Freewheel Body Washer Y3CN07000
11 Shimano Seal RingY-26D10000Seal Ring Y26D10000
12 Y-26D12000Cap Y26D12000
