Shimano FH-M965 SHIMANO XTR Freehub 8/9-Speed

FH-M965 SHIMANO XTR Freehub 8/9-Speed FH Free Hub - Freilaufnabe

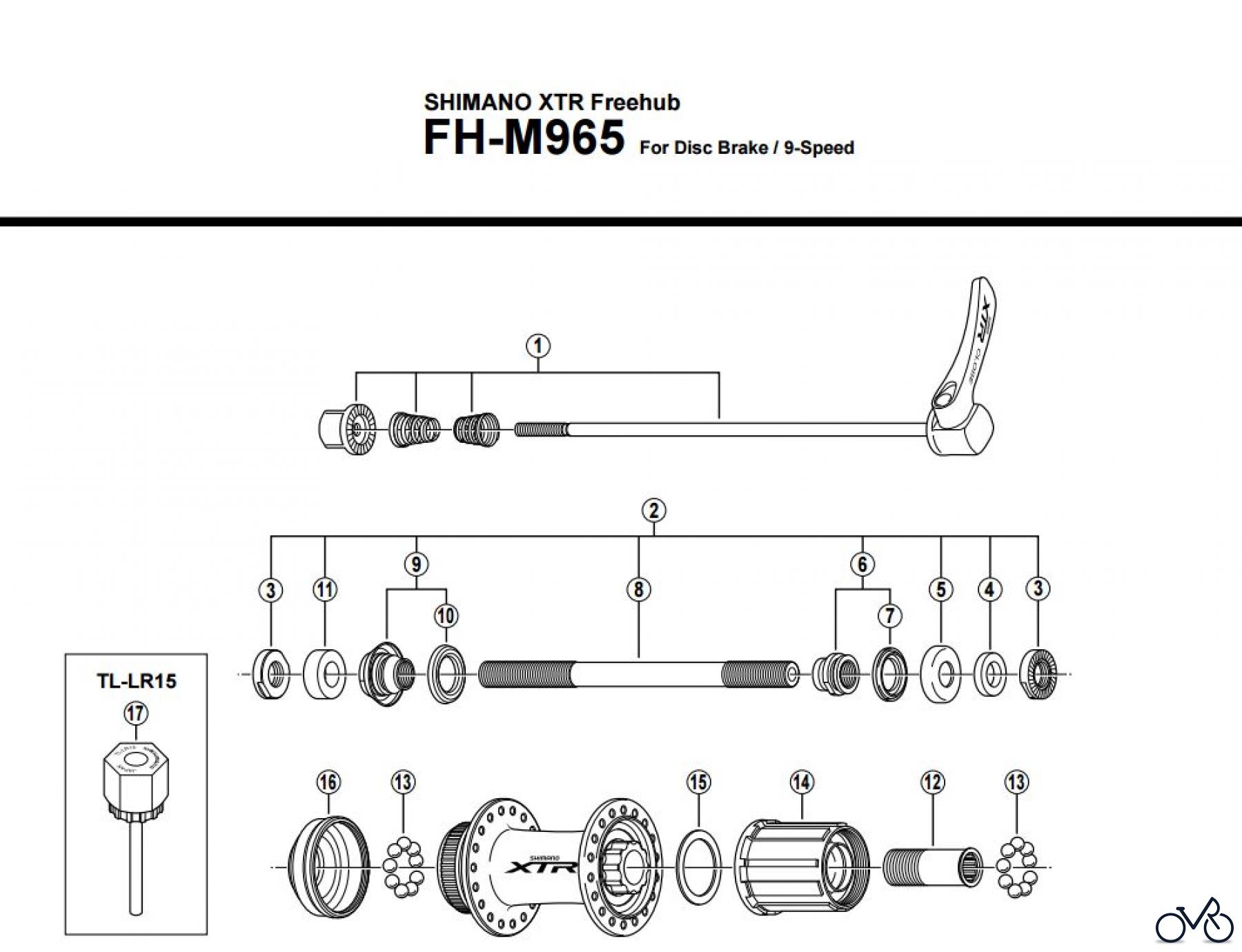

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M965 SHIMANO XTR Freehub 8/9-Speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-3BY98010	Complete Quick Release 168 mm (6-5/8") Y3BY98010
01	Y-3BY98050	Complete Quick Release 173 mm (6-13/16") Y3BY98050
02	Y-3BY98020	Complete Hub Axle 146 mm (5-3/4") Y3BY98020
03	Y-32P08000	Serated Lock Nut 4 mm Y32P08000
04	Y-3BY12000	Right Hand Axle Spacer B 3.4 mm Y3BY12000
05	Y-3A005000	Right Hand Dust Cap Y3A005000
06	Y-3BY98030	Right Hand Cone (M10 x 12.5 mm) & Seal Ring Y3BY98030
07	Y-21406000	Right Hand Seal Ring Y21406000
08	Y-32T09000	Hub Axle 146 mm (5-3/4") Y32T09000
09	Y-32T98040	Left Hand Cone (M10 x 16 mm) w/Dust Cover & Seal Ring Y32T98040
10	Y-37710000	Left Hand Seal Ring Y37710000
11	Y-3BY11000	Left Hand Axle Spacer A 6.7 mm Y3BY11000
12	Y-3BY09000	Body Fixing Bolt Y3BY09000
13	Y-00091370	Stainless Ball (1/4") 18 pcs. Y00091370
14	Y-3BY98040	Complete Freewheel Body w/Right Hand Dust Cap Y3BY98040
15	Y-3BY10000	Freewheel Body Washer Y3BY10000
16	Y-24Z02000	Rotor Mount Cover Y24Z02000
17	Y-12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
