Shimano CT-S500 -2630 ALFINE Chain Tensioner

CT-S500 -2630 ALFINE Chain Tensioner CT Chain Tensioner - Kettenspanner

Shimano CT Chain Tensioner - Kettenspanner CT-S500 -2630 ALFINE Chain Tensioner

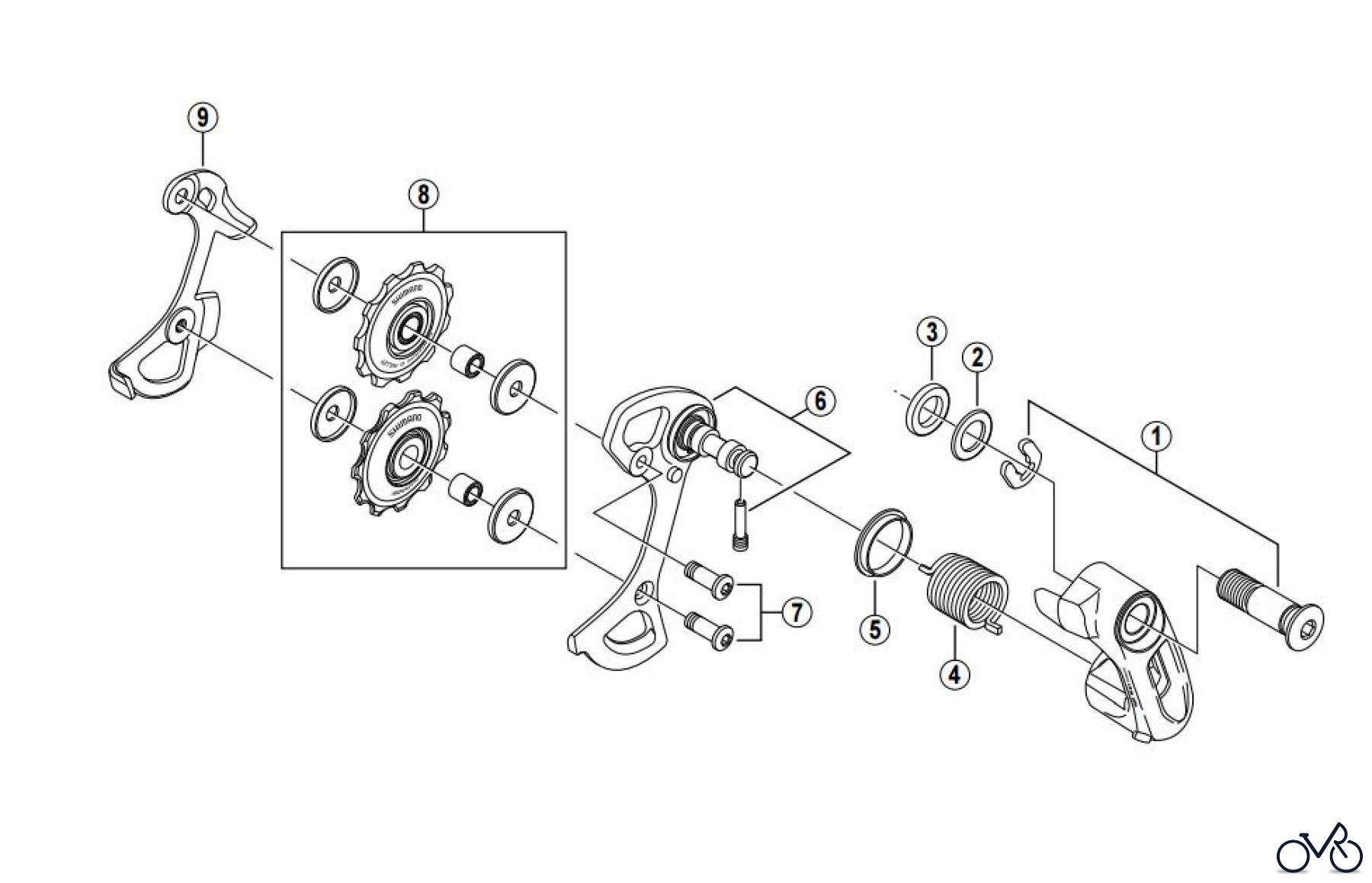

Here you will find the spare parts drawing for Shimano CT Chain Tensioner - Kettenspanner CT-S500 -2630 ALFINE Chain Tensioner. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-50D98010Fixing Bolt & E-Ring Y50D98010
02 Y-50D15000Shim 1 mm Y50D15000
03 Y-50D15010Shim 2 mm Y50D15010
04 Y-50D16000P-Tension Spring Y50D16000
05 Shimano P-Seal RingY-5UC14000P-Seal Ring Y5UC14000
06 Y-50D98020Outer Plate Assembly Y50D98020
07 Shimano Pulley Bolt (M5 x 13.95) 2 pcs.Y-5VM98060Pulley Bolt (M5 x 13.95) 2 pcs. Y5VM98060
08 Shimano Tension & Guide Pulley SetY-5TT98020Tension & Guide Pulley Set Y5TT98020
09 Y-53Z08200Inner Plate Y53Z08200
