Shimano FH-M775 -2700A DEORE XT Freehub (8/9-Speed) for Disc Brake

FH-M775 -2700A DEORE XT Freehub (8/9-Speed) for Disc Brake FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-M775 -2700A DEORE XT Freehub (8/9-Speed) for Disc Brake

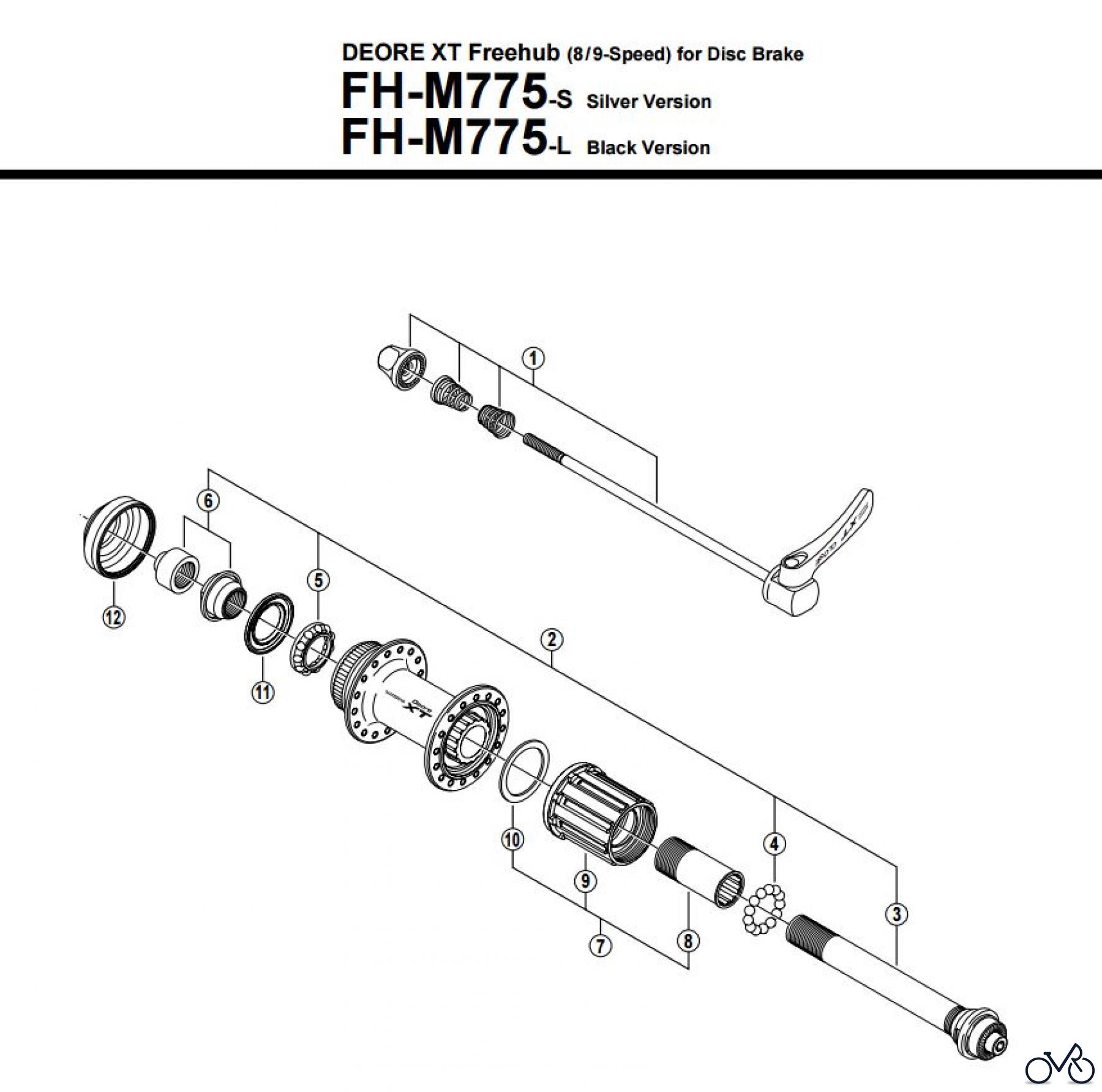

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M775 -2700A DEORE XT Freehub (8/9-Speed) for Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-3D098010Complete Quick Release 168 mm (6-5/8") / Silver Y3D098010
01 Y-3D098020Complete Quick Release 168 mm (6-5/8") / Black Y3D098020
01 Y-3D098030Complete Quick Release 173 mm (6-13/16") / Silver Y3D098030
01 Y-3D098040Complete Quick Release 173 mm (6-13/16") / Black Y3D098040
02 Y-3D098050Complete Hub Axle Y3D098050
03 Shimano Hub Axle UnitY-3CZ98020Hub Axle Unit Y3CZ98020
04 Shimano Steel Ball (3/16") 20 pcs.Y-00091210Steel Ball (3/16") 20 pcs. Y00091210
05 Shimano Ball Retainer (3/16")Y-26J98030Ball Retainer (3/16") Y26J98030
06 Y-3D098060Left Hand Lock Nut (M14) & Cone (M14) w/Dust Cover Y3D098060
07 Y-3CZ98040Complete Freewheel Body w/Body Fixing Bolt Y3CZ98040
08 Y-3CZ18000Body Fixing Bolt Y3CZ18000
09 Y-3CZ98050Freewheel Body Unit Y3CZ98050
10 Shimano Freewheel Body WasherY-3CZ12000Freewheel Body Washer Y3CZ12000
11 Shimano Seal RingY-26D10000Seal Ring Y26D10000
12 Y-25Y06000Rotor Mount Cover Y25Y06000
