Shimano FH-M756 -2099C DEORE XT Kassettennabe 8-/9-fach

FH-M756 -2099C DEORE XT Kassettennabe 8-/9-fach FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-M756 -2099C DEORE XT Kassettennabe 8-/9-fach

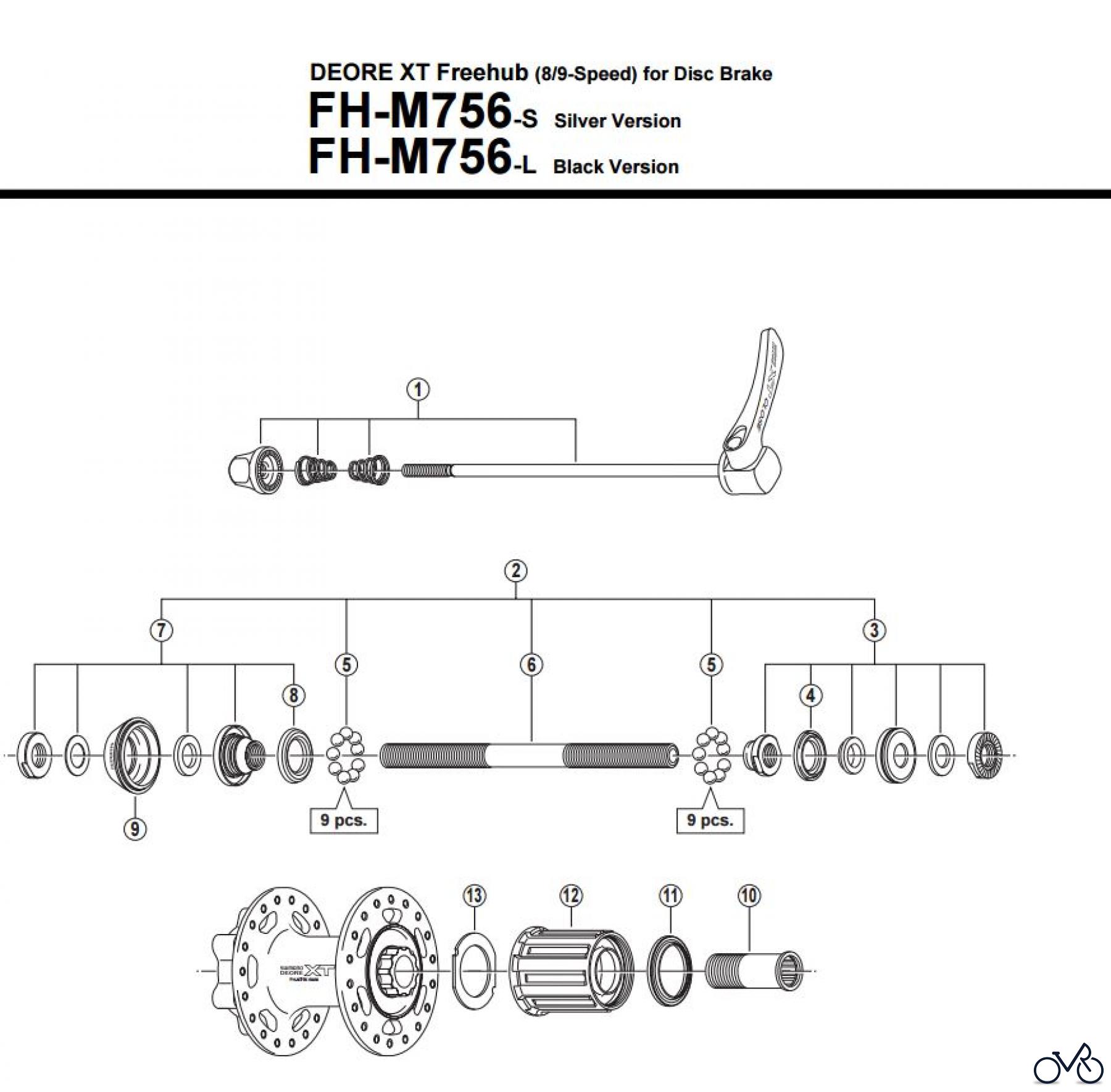

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M756 -2099C DEORE XT Kassettennabe 8-/9-fach. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y3BK98010Complete Quick Release 168 mm (6-5/8") for FH-M756-S Y3BK98010
01 Y3BK98020Complete Quick Release 168 mm (6-5/8") for FH-M756-L Y3BK98020
01 Y3B698010Complete Quick Release 173 mm (6-13/16") for FH-M756-S Y3B698010
01 Y3B698020Complete Quick Release 173 mm (6-13/16") for FH-M756-L Y3B698020
02 Y3BW98020Complete Hub Axle 146 mm (5-3/4") Y3BW98020
03 Y3BW98030Right Hand Lock Nut Unit Y3BW98030
04 Y21406000Right Hand Seal Ring Y21406000
05 Y00091310Steel Ball (1/4") 18 pcs Y00091310
06 Y36019209Hub Axle 146 mm (5-3/4") Y36019209
07 Y3BW98040Left Hand Lock Nut Unit Y3BW98040
08 Y37710000Left Hand Seal Ring Y37710000
09 Y3BK03100Rubber Seal Y3BK03100
10 Y3BL03000Body Fixing Bolt Y3BL03000
11 Y3BD98010Complete Freewheel Body w/Right Hand Dust Cap Y3BD98010
12 Y3AN10000Freewheel Body Washer Y3AN10000
