Shimano FH-M590- 2920 Deore Kassettennabe 8-/9-fach

FH-M590- 2920 Deore Kassettennabe 8-/9-fach FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-M590- 2920 Deore Kassettennabe 8-/9-fach

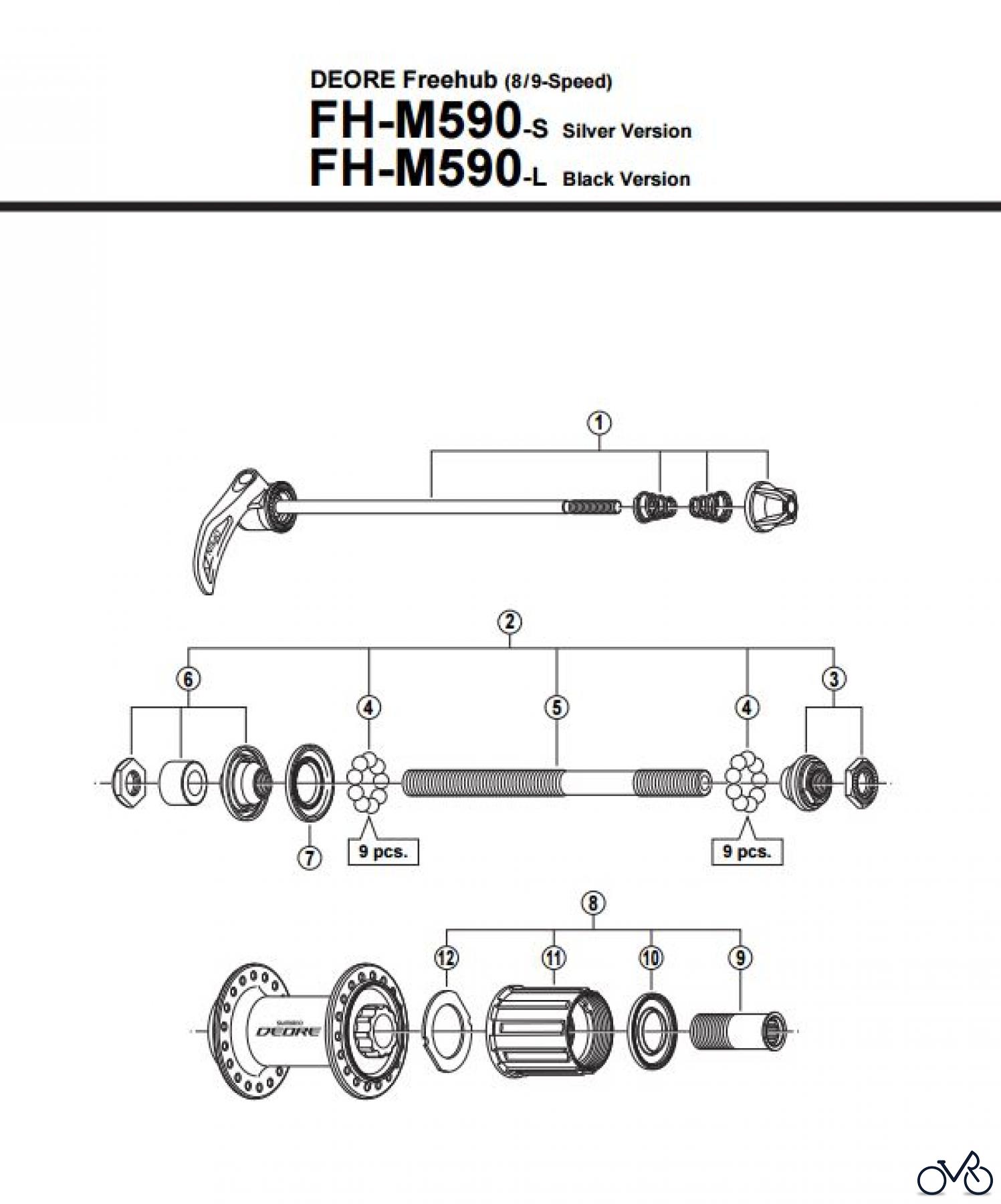

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M590- 2920 Deore Kassettennabe 8-/9-fach. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-3D398010Complete Quick Release 168 mm (6-5/8") Y3D398010
01 Y-3D398020Complete Quick Release 173 mm (6-13/16") Y3D398020
02 Y-3SV98010Complete Hub Axle 146 mm (5-3/4") Y3SV98010
03 Shimano Right Hand Lock Nut UnitY-3SW98020Right Hand Lock Nut Unit Y3SW98020
04 Shimano Steel Ball (1/4") 18 pcs.Y-00091310Steel Ball (1/4") 18 pcs. Y00091310
05 Shimano Hub Axle M10 x 146 mm (5-3/4")Y-30K01200Hub Axle M10 x 146 mm (5-3/4") Y30K01200
06 Y-3SV98020Left Hand Lock Nut Unit Y3SV98020
07 Shimano Left Hand Seal RingY-3CR09000Left Hand Seal Ring Y3CR09000
08 Shimano Complete Freewheel BodyY-3SW98050Complete Freewheel Body Y3SW98050
09 Shimano Body Fixing BoltY-3BL03000Body Fixing Bolt Y3BL03000
10 Shimano Right Hand Seal RingY-3CR08000Right Hand Seal Ring Y3CR08000
11 Y-3SW98060Freewheel Body Unit Y3SW98060
12 Shimano Freewheel Body WasherY-3AN10000Freewheel Body Washer Y3AN10000
