Shimano FH-IM40- BRIM41 -1606C NEXUS Kassettennabe w/Hi-Power Roller Brake 7-fach

FH-IM40- BRIM41 -1606C NEXUS Kassettennabe w/Hi-Power Roller Brake 7-fach FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-IM40- BRIM41 -1606C NEXUS Kassettennabe w/Hi-Power Roller Brake 7-fach

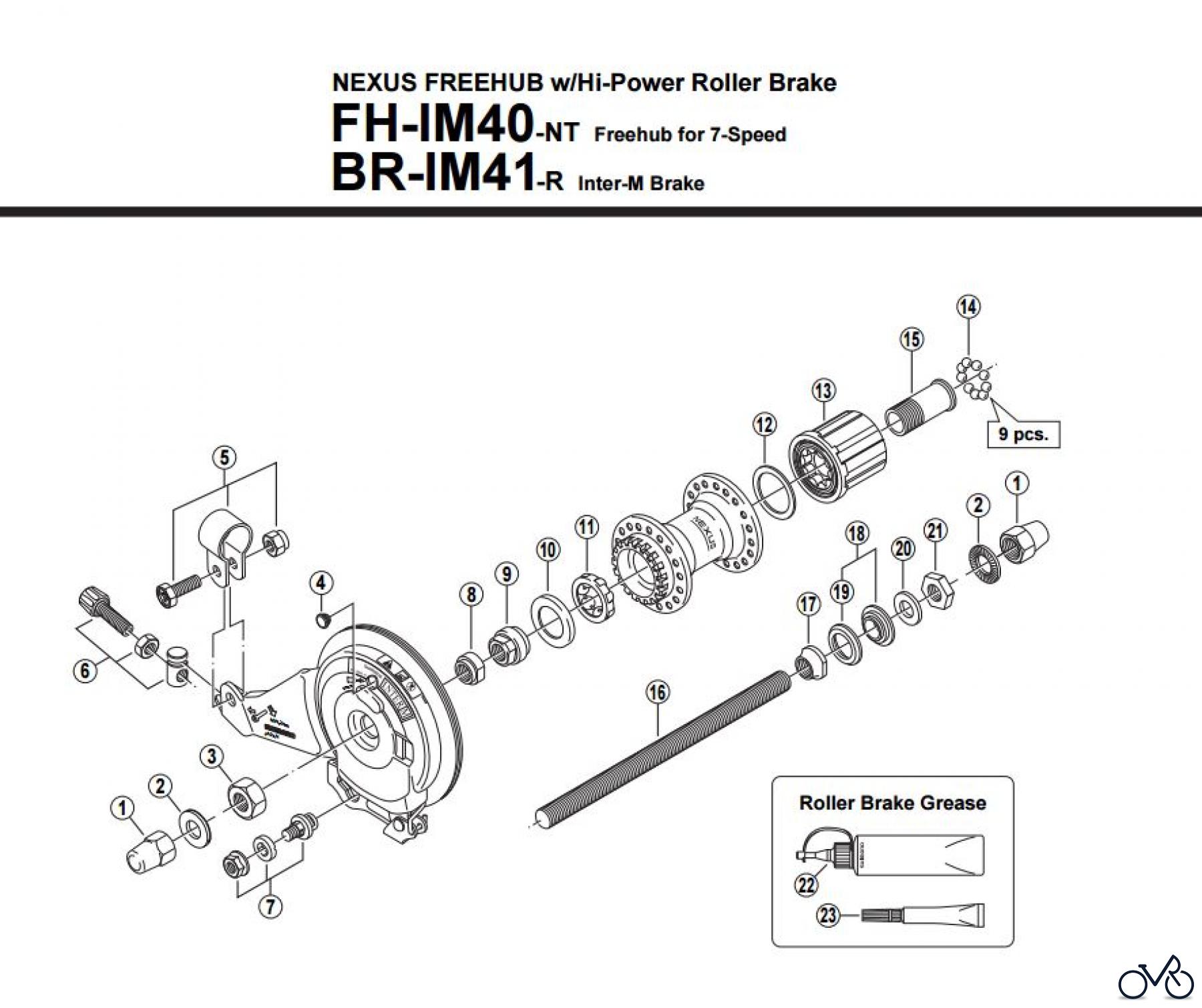

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-IM40- BRIM41 -1606C NEXUS Kassettennabe w/Hi-Power Roller Brake 7-fach. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
01 Y-31414200Cap Nut (M10) Y31414200
02 Y-22006040Washer (3.2 mm) Y22006040
03 Y-75V13030Brake Unit Fixing Nut (8.2 mm) Y75V13030
04 Shimano Grease Hole CapY-75F11000Grease Hole Cap Y75F11000
05 Y-75M98050Brake Arm Clip Unit ( 15 mm) Y75M98050
05 Y-33F98090Brake Arm Clip Unit (5/8") Y33F98090
05 Y-75M98060Brake Arm Clip Unit (11/16") Y75M98060
05 Y-33F98100Brake Arm Clip Unit (3/4") Y33F98100
06 Y-75P98120Brake Cable Adjusting Bolt Unit (Standard/Black) Y75P98120
06 Shimano Brake Cable Adjusting Bolt Unit (DX spec./Silver)Y-75P98080Brake Cable Adjusting Bolt Unit (DX spec./Silver) Y75P98080
07 Shimano Inner Cable Fixing Bolt Unit (Standard/Black)Y-75P98100Inner Cable Fixing Bolt Unit (Standard/Black) Y75P98100
07 Y-75M98070Inner Cable Fixing Bolt Unit (DX spec./Silver) Y75M98070
08 Y-31Z0601RLock Nut for Left Hand Cone (M10) Y31Z0601R
09 Shimano Left Hand Cone (M10)Y-31Z05010Left Hand Cone (M10) Y31Z05010
10 Y-31Z07000Left Hand Dust Cap Y31Z07000
11 Shimano Ball Retainer (1/4" x 7)Y-32190220Ball Retainer (1/4" x 7) Y32190220
12 Y-37504000Freewheel Body Washer Y37504000
13 Y-3AP98020Complete Freewheel Body w/Right Hand Dust Cap Y3AP98020
14 Shimano Steel Ball (1/4") 18 pcs.Y-00091310Steel Ball (1/4") 18 pcs. Y00091310
15 Shimano Body Fixing BoltY-3BL03000Body Fixing Bolt Y3BL03000
16 Y-30J06400Hub Axle (M10 x 180 mm) Y30J06400
17 Y-22008510Right Hand Cone (M10 x 9 mm) Y22008510
18 Y-3AP98030Right Hand Axle Spacer Unit Y3AP98030
19 Shimano Seal RingY-37710000Seal Ring Y37710000
20 Shimano Right Hand Washer (1.5 mm)Y-30107100Right Hand Washer (1.5 mm) Y30107100
21 Y-38501010Lock Nut (4.5 mm) Y38501010
22 Y-04120400Roller Brake Grease (Net. 100g) Y04120400
23 Y-04140020Roller Brake Grease (Net. 10g) Y04140020
