Shimano SL-R783 _3221 SHIMANO Rapidfire Lever for Triple

SL-R783 _3221 SHIMANO Rapidfire Lever for Triple SL Shift Lever - Schalthebel

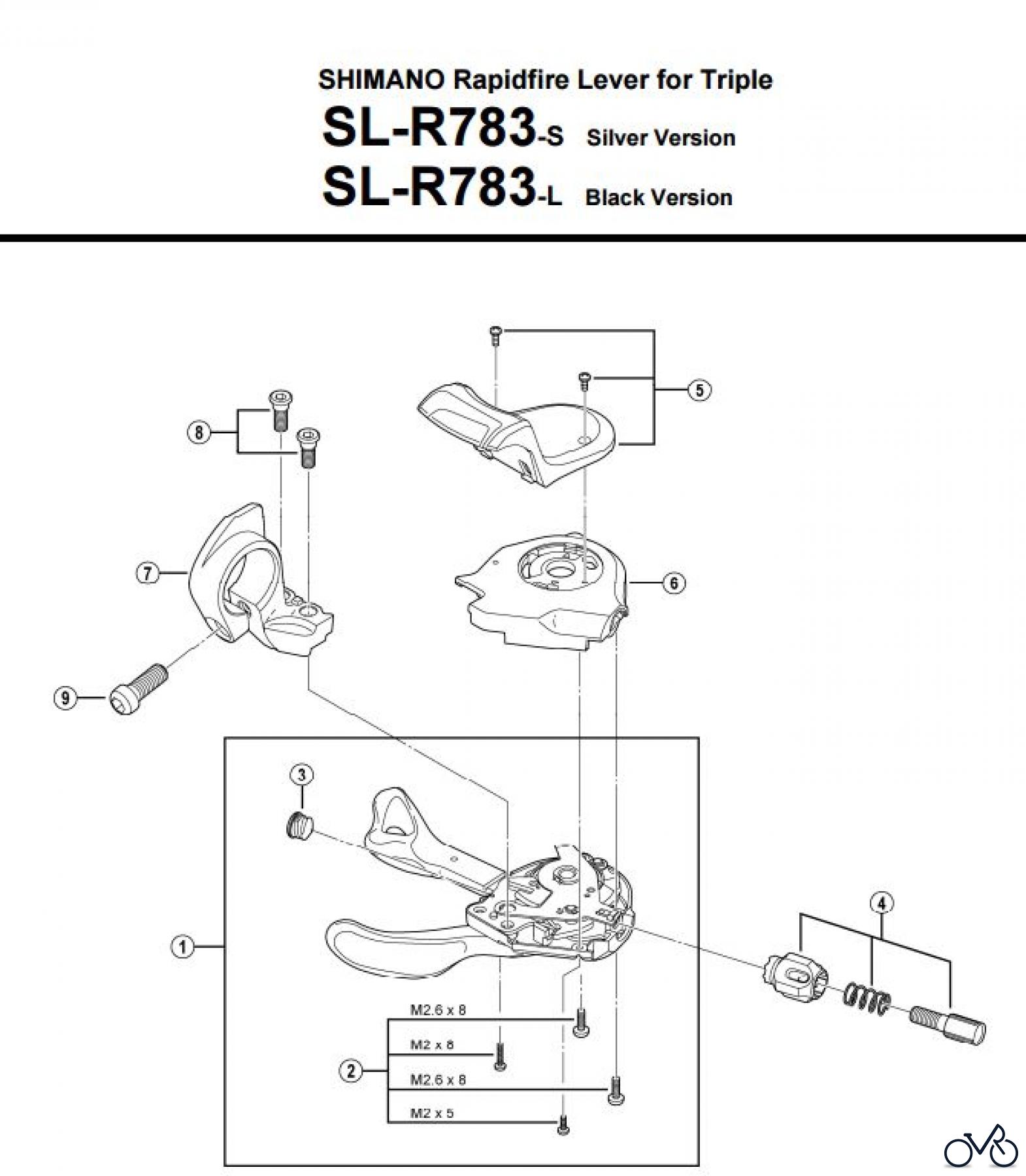

Here you will find the spare parts drawing for Shimano SL Shift Lever - Schalthebel SL-R783 _3221 SHIMANO Rapidfire Lever for Triple. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y6V098010	Shifting Lever Unit Y6V098010
02	Y6US98020	Base Cover Fixing Screw Unit Y6US98020
03	Y6CD33000	Inner Hole Cap Y6CD33000
04	Y6T898020	Cable Adjustting Bolt Unit Y6T898020
05	Y6V098020	Indicator Unit for SL-R783-S Y6V098020
05	Y6V098030	Indicator Unit for SL-R783-L Y6V098030
06	Y6US52100	Base Cover for SL-R783-S Y6US52100
06	Y6US52110	Base Cover for SL-R783-L Y6US52110
07	Y6NX51700	Bracket for SL-R783-S Y6NX51700
07	Y6NX51710	Bracket for SL-R783-L Y6NX51710
08	Y6MP98080	SL Fixing Bolt (M4) 2pcs Y6MP98080
09	Y8U914000	Clamp Bolt (M6 x 15) Y8U914000
